Features

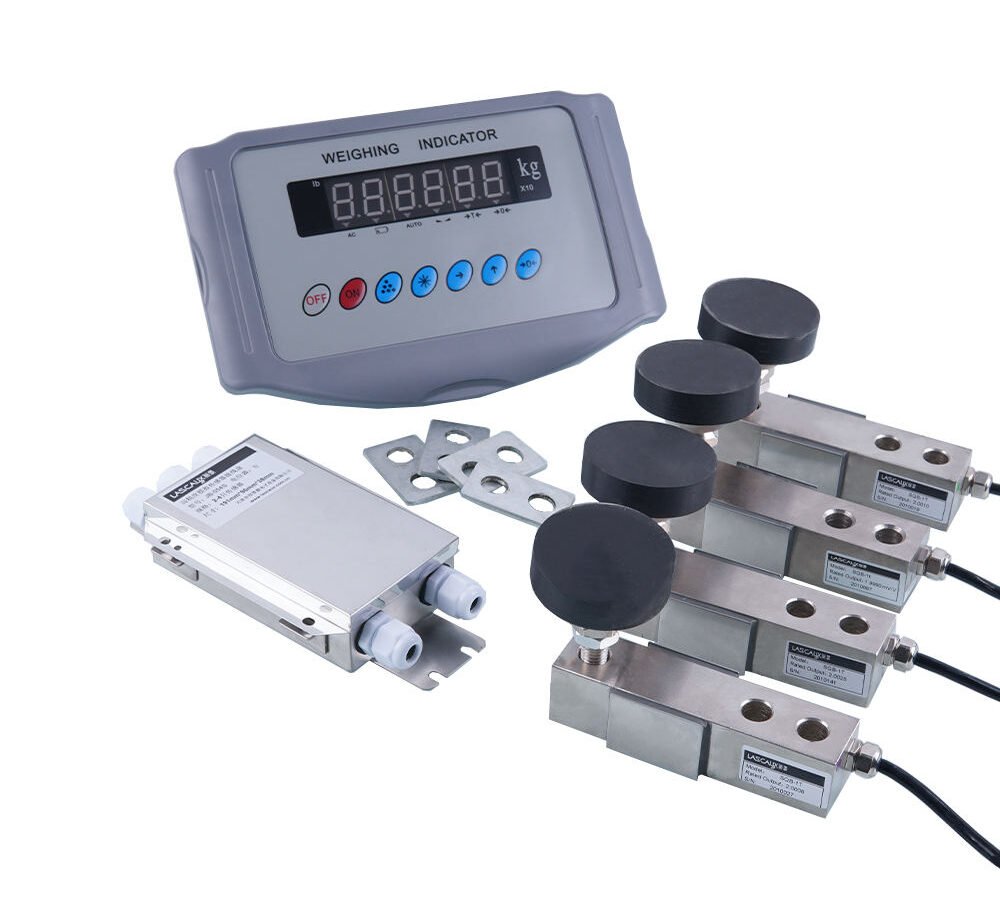

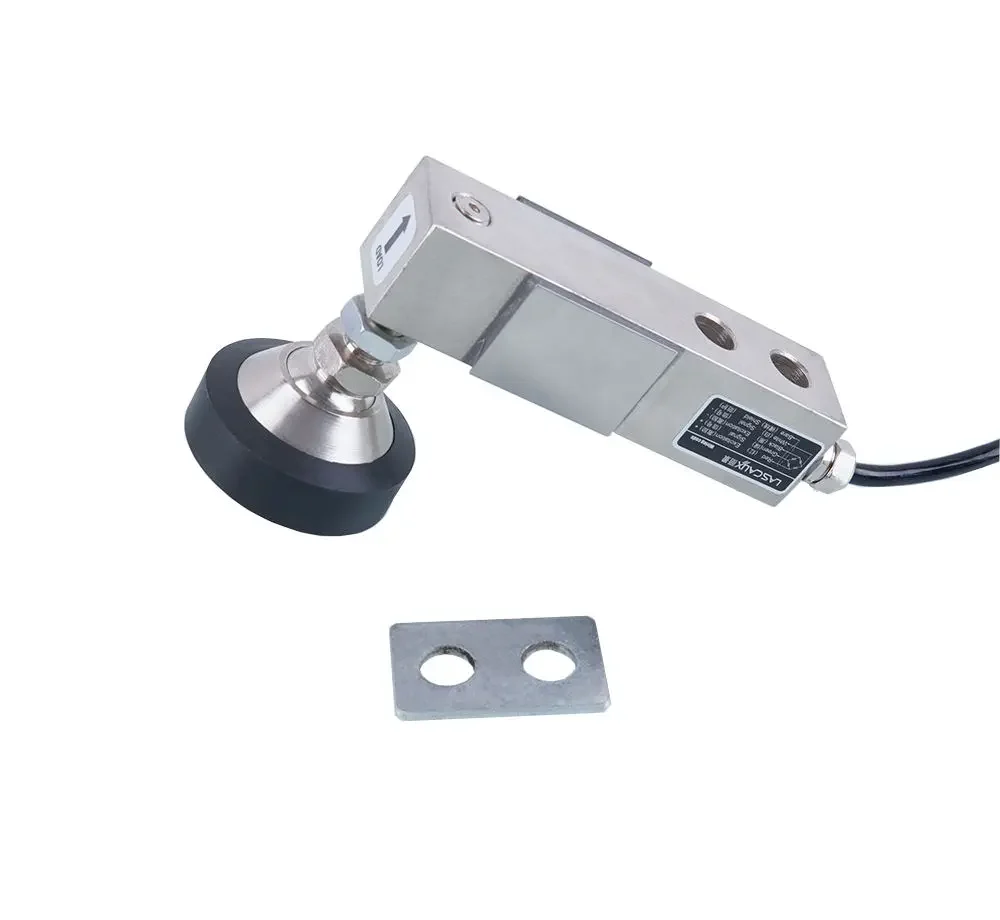

- The SQB kit shear beam load cell, with capacities of 100 kg to 5 t, is made of high-quality alloy steel with a nickel-plated surface, features IP68 protection, and is suitable for hopper and tank weighing, belt scales, livestock scales, and other critical weighing and control applications in the chemical, food, and pharmaceutical industries.

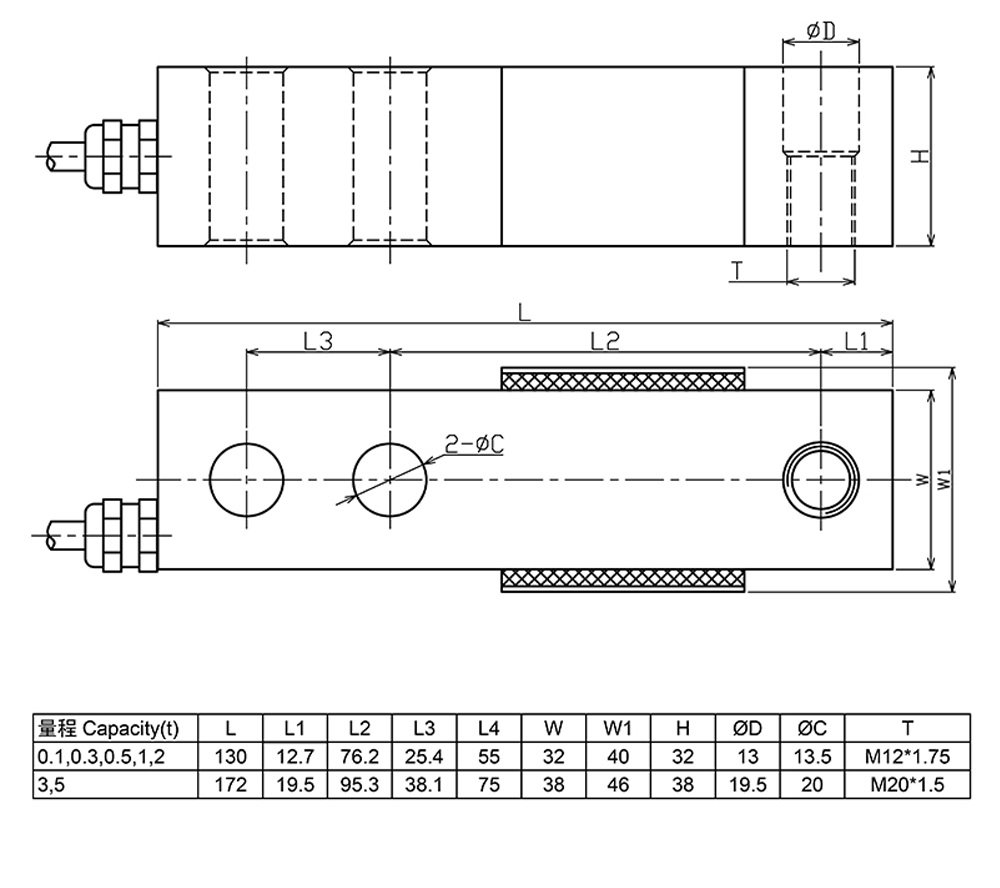

Dimensions
Specifications
Rated Output | mV/V | 2.0±0.0050 |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±1 |
Non-linearity | %R.O. | ±0.02 |
Hysteresis | %R.O. | ±0.02 |
Repeatability | %R.O. | ±0.02 |
Creep after 30 minutes | %R.O. | ±0.02 |
Compensated Temp. Range | ℃ | -10~+40 |
Operating Temp. Range | ℃ | -20~+70 |
Recommended Excitation Voltage | VDC | 5-12 |
Maximum Excitation Voltage | VDC | 15 |
Input impedance | Ω | 380±10 |
Output impedance | Ω | 350±5 |
Insulation resistance | MΩ | ≥5000（50VDC） |
Safe Overload | %R.C. | 150 |
Ultimate Overload | %R.C. | 300 |
Material | Stainless Steel | |
Degree of protection | IP68 | |
The length of the cable | m | 0.5-2t:3m 3t-5t:5m |
Wiring code | Ex: Ex: | Red：＋ Black：– Green：＋ White：– |
