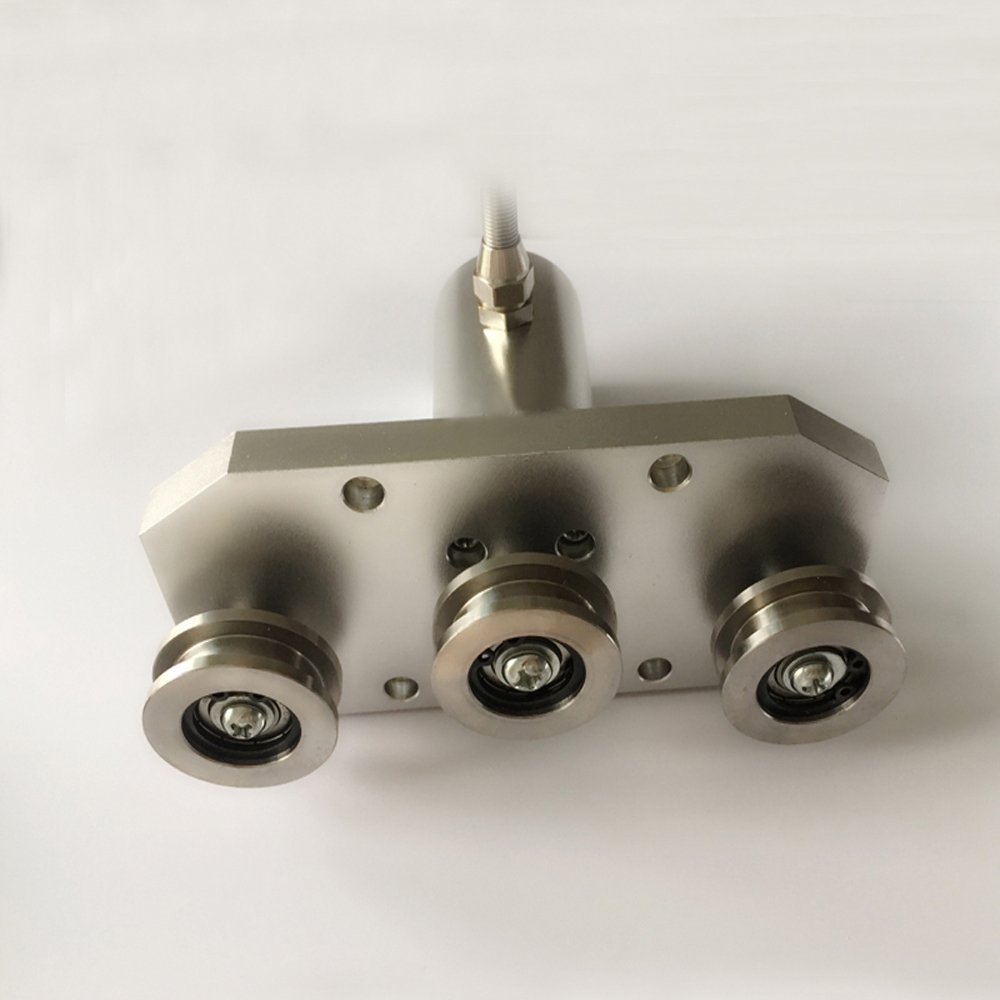

TZL803 Three pulley tension sensor
INTRODUCTION:
HT SENSOR / TZL803 / Three pulley tension sensor
Product description:
Capacity ：5~500 N
Material: stainless steel
Protection Class: IP66
High precision tension measuring sensor.
Application: Tension measurement of various optical fibers, yarns, chemical fibers, wires, wires, cables, tapes, and steel strips, used in electronics, chemical, textile, paper, machinery, etc.
Feature
- Easy to install and replace the bearing and tension roller.
- Built-in new mechanical 10 times anti-overload protection.
- Minor temperature drift, good non-linearity and repeatability.
- Strong connections provide long-term reliability.
- Drilling and tapping are available.
- Can eliminate the interference of other forces, only measure tension to improve accuracy.
Feature
- Easy to install, high measurement accuracy.
- Low tension conditions can also be accurately measured.
- Built-in new mechanical 10 times anti-overload protection.
- Minor temperature drift, good linear error and repeatability error.
- Small size, little space required for installation.
Feature
- Easy installation, Small size, small installation space.
- Precise, the detection signal is not affected by the coils’ position on the roller.
- Accurate measurement can be performed under low tension.
- Built-in 10 times anti-overload protection structure.
- Small temperature drift with good linearity and repeatability errors.
Feature
- Built-in self-aligning bearing (two ends are not in the samesurface) which can compensate for bearing expansion and misalignment.
- Built-in new mechanical 10 times anti-overload protection.
- Minor temperature drift, god non-linearity and repeatability.
- Small size, little space required for installation.
Product description:
Capacity ：1,5,10,15,20,25,30,50 N
Material: stainless steel
Protection Class: IP65
High accuracy, stable and reliable
Application: Suitable for tension measurement of various optical fibers, yarns, chemical fibers, wires, wires, cables, tapes, and steel strips. Widely used in electronics, chemical, textile, paper, machinery and other fields.
