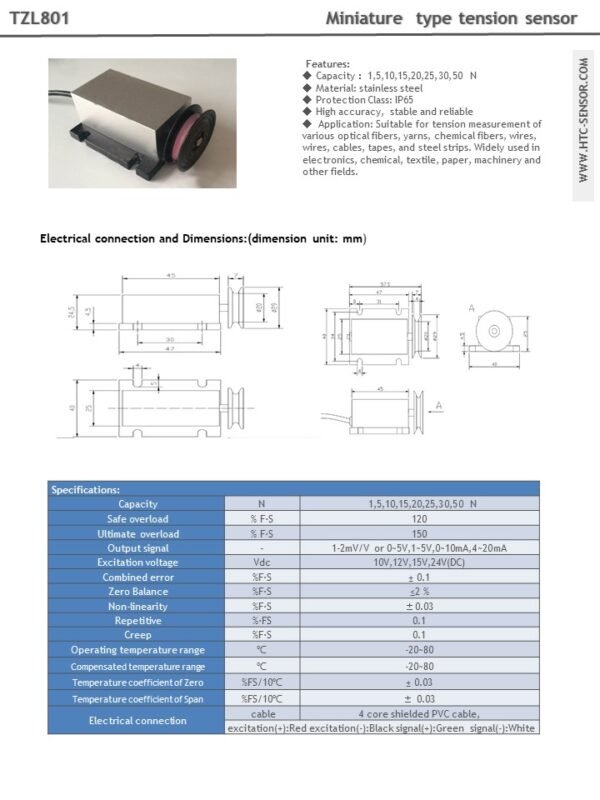

TZL801 Miniature type tension sensor
INTRODUCTION:
HT SENSOR / TZL801 / Miniature type tension sensor
Product description:
Capacity ：1,5,10,15,20,25,30,50 N
Material: stainless steel
Protection Class: IP65
High accuracy, stable and reliable
Application: Suitable for tension measurement of various optical fibers, yarns, chemical fibers, wires, wires, cables, tapes, and steel strips. Widely used in electronics, chemical, textile, paper, machinery and other fields.
| Model Number: | BHA | Place of Origin: | Zhejiang, China |
| Brand Name: | santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 5t,6t,7.5t,8t,10t,12t,18t,20t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.05%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ulitimate Overload: | 200%F.S |
This sensor is easy to install and compatible with various pulleys. With stable signal output and high-quality stainless steel construction, it is ideal for measuring the tension of wires such as optical fibers and cables.
| Model Number: | BHG | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 3t,5t,10t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.3%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ultimate Overload: | 200%F.S |
The TR 3-roller tension meter, designed for wires and strips, is made of alloy steel and features IP65-rated dustproof and waterproof protection. It supports a measuring capacity ranging from 0.1 kg to 50 kg.
It adopts a 3-roller structure, with selectable roller materials such as hard-anodized aluminum alloy, chrome-plated alloy steel, plastic, or ceramic, providing high measurement accuracy. The compact design allows easy installation and offers excellent stability. It outputs a linear voltage signal of 1.5 mV/V, which can be connected to a transmitter for 0–10 V or 4–20 mA output. The sensor is suitable for various optical fibers, yarns, and chemical fibers. Ideal for tension measurement, it is widely used in electronics, chemical, textile, paper, machinery, and industrial automation measurement and control applications.
The TK tension sensor has a measurement range of 100 kg to 1 ton and can be custom-made to meet specific requirements. It offers high measurement accuracy, excellent repeatability, durability, corrosion resistance, dustproofing, and outstanding stability. Constructed from alloy steel with a nickel-plated surface, it can be used as a standalone sensor or connected to a transmitter to provide 0–10 V or 4–20 mA output for continuous online tension monitoring of cables, fibers, wires, and metal strands.
The RL cable tension sensor (high-capacity custom tension sensor) is made of aluminum and features IP65-rated dustproof and waterproof protection. It supports a measuring capacity ranging from 3 tons to 5 tons.
The RL tension detector adopts a robust and compact 3-roller design. Its measurement range extends from 5 tons to 30 tons, enabling online tension monitoring of various products such as cables and anchor cables. It offers excellent measurement repeatability, high precision, and a wide range of applications. The sensor is easy to install and allows real-time online measurement of both dynamic and static tension without affecting normal cable operation. The central roller is detachable for convenient installation and handling. The RL series supports a maximum tension measurement of up to 500 tons and rope diameters up to 115 mm.
50,100,300,500kg Or Customized Spoke Type Load Cell FA129B is a model of our brand FIBOS FA1-Series, it belongs to FA129. Spoke Type Load Cell FA129B can be used to measure load 50kg,100kg,300kg and 500kg or customized capacity, its Creep(30min) and Non-linearity both ≤0.02%F.S. or can be customized, its Hysteresis and Repeatability both ≤0.018%F.S. or can also be customized.
Model No.: BHB
Brand: santwell
place of origin: China
Pattern: Bridge Type
Transform Type: Resistance Strain
Out-Wire: 4-Wire
Output Signal Type: Analog Type
Material: Metal
IP Rating: Ip67
Certification: Ce
Customized: Non-Customized
Rated Load: 10t
Supply Ability & Additional Information
Packaging: pcs/carton
Productivity: 1000pcs/month
Transportation: Ocean,Land,Air
Place of Origin: Zhengjiang,China
Supply Ability: 1000pcs/month
| Model Number: | BHF | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | santwell |
| Usage: | crane scale | Theory: | resistant strain |
| Output: | 2.0mv/V | Description: | load cell |
| Rated Load: | 5t,6t,7.5t,8t,10t,12t,18t,20t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.05%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ulitimate Overload: | 200%F.S |
This product is easy to install and reliably measures the tension of various steel cables, making it widely used in cranes and industrial applications.
This product reliably measures the tension of various steel cables and is easy to install, making it widely used for long-term monitoring in industrial settings.
The TS tension load cell sensor for fibers and wires (3-roller type tension detector) is made of aluminum and supports a measuring capacity ranging from 0.5 kg to 3 kg.
The TS tension sensor operates on resistive strain gauge technology, with a measurement range of 0.5 kg to 3 kg. Its compact design saves installation space. The 3-roller measurement structure enables real-time monitoring of dynamic tension, and parallel installation allows the creation of tension detection arrays. It is used for continuous online tension measurement of fibers, wires, metal strands, and similar products.
