This product is made of high-quality aluminum alloy and offers excellent signal stability. It can be customized to fit various specifications in wire production equipment and is used for dynamic tension measurement.

The TR 3-roller tension meter, designed for wires and strips, is made of alloy steel and features IP65-rated dustproof and waterproof protection. It supports a measuring capacity ranging from 0.1 kg to 50 kg.

It adopts a 3-roller structure, with selectable roller materials such as hard-anodized aluminum alloy, chrome-plated alloy steel, plastic, or ceramic, providing high measurement accuracy. The compact design allows easy installation and offers excellent stability. It outputs a linear voltage signal of 1.5 mV/V, which can be connected to a transmitter for 0–10 V or 4–20 mA output. The sensor is suitable for various optical fibers, yarns, and chemical fibers. Ideal for tension measurement, it is widely used in electronics, chemical, textile, paper, machinery, and industrial automation measurement and control applications.

This product is made of high-quality stainless steel, offering excellent signal stability and interference resistance. It can be customized to match pulley specifications on various wire production lines, making it ideal for dynamic tension measurement.

This sensor features a movable shaft structure and self-aligning bearings to compensate for installation errors, and precisely and stably measures tension using a semiconductor strain gauge-based full-bridge circuit.

The RL cable tension sensor (high-capacity custom tension sensor) is made of aluminum and features IP65-rated dustproof and waterproof protection. It supports a measuring capacity ranging from 3 tons to 5 tons.

The RL tension detector adopts a robust and compact 3-roller design. Its measurement range extends from 5 tons to 30 tons, enabling online tension monitoring of various products such as cables and anchor cables. It offers excellent measurement repeatability, high precision, and a wide range of applications. The sensor is easy to install and allows real-time online measurement of both dynamic and static tension without affecting normal cable operation. The central roller is detachable for convenient installation and handling. The RL series supports a maximum tension measurement of up to 500 tons and rope diameters up to 115 mm.

The TK tension sensor has a measurement range of 100 kg to 1 ton and can be custom-made to meet specific requirements. It offers high measurement accuracy, excellent repeatability, durability, corrosion resistance, dustproofing, and outstanding stability. Constructed from alloy steel with a nickel-plated surface, it can be used as a standalone sensor or connected to a transmitter to provide 0–10 V or 4–20 mA output for continuous online tension monitoring of cables, fibers, wires, and metal strands.

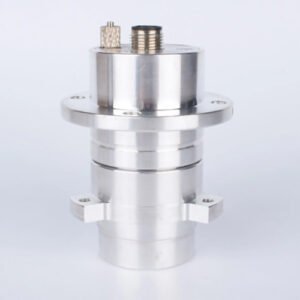

5,10,30,50,100,300,500,1000,3000,5000,10000,30000N Or Customized Tension Force Sensor FA922 is a model of our brand FIBOS FA9-Series, Tension Force Sensor FA922 can be used to measure tension force ranges from 5N,10N,30N,50N,100N,300N,500N,1000N,3000N,5000N,10000N and 30000N or customized capacity, its Weight is 0.22kg or can be customized.

Suitable for measuring tension and long-term monitoring of steel wire ropes, this high-reliability sensor is easy to install in various industrial environments and is made from high-quality materials.

.

Model No.: BHB

Brand: santwell

place of origin: China

Pattern: Bridge Type

Transform Type: Resistance Strain

Out-Wire: 4-Wire

Output Signal Type: Analog Type

Material: Metal

IP Rating: Ip67

Certification: Ce

Customized: Non-Customized

Rated Load: 10t

Supply Ability & Additional Information

Packaging: pcs/carton

Productivity: 1000pcs/month

Transportation: Ocean,Land,Air

Place of Origin: Zhengjiang,China

Supply Ability: 1000pcs/month
