Product description:
Capacity ：0~100kg
Stainless Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly, tank, material mechanics testing machine and other fields.
Product description:
Capacity ：500~5000kg
Stainless Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly, tank, material mechanics testing machine and other fields.
The sensor elastomer is made of 17-4PH stainless steel, sealed with adhesive, and nickel-plated on the surface, providing excellent waterproof and corrosion-resistant performance with IP67 and IP68 protection ratings.
Product description:
Capacity ：0~50kg
Stainless Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly, tank, material mechanics testing machine and other fields.
Model: MLC162
Category: Bridge load cell
Range: 2,3,5,10,15,20,30,40,50,100t
Dimensions: ± 58 * 128mm, ± 68 * 128mm
Material: alloy steel, stainless steel
Characteristic: safety limiter load cell, overload load cell, pin load cell, pin force sensor
Product description:
Capacity ： 10~100kg,200kg,2000kg
Material: alloy steel
Type: spoke type.
Miniature feature and low profit, customizable.
Defend grade: IP66.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
Defend grade: IP66.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
Model: MLC407
Category: Compression Load Cell
Load range:600ton
Dimension:256*225mm
Material: alloy steel
Cable: Φ6mm*12m
Characteristic: big capacity load cell, compression force load cell, hydraulic equipment force load cell
Model: MLC401E
Category: Column weighing sensor
Measurement range: 20t, 25t, 30t, 40t, 50t, 60t, 70t, 100t, 150t, 200t, 300t, 400t
Size: 76 * 82.6mm; 125 * 142 millimeters; 223 * 250mm
Materials: alloy steel, stainless steel
Application: Automobile scale, electronic floor scale, hydraulic press, hydraulic press, dynamometer, large-scale weighing sensor
Model: MLC408
Category: Compression Load Cell
Range: 5t,10t,15t,20t
Dimension: 125*215mm
Material: alloy steel, stainless steel
Characteristic: compression force load cell, hydraulic equipment force load cell. tension force sensor

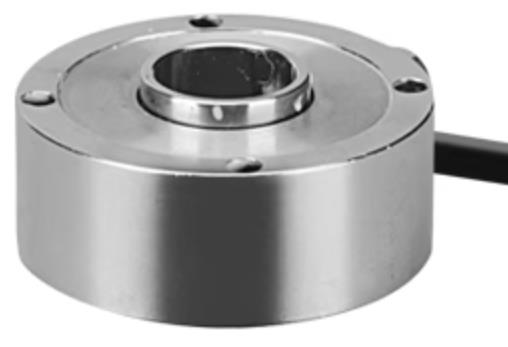

The Model D Donut Shaped Load Cell features a smooth thru-hole design often ideal for applications which require the load structure to pass directly through the cell. Such applications include bolt force measurements, clamping forces, and monitoring overloads. Load ranges as low as 150 grams and as great as 30,000 pounds can be measured within a maximum full scale non-linearity and hysteresis of ±0.5 % F.S., respectively. These models are used in compression applications and are available in multiple hole and frame sizes. For optimum performance, these cells must be mounted between load surfaces which are flat and parallel. The Model D miniature load cell is designed to have a minimum thickness.
Product description:
Capacity ： 50kg~5Ton
Material: alloy steel
Type: force type
Defend grade: IP67.
Application: Suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
Model: MLC406
Category: Compression Load Cell
Load range: 200,300,500,1000ton
Dimension: 259*210mm
Material: alloy steel, stainless steel
Application: big capacity load cell, compression force sensor, Hydraulic equipment force sensor, column load cell
