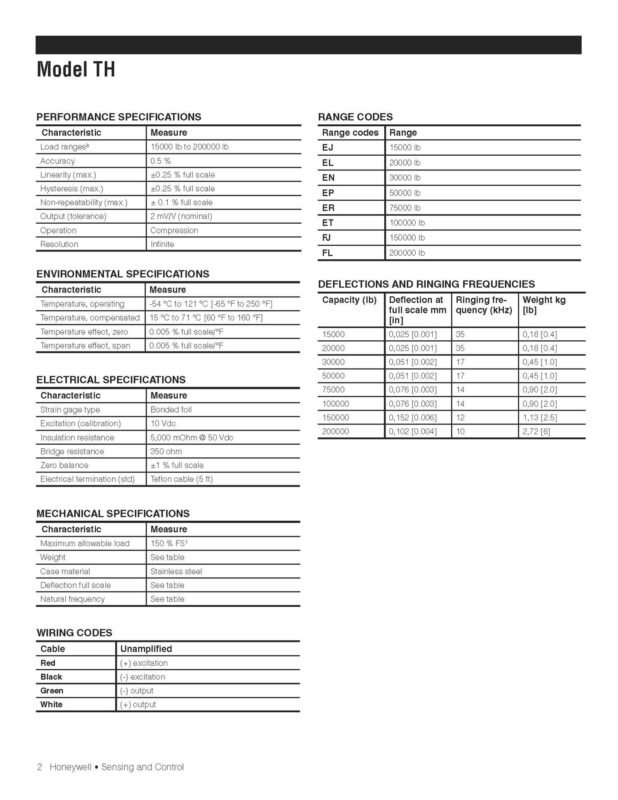

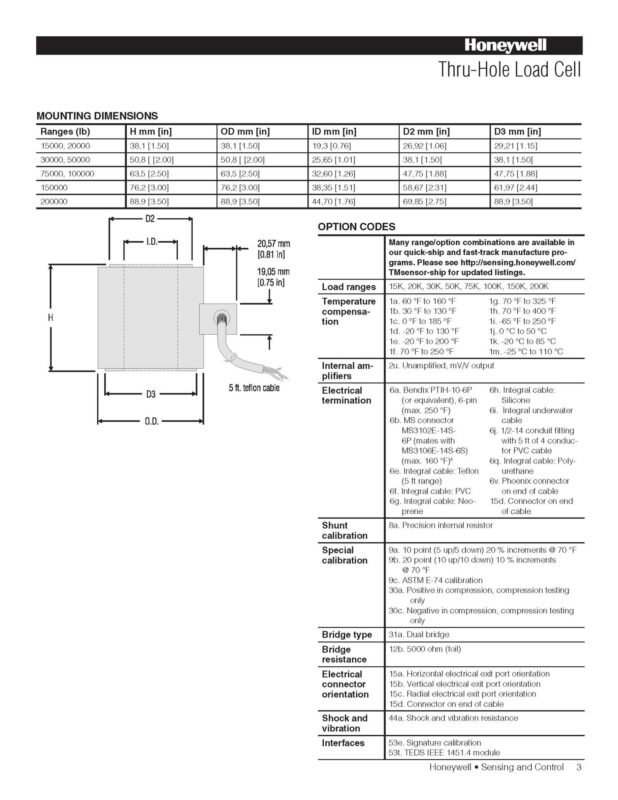

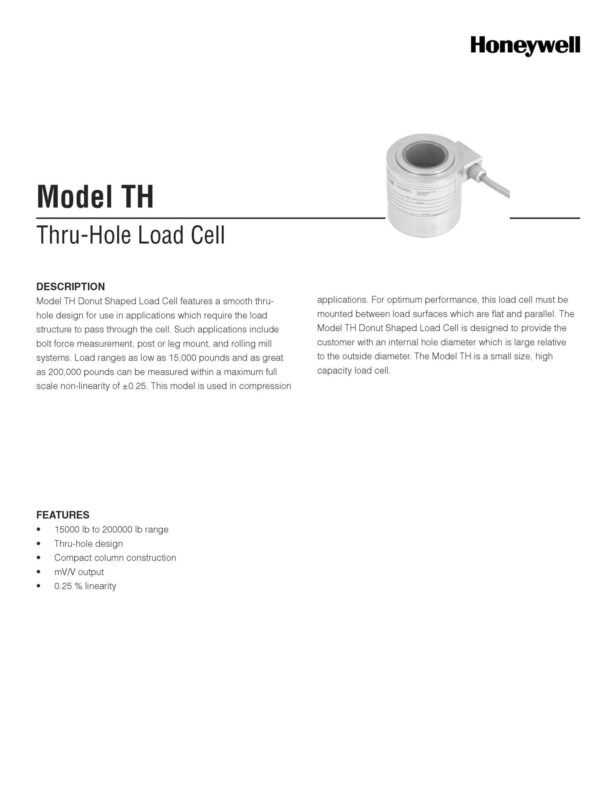

Honeywell Model TH Thru-Hole Load Cell
Honeywell / Model TH / Thru-Hole Load Cell
Model TH Donut Shaped Load Cell features a smooth thru-hole design for use in applications which require the load structure to pass through the cell. Such applications include bolt force measurement, post or leg mount, and rolling mill systems. Load ranges as low as 15,000 pounds and as great as 200,000 pounds can be measured within a maximum full scale non-linearity of ±0.25. This model is used in compression applications. For optimum performance, this load cell must be mounted between load surfaces which are flat and parallel. The Model TH Donut Shaped Load Cell is designed to provide the customer with an internal hole diameter which is large relative to the outside diameter. The Model TH is a small size, high capacity load cell.
High stability and reliability.
Applicable to: measurement and control system of testing machine and other force value.
Product description:
Capacity ：0.5~200KN
Stainless steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly,tank, material mechanics testing machine
Product description:
Capacity ： 10~100kg,200kg,2000kg
Material: alloy steel
Type: spoke type.
Miniature feature and low profit, customizable.
Defend grade: IP66.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
Defend grade: IP66.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
Models MBH Minigram Beam Load Cells are engineered to measure very low bending forces and still achieve an impressive 0.1% full scale non-linearity and hysteresis. Built-in overload stops are incorporated to provide additional reliability. Miniature dimensions allow easy unit integration into existing systems. Model MBH uses foil gages and is available for load ranges from 150 grams to 10 pounds.
The ZMMC4 is donut type force sensor which is available in a wide range of standard capacities from 5kg through to 2000kg. The ZMMC4 is configured for compression force measurement acting on cylinders, bolts or shafts. A range of internal through-hole diameters is available. The outer and inner diameter can be customized based on client’s requirements.
Features:
Capacity 5kg-2000kg
Low profile and compact size
Through-hole
Stainless steel construction
Optional features:
Customizable dimensions
The Model LC digital force indicator is a highly portable force measurement device. With its 9 V battery supply and compact size the indicator can easily be carried to remote locations to perform force measurement calibrations. The unit can measure compression forces up to 50,000 lbs.
The peak capture feature allows the highest force reading taken to be displayed with the push of a button. The remote location of the load sensor minimizes the chance of damage to the electronic body of the gauge. The stainless steel construction of the sensor and the indicator makes them often resistant to the occasional mishandling than can occur in the field. Optional handles are available for the load cell and gauge.
Each unit has a membrane face with raised buttons and tactile feedback for setup and operation. The high, low, and clear buttons are easily accessible on this front membrane. Zero adjustment and zero offset/tare functions are standard on each unit. Calibration and setup parameters are stored on a memory chip to protect from loss even when power is interrupted. Unauthorized set ups and calibrations are also blocked with internal security. Various combinations of the front panel buttons can be de-activated.
The X-Y force sensor is constructed of two strain gage bridges, mounted at 90º, isolated by a flexure system. The complete two-component system, including flexures, is machined from one specially prepared metal billet to provide unusual structure strength and to minimize crosstalk between the two transducers. This unique sensor has excellent linearity characteristics and maximum structure life.
Product description:
Capacity ：500~5000kg
Stainless Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly, tank, material mechanics testing machine and other fields.
