Honeywell Model RGH Rod End In-line Compression/Tension Load Cell Model RGH
Honeywell / Model RGH / Rod End In-line Compression/Tension Load Cell Model RGH

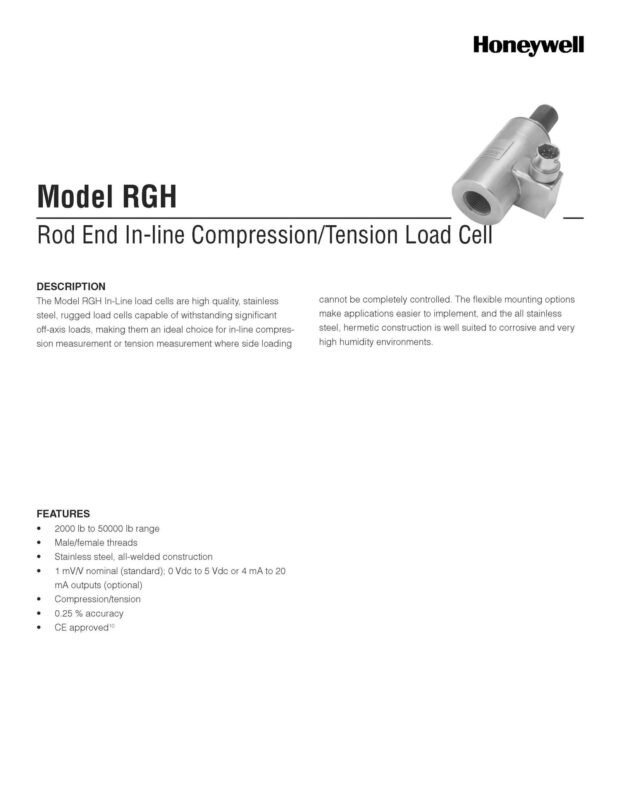

The Model RGH In-Line load cells are high quality, stainless steel, rugged load cells capable of withstanding significant off-axis loads, making them an ideal choice for in-line compression measurement or tension measurement where side loading cannot be completely controlled. The flexible mounting options make applications easier to implement, and the all stainless steel, hermetic construction is well suited to corrosive and very high humidity environments.
50kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA401 belongs to FA411 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA401 can be used to measure load 50kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.05%F.S., and its Hysteresis ≤0.05%F.S..
Diameter 13mm 50-1000N Miniature Tension Compression Force Sensor FA201A is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor FA201A belongs to FA201, it can be used to measure tension and compression force 50N,100N,200N,500N,1000N and 2000N or customized capacity, its Zero Balance range is ±0.2mV/V.
10-150kN Stainless Steel Tension Compression Force Sensor FA403 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA403 can be used to measure tension and compression force 10kN,20kN,50kN,75kN,100kN and 150kN capacity, its Rated output range is 2.0±10%mV/V, and its Zero Balance range is ±0.05mV/V.
1,3,5,10,30,50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000N Or Customized Tension Compression Force Sensor FA904AB belongs to FA904 which belongs to Tension Compression Force Sensor category of our brand FIBOS FA9-Series, FA904AB can be used to measure tension force ranges from 1N,3N,5N,10N,30N,50N,100N,300N,500N,1000N,3000N,5000N,10000N,30000N,50000N,100000N up to 300000N or customized capacity.
500N 1000N 1500N 2500N 5000N Brake Pressure Measuring Tension Compression Force Sensor FA901 is a model of our brand FIBOS FA9-Series, Tension Compression Force Sensor FA901 can be used to measure force ranges from 500N,1000N,1500N,2500N up to 5000N capacity, its Rated output range is 1.5±10%mV/V, its Zero Balance range is ±0.02mV/V.
1-20kg Stainless steel Tension Compression Force Sensor FA401 is a model of Tension Compression Force Sensor, it belongs to our brand FIBOS FA4-Series, FA401 can be used to measure load 1kg, 2kg, 5kg, 10kg and 20kg capacity, its Creep(30min), Non-linearity, Hysteresis and Repeatability all ≤0.1%F.S., its Cable size is ⌀2x3000mm.
| Model Number: | BHC | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 3-50t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ultimate Overload: | 200%F.S |
5-100kN Stainless Steel Tension Compression Force Sensor FA411 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA411 can be used to measure tension and compression force 5kN,10kN,20kN,50kN and 100kN capacity, its Rated output range is 1.0±10%mV/V, its Creep(30min),Non-linearity and Hysteresis all ≤0.2%F.S., its Repeatability ≤0.1%F.S..
10-500N Stainless Steel Tension Compression Force Sensor FA306 is a model of our brand FIBOS FA3-Series, Tension Compression Force Sensor FA306 can be used to measure tension and compression force 10N,20N,50N,100N,150N,200N and 500N capacity, its Rated output range is 2.0±10%mV/V, and its Zero Balance range is ±2%F.S..
50,100,200,300,500kg Or Customized Tension Compression Force Sensor FA130A belongs to FA130 which is in Tension Compression Force Sensor category in our brand FIBOS FA1-Series, FA130A can be used to measure tension and compression force ranges from 50kg,100kg,200kg,300kg up to 500kg or customized capacity.
| Model Number: | BHA | Place of Origin: | Zhejiang, China |
| Brand Name: | santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 5t,6t,7.5t,8t,10t,12t,18t,20t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.05%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ulitimate Overload: | 200%F.S |
20-2000N Stainless Steel Tension Compression Force Sensor FA404 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA404 can be used to measure compression and tension force 20N,50N,100N,200N,500N,1000N and 2000N capacity, its Rated output range is 2.0±1%mV/V, and its Zero Balance range is ±2%F.S..
