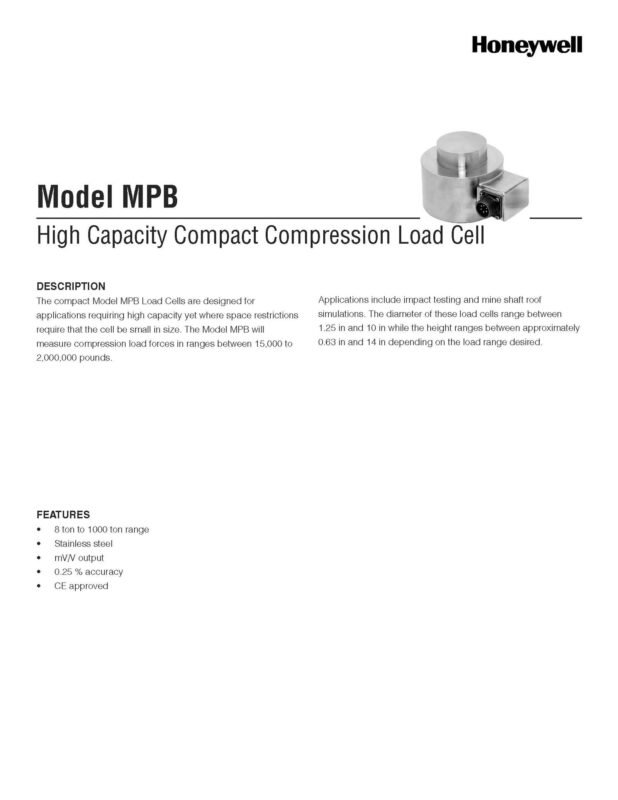

Honeywell Model MPB High Capacity Compact Compression Load Cell
Honeywell / Model MPB / High Capacity Compact Compression Load Cell
The compact Model MPB Load Cells are designed for applications requiring high capacity yet where space restrictions require that the cell be small in size. The Model MPB will measure compression load forces in ranges between 15,000 to 2,000,000 pounds.
Applications include impact testing and mine shaft roof simulations. The diameter of these load cells range between 1.25 in and 10 in while the height ranges between approximately 0.63 in and 14 in depending on the load range desired.
This sensor is based on advanced alloy steel and features narrow space installation, high precision stability, and customization possibilities, making it suitable for a variety of industrial fields including automotive, medical, robotics, and automation.
100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell FA302C is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302C can be used to measure load ranges from 100kg up to 10000kg or customized capacity, its Weight is 0.75kg or can be customized.
5,10,20,50,100,200N Or Customized S type Load Cell FA301 is a model of our brand FIBOS FA3-Series, S type Load Cell FA301 can be used to measure force 5N,10N,20N,50N,100N,200N or customized capacity, its material we use Stainless steel, we can also customized material.
1,3,5,10,30,50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000N Or Customized Tension Compression Force Sensor FA904AB belongs to FA904 which belongs to Tension Compression Force Sensor category of our brand FIBOS FA9-Series, FA904AB can be used to measure tension force ranges from 1N,3N,5N,10N,30N,50N,100N,300N,500N,1000N,3000N,5000N,10000N,30000N,50000N,100000N up to 300000N or customized capacity.
0.1-30t ≤0.05%F.S. Alloy Steel Miniature Industrial Automation Applied Spoke Type Load Cell FA120B is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA120B can be used to measure load 0.1t,0.2t,1t,2t,3t,5t,10t,15t,20t and 30t capacity, its Non-linearity ≤0.05%F.S. and its Repeatability ≤0.03%F.S..
10,20,50,100kg Or Customized Tension Compression Force Sensor FA208 is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor can be used to measure tension and compression force 10kg,20kg,50kg and 100kg or can be customized, its Creep(30min) ≤0.015%F.S. or can be customized, its Non-linearity,Hysteresis and Repeatability all ≤0.016%F.S. or can also be customized.
| Model Number: | BHG | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 3t,5t,10t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.3%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ultimate Overload: | 200%F.S |
20-2000N Stainless Steel Tension Compression Force Sensor FA404 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA404 can be used to measure compression and tension force 20N,50N,100N,200N,500N,1000N and 2000N capacity, its Rated output range is 2.0±1%mV/V, and its Zero Balance range is ±2%F.S..
| Model Number: | BHA | Place of Origin: | Zhejiang, China |
| Brand Name: | santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 5t,6t,7.5t,8t,10t,12t,18t,20t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.05%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ulitimate Overload: | 200%F.S |
25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 is from S Beam Load Cell category of our brand FIBOS FA3-Series, FA307 can be used to measure load ranges from 25kg up to 500kg and ranges from 0.75t up to 10t capacity, its Non-linearity,Hysteresis and Repeatability all ≤0.03%F.S., its Creep(30min) ≤0.024%F.S..
50,100,200,300,500kg Or Customized Tension Compression Force Sensor FA130A belongs to FA130 which is in Tension Compression Force Sensor category in our brand FIBOS FA1-Series, FA130A can be used to measure tension and compression force ranges from 50kg,100kg,200kg,300kg up to 500kg or customized capacity.
1-20kg Stainless steel Tension Compression Force Sensor FA401 is a model of Tension Compression Force Sensor, it belongs to our brand FIBOS FA4-Series, FA401 can be used to measure load 1kg, 2kg, 5kg, 10kg and 20kg capacity, its Creep(30min), Non-linearity, Hysteresis and Repeatability all ≤0.1%F.S., its Cable size is ⌀2x3000mm.
