Models
FBS818
Features
Readability：1/90000
Com.Output specification：RS232/RS485
Accept sensor：-3.6~+3.6m V/V

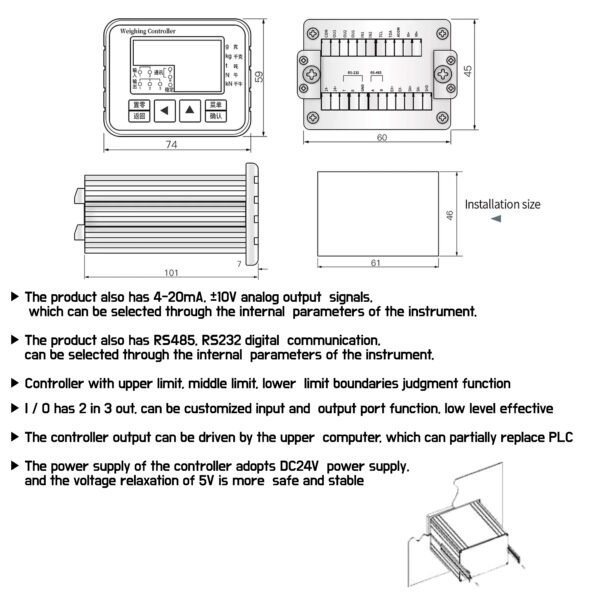

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Display | – | Double-row LED display |
| Readability | – | 1/90000 |
| Output Linearity | % | <0.002 |
| Comprehensive Accuracy | %F.S. | Better than 0.01 |
| A/D Conversion Speed | t/s | ≤1600 |
| Max Signal Input Range | mV/V | -3.6 ~ +3.6 |
| Input Load | – | 8 pcs 350Ω sensors |
| Analog Output Specification | – | ±10V / 0–10V / 4–20mA (Optional parameters) |
| Communication Output | – | RS232 / RS485 (Optional parameters) |
| I/O Output Specification | – | Relay / Transistor (Hardware optional) |
| Temp. Effect on Output | ppm/°C | ≤10 |
| Temp. Effect on Zero | μV/°C | ≤10 |
| Excitation Voltage | VDC | 5VDC |
| Power Supply | VDC | DC 24V ±5% |
| Power Consumption | W | ≤10 |
| Operating Temperature Range | °C | -20 ~ 70 |
| Weight | kg | Approx. 0.5 |
| Material | – | Aluminum Alloy |
