AT8708 Static Torque Sensor
Features and uses:
※Static torque sensor
※ Compact structure for easy installation
Protection rating: IP66
※For measuring torque values in static, non-continuous rotation.
Static Torque Sensor
D 41.2mm*H 25mm
Capacity: 1,2,3,5,10,20,30, 50,100N.m
Category: Static Reaction Torque Sensor
Suitable for the measurement and control of static and discontinuous rotation torque.
- Range: 0~5000N m
- Output: 1mV/V, 0~±5/10V, 4~20mA optional
- Accuracy: ≤±0.1%F.S
Product description:
Capacity ：0-5-200N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.

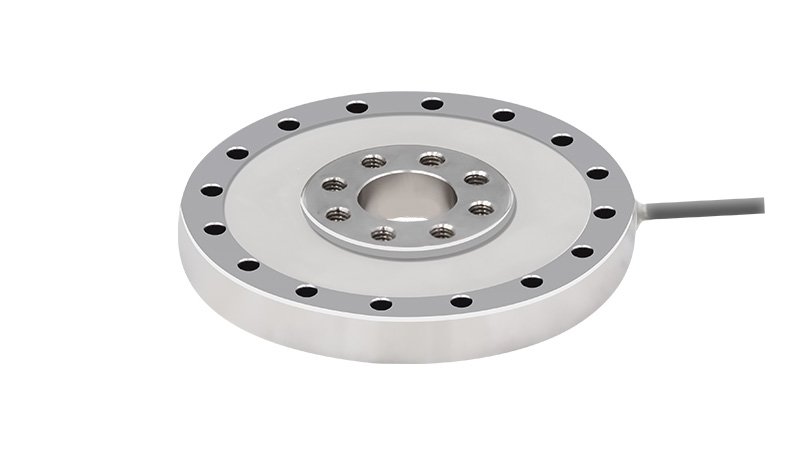

Flange to flange torque sensor ZMFNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. ZMFNJ can be used in both clockwise and counterclockwise direction ranging from 5Nm up to 10000Nm. The measuring range and dual flange size can be customized to meet customer’s requirements.
Features:
Capacity 5Nm-10000Nm
Static torsion measure
Rational outputs
Nickel plated alloy steel
Optional features
Hermetically sealed available
1、Static torque sensor is a kind of sensor used to measure the torque of a stationary or slowly rotating object.
2、The flange mounted sensor is connected with a load transfer device, which can output voltage or current signals.
3、Static torque sensors can be used in various industrial fields, such as electric screwdrivers, torque wrenches, wind turbines and so on.
4、Small size, light weight and convenient installation and use.
5、 High detection accuracy, good stability and strong anti-interference ability.
The TJN-5 static torque measurement sensor is suitable for the measurement and control of static and discontinuous rotation torque.
Static Torque Sensor
D 38mm*H 31.8mm
Capacity: 0.1,0.2,0.5,1,2,3, 5,10N.m
Category: Static Reaction Torque Sensor
Product description:
Capacity ：1~10~500N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
Small size, light weight and easy for installation.
Application: suitable for static and non-continuous rotation torque force measurement.
Flange to square torque sensor ZMNJF is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. ZMNJF can be used in both clockwise and counterclockwise direction ranging from 1Nm up to 500Nm. The measuring range and flange/square size can be customized to meet customer’s requirements.
Features:
Capacity 1Nm-500Nm
Static torsion measure
Rational outputs
Nickel plated alloy steel
Optional features:
Hermetically sealed available
Product description:Features:
Capacity ： 0-5~1000N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
Product description:
Capacity ：5-50~5000N.m
Defend grade: IP67.
Type: torque type
