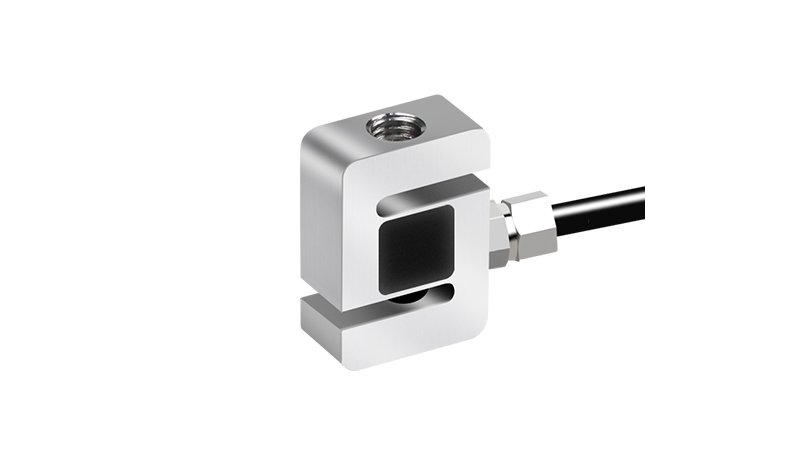

AT8314S sensor
Features and uses:
※ Low height, small deformation
※ Alloy steel material
※ Bidirectional tension and compression
※ Mainly used in push and pull force gauges, hopper scales, and various industrial weighing systems.
10-150kN Stainless Steel Tension Compression Force Sensor FA403 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA403 can be used to measure tension and compression force 10kN,20kN,50kN,75kN,100kN and 150kN capacity, its Rated output range is 2.0±10%mV/V, and its Zero Balance range is ±0.05mV/V.
3t Alloy Steel Tension Compression Force Sensor FA904 is a model of our brand FIBOS FA9-Series, Tension Compression Force Sensor FA904 can be used to measure force of tension and compression 3t capacity, its Rated output range is 1.0±10%mV/V, its Creep(30min) and Repeatability both ≤0.1%F.S., its Non-linearity and Hysteresis both ≤0.2%F.S..
5-200N Stainless Steel S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, it belongs to S Beam Load Cell category, FA301 can be used to measure load 5N,10N,20N,50N,100N and 200N capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀2x3000mm.
This sensor is based on advanced alloy steel and features narrow space installation, high precision stability, and customization possibilities, making it suitable for a variety of industrial fields including automotive, medical, robotics, and automation.
0.1-30t ≤0.05%F.S. Alloy Steel Miniature Industrial Automation Applied Spoke Type Load Cell FA120B is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA120B can be used to measure load 0.1t,0.2t,1t,2t,3t,5t,10t,15t,20t and 30t capacity, its Non-linearity ≤0.05%F.S. and its Repeatability ≤0.03%F.S..
500N 1000N 1500N 2500N 5000N Brake Pressure Measuring Tension Compression Force Sensor FA901 is a model of our brand FIBOS FA9-Series, Tension Compression Force Sensor FA901 can be used to measure force ranges from 500N,1000N,1500N,2500N up to 5000N capacity, its Rated output range is 1.5±10%mV/V, its Zero Balance range is ±0.02mV/V.
10,20,50,100,200kg Or Customized Tension Compression Force Sensor FA401A is a model of Tension Compression Force Sensor, it belongs to FA401 in our brand FIBOS FA4-Series, it can be used to measure load 10kg, 20kg, 50kg, 100kg and 200kg or customized capacity, its Creep(30min), Non-linearity, Hysteresis and Repeatability all ≤0.1%F.S. or can be customized.
25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 is from S Beam Load Cell category of our brand FIBOS FA3-Series, FA307 can be used to measure load ranges from 25kg up to 500kg and ranges from 0.75t up to 10t capacity, its Non-linearity,Hysteresis and Repeatability all ≤0.03%F.S., its Creep(30min) ≤0.024%F.S..
50,100,200,500,1000,2000kg Or Customized Tension Compression Force Sensor FA130B belongs to FA130 which belongs to Tension Compression Force Sensor, FA130B can be used to measure compression force and tension force 50kg,100kg,200kg,500kg,1000kg and 2000kg or customized capacity, its Zero Balance range is ±0.5mV/V.
| Model Number: | BHA | Place of Origin: | Zhejiang, China |
| Brand Name: | santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 5t,6t,7.5t,8t,10t,12t,18t,20t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.05%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ulitimate Overload: | 200%F.S |
1-20kg Stainless steel Tension Compression Force Sensor FA401 is a model of Tension Compression Force Sensor, it belongs to our brand FIBOS FA4-Series, FA401 can be used to measure load 1kg, 2kg, 5kg, 10kg and 20kg capacity, its Creep(30min), Non-linearity, Hysteresis and Repeatability all ≤0.1%F.S., its Cable size is ⌀2x3000mm.
10,20,50,100,200,500,1000N or customized S Beam Load Cell FA302L is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302L can be used to measure load 10N,20N,50N,100N,200N,500N and 1000N or customized capacity, its Cable size is ⌀4x1000mm or customized length.
