ATO-LCST-TJL-8 Tension Load Cell, 10 ton/30 ton/50 ton/100 ton to 200 ton
After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0~5V, 0~10V, 0~±10V, or 4-20mA.
Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.
Tension and compression load cells have capacity range from 10 ton, 20 ton, 30 ton, 50 ton, 100 ton to 200 ton. Load cell capacity can be customized according to customer requirements.
Specification
| Model | ATO-LCST-TJL-8 |
| Shipping Weight | 1.5~4kg |
| Capacity Range * | 10 ton~200 ton |
| Matched Display Controller | ATO-TY5DA3 (Click it to the controller page) |
| Matched Transmitter | ATO-LCTR-NTB3K (Click it to the transmitter page) |
| Accuracy | 0.05~0.1%F.S (linearity + hysteresis + repeatability) |
| Sensitivity | 1.5±0.1mV/V |
| Output Signal | 0-20mV |
| Creep | ±0.05%F.S/30min |
| Zero Output | ±1%F.S |
| Temperature Effect on Zero | ±0.05%F.S/10℃ |
| Temperature Effect on Output | ±0.05%F.S/10℃ |
| Operating Temperature | -20℃~+65℃ |
| Input Impedance | 380±10Ω or 750±15Ω |
| Output Impedance | 350±3Ω or 700±5Ω |
| Insulation Resistance | ≥5000MΩ |
| Safety Overload | 150%F.S |
| Bridge Voltage (excitation voltage) | DC 10V |
| Material | Alloy steel |
| Protection Class | IP67 |
| Cable Length | 6m |
| Wiring | EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White |

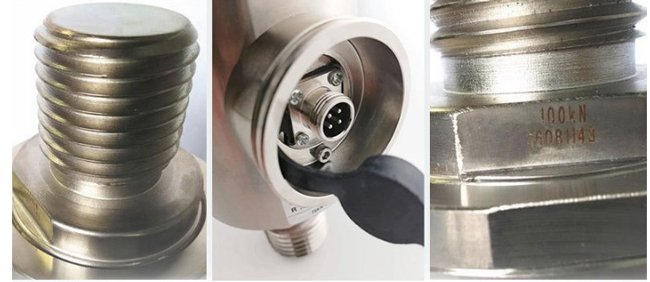

Feature
- 42CrMo Alloy Material: External thread connection, strong resistance to machine fatigue, large load capacity, wide range of applications, and safe and reliable.
- High Measurement Accuracy: Stable output, reliable signal transmission, strong anti-jamming capability, ensuring high accuracy.
- Fine Workmanship: Advanced grinding technology, flat design, easy connection with dual-threaded ends, simple and convenient installation.
Dimension
| Capacity | Dimension (mm) | |||
| A | ΦB | C | M | |
| 10~20 ton | 214 | 82~86 | 124 | M42*4.5 |
| 30~50 ton | 276 | 106 | 157 | M56*5.5 |
| 70~100 ton | 380 | 142 | 180 | M76*4 |
| 150~200 ton | 500 | 175 | 220 | M130*6 |
Wiring Method
Tips: What is the difference between a Tension Load Cell and a Compression Load Cell?
The main difference between a tension load cell and a compression load cell is the direction of the force being measured. A tension load cell is designed to measure pulling or tension forces, while a compression load cell measures pushing or compressive forces.
- Tension Load Cells are used in applications where the load is being pulled, such as on cranes, hoists, or wire ropes.
- Compression Load Cells are used when the force is applied in a compressive direction, such as in weighing systems or hydraulic presses.
Both types of load cells work based on the same principle, converting mechanical force into an electrical signal, but they are optimized for different load directions.
