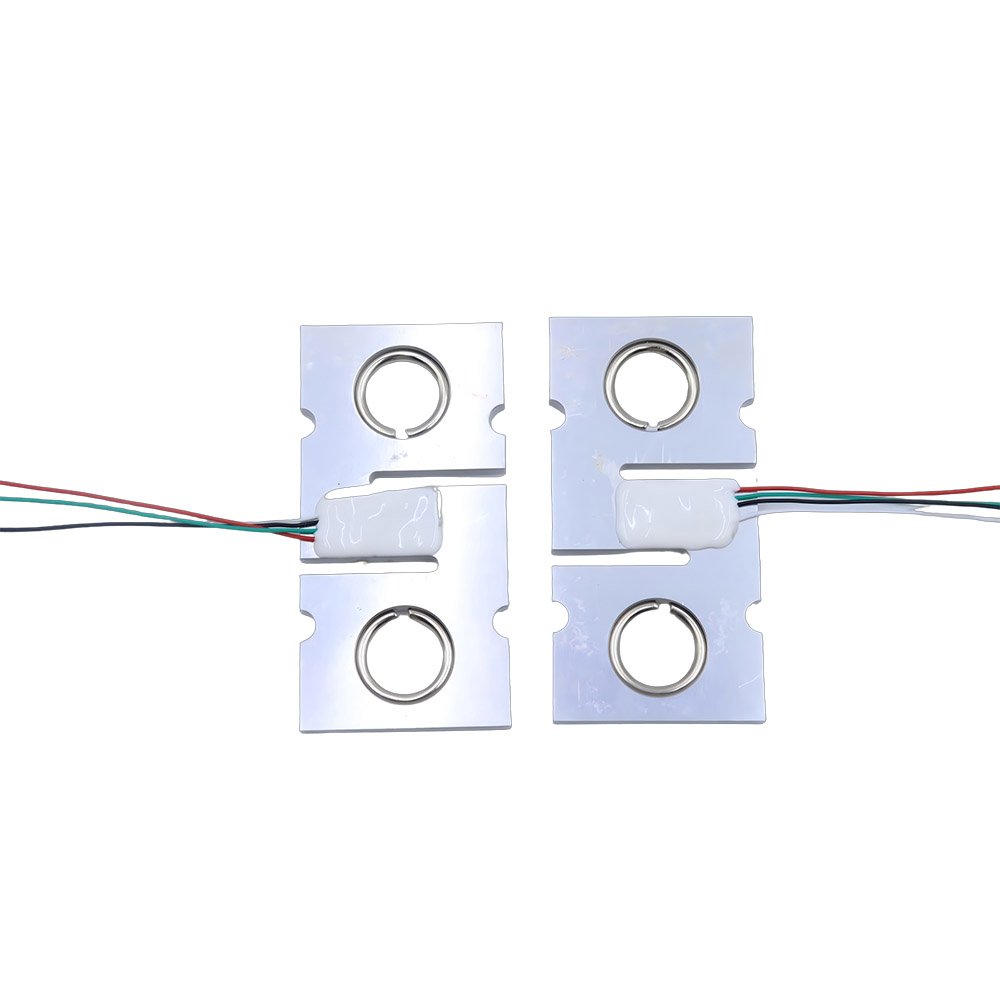

S beam load cell-AT71A
Description
1.Aluminium alloy structure
2. Full bridge structure
3. Mainly used for hanging scale, Fitness Sensor, hook Scale, tensile testing etc
Drawing
Contact us if you need the Datasheet PDF.
5-200N Stainless Steel S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, it belongs to S Beam Load Cell category, FA301 can be used to measure load 5N,10N,20N,50N,100N and 200N capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀2x3000mm.
The S beam load cell provides good restraint to possible movement of the automation and in many cases. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Features:
Capacity 1kg-100kg
Both tension and compression
Rational outputs
Stainless steel
Optional features:
Hermetically sealed available
This sensor can measure both tensile and compressive loads, offers high precision and stability, and has structural features suitable for various industrial automation and testing equipment.
10-1000N Stainless Steel S Beam Load Cell FA302 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA302 can be used to measure load ranges from 10N,20N,50N,100N,200N,500N up to 1000N capacity, its Cable size is ⌀2x3000mm, its Weight is 0.1kg and Material is Stainless steel, its range of Input impedance and Output impedance are both 650/350±5Ω.
This sensor can measure both tension and compression, and its high precision and stability make it suitable for automation and various testing equipment.
LCT S-type Load Cells have been designed for measuring static and dynamic tensile and compressive forces.
Advantages of LCT S-type Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and you benefit from a new generation of high-precision, S-type load cells. Be it force measurement in machines, test benches and production lines or tests in development: LCT S-type load cells are the reliable and safe choice for precise force measurement – providing compelling benefits for you.
Model LAS-C1 load cells are designed to this “S-type”and manufactured from high quality aluminum alloy of aviation standard. LAS-C1 load cells can be used to measure loads range from 50kg to 500kg with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output) and 2mV/V output signal.
LAS-C1 load cells are mainly used for crane scales,hopper scales,tensile testing,test benches and machine testing.
Advantages of LCT S-type Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and you benefit from a new generation of high-precision, S-type load cells. Be it force measurement in machines, test benches and production lines or tests in development: LCT S-type load cells are the reliable and safe choice for precise force measurement – providing compelling benefits for you.
Model LAS-C1 load cells are designed to this “S-type”and manufactured from high quality aluminum alloy of aviation standard. LAS-C1 load cells can be used to measure loads range from 50kg to 500kg with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output) and 2mV/V output signal.
LAS-C1 load cells are mainly used for crane scales,hopper scales,tensile testing,test benches and machine testing.
This product is a high-precision tensile/compressive dual-purpose sensor made of stainless steel, and is a highly stable sensor suitable for various industrial and automated testing equipment.
100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell FA302C is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302C can be used to measure load ranges from 100kg up to 10000kg or customized capacity, its Weight is 0.75kg or can be customized.
This sensor can measure both tension and compression, and its high precision and stability make it suitable for automation and various testing equipment.
The ZMSSA S type load cell provides good restraint to possible movement of the automation and in many cases. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSSA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Features:
Capacity 5kg-200kg
Both tension and compression
Rational outputs
Stainless steel
Optional features:
Hermetically sealed available
This sensor can measure both tension and compression, and its high precision and stability make it suitable for automation and various testing equipment.
This sensor can measure both tension and compression, and its high precision and stability make it suitable for automation and various testing equipment.
