S beam load cell-AT52K
Description
AT52K S beam load cell is Aluminum alloy material, Mainly used for crane scale, hopper scale, tensile testing etc.

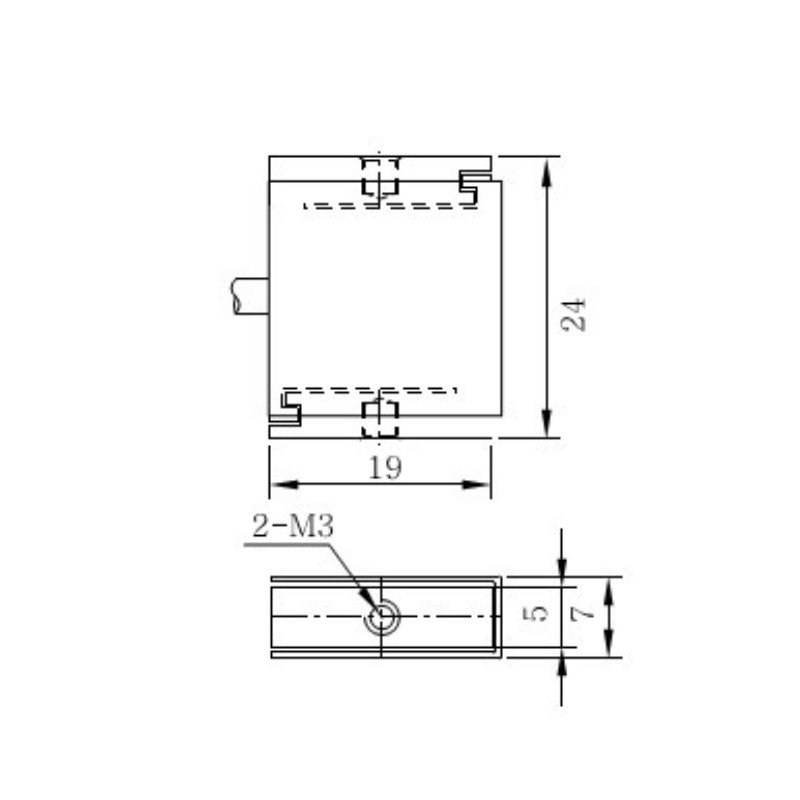

Drawing
Contact us if you need the Datasheet PDF.
AMOWELLSENSOR / S beam load cell-AT52K
AT52K S beam load cell is Aluminum alloy material, Mainly used for crane scale, hopper scale, tensile testing etc.
| Accuracy | ±0.1%F.S |
|---|---|
| Capacity | 0.1, 0.2, 0.5, 1kg |
| Certificate | RoHS, CE |
| Creep | ±0.1%F.S/30min |
| Material | Aluminum alloy |
| Model | AT52K |
| Sensitivity | 1.0±20%mV/V |
| Size | 19*24*7mm |
This sensor can measure both tension and compression, and its high precision and stability make it suitable for automation and various testing equipment.
