AWD21E Weight Indicator
Description
- Designed for applications requiring the conversion of force signals into digital communication signals, standard analog outputs, and basic control functions.
- Equipped with both RS-232 and RS-485 communication interfaces.
- A mature filtering algorithm ensures higher measurement accuracy.
- The controller provides upper, middle, and lower limit judgment functions.
- Supports PC software control of the output, allowing it to partially replace a PLC.
- AD conversion speed up to 1280 Hz.
- Supports Modbus-RTU protocol.
- Standard analog outputs: ±10 V and 4–20 mA.
- Standard IO (1 input, 1 output) configuration.

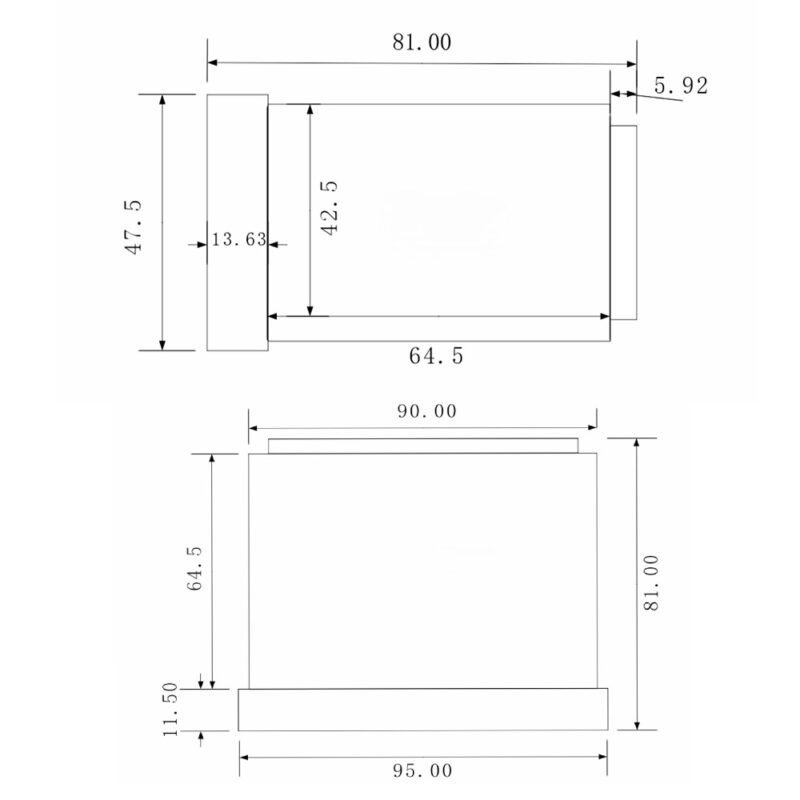

Drawing
Contact us if you need the Datasheet PDF.
