The ZMPF is alloy steel construction and adhesive sealed single point type load cell with IP66 protection. It is suitable for floor scales, counting scales, packing machines and similar electronic weighing devices or testing machines.

Nickel plated alloy steel

The display uses a 24 bit A / D converter, can be connected to various types of sensors and transmitters to achieve the pressure, flow, level composition analysis and volume measurements, and other physical and mechanical parameters, display, alarm monitoring, data acquisition and recording.

Baud rate 38400

Plastic housing

6-digit 20.2mm red LED

Dimensions：256×165×170mm

Applications：Electronic platform scale, weighing scale

Weighing indicator XK3190-T6 is widely applied in electronic platform scale, electronic floor scale and so on alike static weighing system equipped with 1~4 load cell.

Auto power off at low battery

The ZM2DW force sensor F, M utilizes independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.

Compact size

The ZM3DW 3 axis load cell utilizes independent wheatstone full bridge for Fx, Fy, Fz which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Cusotmaztion can consist of load cells with client’s outer dimension, mouting size, output signal etc. Used with Zhimin’s data logger which can collect load cell’s voltage signal and display force curve.

Compact size

Features:

4. Compact size

The ZM6DW is 6 axis force torque load cell. The load cell Fxyz and Mxyz utilize independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.

Compact size

The ZMBH is tension load cell alloy steel IP67 protected load cell. The capacity ranges from 2t-70t. It is widely used in crane scales.

Nickel plated alloy steel

The ZMPL is fatigue rated load cells are specifically designed for component durability and fatigue test machines where highly cyclical loading is present. These rugged load cells are extremely resistant to extraneous bending and side loading forces. They are used for material testing, component life cycle testing and structural testing. All fatigue rated load cells are guaranteed against fatigue failure for 100 million fully reversed cycles.

Features

Capacity 3T 4T 5T 10T

compression

The ZMDZT is an ultra high capacity, alloy or stainless steel compression load cell. This product is specifically designed to be used in the tank weighing assembly and available in capacities up to 6500KN. In the ZMDZT assembly this load cell provides a simple solution to high capacity container weighing.

Nickel plated alloy steel

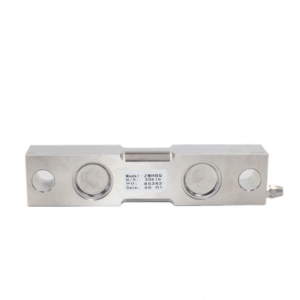

The ZMHB double-ended mounting provides good restraint to possible movement of the tanks and, in many cases, eliminates the needs for check rods. The shear beam design gives excellent performance for high capacity loading. The ZMHB is constructed of alloy steel and is potted to IP67 providing excellentt protection against moisture and humidity.

Nickel plated alloy steel

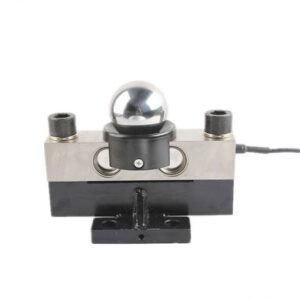

Weighbridge load cells also known as truck scales are designed for truck and rail scales. The ZMHBQ is common product widely used around the world. The ZMHBQ is very cost-effective with C3 class. In most of situations, they are used at 4,6 or 8 numbers together, so their sensitivity must be exact same.

Nickel plated alloy steel
