AVAILABILITY: In stock

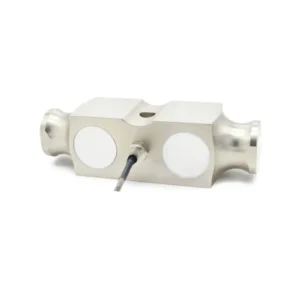

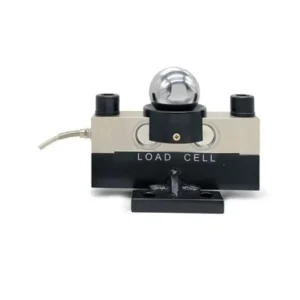

QS-T Double Ended Shear Beam 5 Ton 10 ton load cell zemic load cell Truck Scale Load Cell companies spend so much time coming up with various products to reach diverse consumer needs. As soon as QS-T Double Ended Shear Beam 5 Ton 10 ton load cell zemic load cell Truck Scale Load Cell was launched on the market, it received positive feedback from many customers, who said that this type of product can effectively solve their needs. Ningbo Santwell Import & Export Co., Ltd has developed a market-leading reputation in the industry for delivering outstanding products and solutions. The exceptional ability sees our efforts in R&D.

Model Number: QS-T Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: Santwell
Usage: Truck scale, railway scale, blending scale Theory: resistan
Output: Resistance strain Description: double ended beam load cell
Rated Load: 10T Sensitivity: 2.0000±0.002mv/v
Total Error: ±0.03%F.S Creep(30 minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V-18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: ±150%F.S UItimate Overload: ±200%F.S













AVAILABILITY: In stock

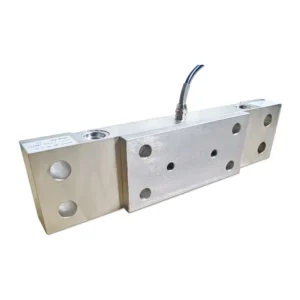

Model Number: QS-TL Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: Santwell
Usage: Truck scale, railway scale, blending scale Theory: resistan
Output: Resistance strain Description: double ended shear beam
Rated Load: 10t 20t 30t 40t Sensitivity: 2.0000±0.002mv/v
Total Error: ±0.02%F.S Creep(30 minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V-18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: ±150%F.S UItimate Overload: ±200%F.S



AVAILABILITY: In stock


In the fierce market competition, Ningbo Santwell Import & Export Co., Ltd has grown continuously. We invest in R&D to find better solutions in the Force Sensors & Load Cells industry. We offer buyer Warehouse Measurement 75 Klb 24 V 2Cr14Ni Double Ended shear beam load cell QS-V that they need at prices that fit their pocket. Relying on our excellent products and sensible marketing strategy,Ningbo Santwell Import & Export Co., Ltd hold a firm belief that we will take a large market share in the future and benefit our stakeholders as well.

Model Number: QS-V Place of Origin: Zhejiang, China
Brand Name: Santwell Usage: PRESSURE SENSOR
Theory: Resistance Sensor Output: Analog SENSOR
Description: double ended shear beam load cell Rated Load: 75klb
Sensitivity: 2.0000 mv/v Total Error: ±0.04%F.S
Creep(30 minutes): ±0.02%F.S Recommended Excitation Voltage: 5V-18V(AC or DC)
Maximum Excitation Voltage: 24V(AC or DC) Zero Balance: ±1%F.S
Insulation Impedance: ≥5000MΩ Safe Overload: ±150%F.S
UItimate Overload: ±200%F.S Application: Warehouse Measurement













AVAILABILITY: In stock


Ningbo Santwell Import & Export Co., Ltd maintains stringent norms of quality to manufacture QS-X Weight 10-30t Double Ended Shear Beam Sensor Truck Scale Load Cell. Modern technologies innovate means are adopted for the flawless manufacturing of QS-X Weight 10-30t Double Ended Shear Beam Sensor Truck Scale Load Cell.So far, the application areas of the product have been expanded to the Force Sensors & Load Cells. It is the support of our customers that propels us to continue to move forward. Ningbo Santwell Import & Export Co., Ltd will keep providing high-quality products and professional services as always for customers. In addition, talents are the core pillar of a company. We will organize regular training on our staff to improve their skills.

Model Number: QS-X Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: santwell
Usage: truck scale Theory: resistan
Output: Resistance strain Description: Double ended shear beam load cell
Rated Load: 10t-30t Sensitivity: 2.0000±0.002mv/v
Total Error: ±0.02%F.S Creep(30 minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: 150%F.S UItimate Overload: 200%F.S

AVAILABILITY: In stock

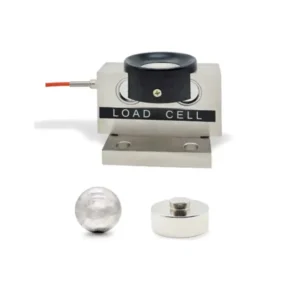

After years of painstaking research, Ningbo Santwell Import & Export Co., Ltd’s technicians have successfully developed QS-YBC 10T 20T 30T Digital Weighing Sensor Truck Scale Compression 30T Digital Load Cell. The team uses the most advanced production equipment and independent research and development technology to minimize QS-YBC 10T 20T 30T Digital Weighing Sensor Truck Scale Compression 30T Digital Load Cell development cycle and ensure the high quality and strong reliability of the product. Santwell is a solution for all your buying needs. We can offer you the prices that you need and quality that is good for you.

Model Number: QS-TL Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: Santwell
Usage: Truck scale, railway scale, blending scale Theory: resistan
Output: Resistance strain Description: double ended shear beam
Rated Load: 10t 20t 30t 40t Sensitivity: 2.0000±0.002mv/v
Total Error: ±0.02%F.S Creep(30 minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V-18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: ±150%F.S UItimate Overload: ±200%F.S



AVAILABILITY: In stock


State-of-the-art technologies introduced and upgraded for the more efficient and stable manufacturing of the product. It functions perfectly in the application scenario(s) of Force Sensors & Load Cells. We can provide you with the highest quality products within your budget. Santwell has been dedicated to the design, R&D, manufacturing, and updates of Load cells, Subminiature force transducers, miniature load cells, Intelligent load cells. We fully hope that we can satisfy customers from different fields, countries, and regions by offering them high-quality products and professional service. If you have any questions or problems, please contact us at any time through the contact information listed on our website.

Model Number: QS-YBF Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: Santwell
Usage: truck scale Theory: resistan
Output: Resistance strain Description: Double ended shear beam load cell
Rated Load: 10/20/30 T Sensitivity: 2.0000±0.002mv/v
Total Error: ±0.02%F.S Creep(30 minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V-18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: ±150%F.S UItimate Overload: ±200%F.S









AVAILABILITY: In stock


Ningbo Santwell Import & Export Co., Ltd has been manufacturing, exporting and supplying excellent quality Double Ended shear beam load cell weight sensor 10 ton load cell 20 Ton To 120 Ton QS-YBJ. Double Ended shear beam load cell weight sensor 10 ton load cell 20 Ton To 120 Ton QSF can help companies stand out in a fiercely competitive environment and become the industry leader in one fell swoop. So, shake hands with us, expand your business, and increase your clientele.

Model Number: QS-YBJ Place of Origin: Zhejiang, China
Brand Name: Santwell Usage: PRESSURE SENSOR
Theory: Resistance Sensor Output: Analog SENSOR
Description: double ended beam load cell Rated Load: 20/30/40/50/60/80/120
Sensitivity: 2.0000±0.002mv/v Total Error: ±0.02%F.S
Creep(30 minutes): ±0.02%F.S Recommended Excitation Voltage: 5V-18V(AC or DC)
Maximum Excitation Voltage: 24V(AC or DC) Zero Balance: ±1%F.S
Insulation Impedance: ≥5000MΩ Safe Overload: ±150%F.S
UItimate Overload: ±200%F.S Application: In the metallurgical industry metering equipment











AVAILABILITY: In stock


In this era, it is necessary for any enterprise including Ningbo Santwell Import & Export Co., Ltd to improve our R&D strength and develop new products on a regular basis. QS-X 10 20 30 T Specialized Customized Production Alloy Steel Weighbridge 10 Ton Load Cell has made great technological breakthroughs because technicians often hold training and technical exchanges to improve professional skills. Ningbo Santwell Import & Export Co., Ltd have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing, and gathering talents especially technical talents to develop our own core technologies.

Rated Load
T
10/20/30
Sensitivity
mV/V
2.0000±0.002
Total Error %F.S
±0.02
Creep(30minutes) %F.S
±0.02
Recommended Excitation Voltage
V
5 ~18 (AC or DC)
Maximum Excitation Voltage
V
24 (AC or DC)
Zero Balance %F.S ±1
Input Impedance Ω
775±10
Output Impedance Ω
700±5
Insulation Impedance ≥5000
Safe Overload %F.S 150
Ultimate Overload %F.S
200
Operating Temperature Range
(-30~+70)
Compensated Temperature Range
(-20~+60)
Temperature Effect On Load
±0.02%F.S/10
Temperature Effect On Zero ±0.02%F.S/10
Construction Alloy steel
Protection Class IP67&IP68
Citation GB/T7551-2008/OIML R60
Mode of Connection

Input+E:Red Input-E:Black

Output+S:Green Output-S:White







AVAILABILITY: In stock


Since launched,Load cells, Subminiature force transducers, miniature load cells, Intelligent load cells has been named as one of the best and popular products in our company. Based on scientific strategic decision-making, driven by strong operating capabilities, and driven by technology and R&D capabilities, the products developed and manufactured have clear positioning and goals. In the future, Ningbo Santwell Import & Export Co., Ltd will always adhere to the business philosophy of “people-oriented, innovative development”, based on excellent quality, driven by technological innovation, committed to high-quality products, high-level technology and high-efficiency operations, and promotes the company The economy develops soundly and rapidly.

Warranty: 1 year Customized support: OEM, ODM, OBM
Place of Origin: Zhejiang, China Brand Name: Santwell
Model Number: QSZD Rated Load: 10t 20t 30t 40t
Sensitivity: 2.0000±0.002mV/V Total Error: ±0.02%F.S
Creep(30minutes): ±0.02%F.S Recommended Excitation Voltage: 5V~18V(AC or DC)
Maximum Excitation Voltage: 24V(AC or DC) Zero Balance: ±1%F.S
Insulation Impedance: ≥5000MΩ Safe Overload: 150%F.S
Utimate Overload: 200%F.S









AVAILABILITY: In stock

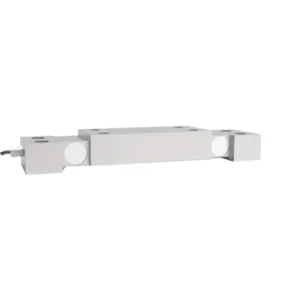

Ningbo Santwell Import & Export Co., Ltd after long-term market research, we have created a brand-new product that is different from its peers. Talents and technology are indispensable supporting factors for the Truck Scale Railway Scale Alloy Steel Double Ended shear beam load cell RWS01 to be widely praised. Our expertise and technologies enable tailor-made solutions for every customer.

Model Number: RWS01 Type: force sensor
Place of Origin: Zhejiang, China Brand Name: Santwell
Usage: PRESSURE SENSOR Description: double ended beam load cell
Rated Load: 4.5~56.5T Sensitivity: 2.0000±0.002mv/v
Total Error: ±0.02%F.S Creep(30 minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V-18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: ±150%F.S UItimate Overload: ±200%F.S





AVAILABILITY: In stock

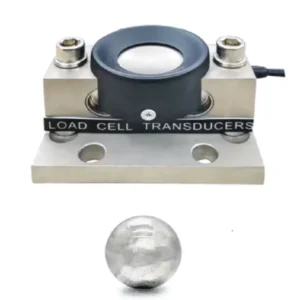

Ningbo Santwell Import & Export Co., Ltd is excited that we will make our CMK OIML 40t 100 tons Zemic Compression high temperature weight sensor column tension Type load cell for trucks scales widely known to the market. The product is the result of our hardworking staff and strong technical capabilities. It is delicately designed to comply with the industry standard. Ningbo Santwell Import & Export Co., Ltd will always be led by market demand and respect customers’ wishes. Based on the feedback given by customers, we will make changes accordingly in our product development so as to manufacture the most satisfying and profitable products.

Model Number: CMK Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: SantWell
Usage: Truck scale Theory: /
Output: 700Ω/775Ω Description: Load cell
Rated output: 10t,20t, 30t, 40t,50t Sensitivity: 2.0000±0.002mV/V
Total Error: ±0.02%F.S Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~18V (AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Safe Over load: 150%F.S
Ultimate Overload: 200%F.S Working temperature: (-30~70)℃







AVAILABILITY: In stock

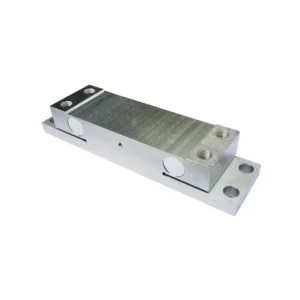

Ningbo Santwell Import & Export Co., Ltd has been investing a lot in product development and has gained positive results. Innovation ability is the key to the core competitiveness of products. It is technologies that keep a company stands out from other competitors.Ningbo Santwell Import & Export Co., Ltd will focus on improving our currently-used manufacturing technologies and will never stop innovating and developing our own core technologies. We hope that one day we will become a leader in the industry.

Model Number: RWS02 Place of Origin: Zhejiang, China
Brand Name: Santwell Usage: PRESSURE SENSOR
Theory: Resistance Sensor Output: Analog SENSOR
Rated Load: 30t Sensitivity: 1.5000±0.002mV/V
Total Error: ±0.05%F.S Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: 150%F.S Ultimate Overload: 200%F.S



AVAILABILITY: In stock


Ningbo Santwell Import & Export Co., Ltd always keeps well informed about the technical development and new product R&D, which guarantees we can develop new products on a regular basis. It is designed in accordance with the national standard. Ningbo Santwell Import & Export Co., Ltd aims to become the most influential enterprise in the world. In order to achieve this goal, we will insist on introducing high-tech talents and learning international advanced technology, and strive to improve technical strength and gain the initiative in competition.

Model Number: SQC-DSB Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: SANTWELL
Usage: floor scale Theory: resistant
Output: 2.0mv/v Description: Load cell
Rated Load: (100,150,200,250,300)kg,0.5t,1t,2t,3t,5t,10t Sensitivity: 2.0000±0.002mV/V
Total Error: ±0.02%F.S Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~12V(AC or DC) Maximum Excitation Voltage: 15V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: 150%F.S Utimate Overload: 200%F.S















AVAILABILITY: In stock

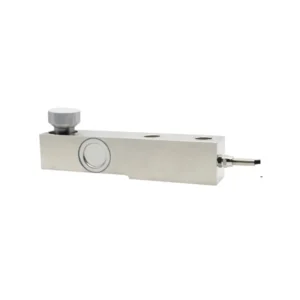

SB-B Weighbridge weight sensor chinese cantilever zemic prices of shear beam load cell is a hot seller well recognized by users around the world. Designed by professional designers, SB-B Weighbridge weight sensor chinese cantilever zemic prices of shear beam load cell is attractive in its appearance. After years of growth and development,Ningbo Santwell Import & Export Co., Ltd have constructed characteristic corporate culture systems and confirmed our business principle of ‘customer first’. We will always focus on customers’ needs and promise that we will provide the most satisfying and valuable products.

Model Number: SB-B Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: santwell
Usage: Floor scale, PRESSURE SENSOR Theory: /, Resistance Sensor
Output: 350Ω Description: Shear beam load cell
Rated Load: 0.5t,1t,2t,3t,5t,10t,20t,25t Sensitivity: 2.0000±0.002mV/V
Total Error: ±0.02%F.S Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~12V(AC or DC) Maximum Excitation Voltage: 15V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ

















AVAILABILITY: In stock

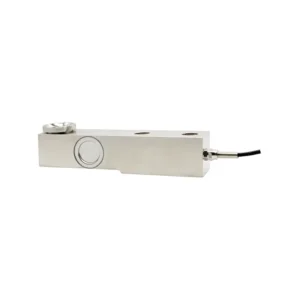

Model No.: SBAL-(M)

Brand: santwell

Sensitivity: 2.0000±0.002mv/V

Construction: Alloy Steel/Aluminum

Protection Class: Ip67&Ip68

Total Error: ±0.02%f.S

Rated Load: 10-40t

Recommended Excitation Voltage: 5v~18v(Ac Or Dc)

AVAILABILITY: In stock


Model Number: SBHL-(M) Place of Origin: Zhejiang, China
Brand Name: SANTWELL Usage: PRESSURE SENSOR
Theory: Resistance Sensor Output: Analog SENSOR
Rated Load: 5t Sensitivity: 2.0000±0.002mV/V
Total Error: ±0.02%F.S Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: 150%F.S Utimate Overload: 200%F.S
