ZMNH Ring-torsion load cell
1. RTN structure.
2. High accuracy, big capacity but compact size.
3. Adapter kits can be offered as well.
ZHIMIN / ZMNH / Кольцевой тензодатчик на кручение
The ZMNH model load cell is designed as RTN structure. This structure has really high accuracy but compact size. Compared with other types, ZMNH is most effective and stable. The load cell is usually used with adapter kits which can be offered as well.
Features：
Capacity 1t-330t
RTN design
High accuracy
Compact size
Optional features：
Hermetically sealed available
LCT Miniature compression load cells are made of LCT’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LAU-C1/LTU-C1 start from 5kg to 10kg.The measuring accuracy is 1%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy/stainless steel of aviation standard.
LAU-C1/LTU-C1 load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.
Based on LCT advanced metal foil strain gauge technology,LCT’s torque sensors are made from aluminum alloy and sealed to IP65 protection grade.
Model LAN-X1 load cells are designed to this “torque/multidirection force”type and manufactured from high quality aluminum alloy of aviation standard. LAN-X1 oad cells can be used to measure loads range from 10N to 50N with the measuring accuracy of 0.2% R.O.( R.O.=Rated Output)
LAN-X1 load cells are mainly used for force measuring in a narrow space, torque wrensh and torsion measurement of shaft and multidirection force measuring systems.
Feature
- Adpts high-precision resistance strain principle
- Supports force measurement in the range of 0-20kg.
- Robust pressure-bearing structure with simplified installation.
- Small size, beautiful appearance
- High response frequency, high-precision.
Feature
- Adopts high-precision resistance strain principle
- Supports force measurement in the range of 0-20ton.
- Robust pressure-bearing structure with simplified installation.
- High precision and high stability
- High response frequency
Feature
- Adopts high-precision resistance strain principle
- Supports force measurement in the range of 0-5kg.
- Robust pressure-bearing structure with simplified installation.
- Small size, beautiful appearance
- High response frequency, high-precision.

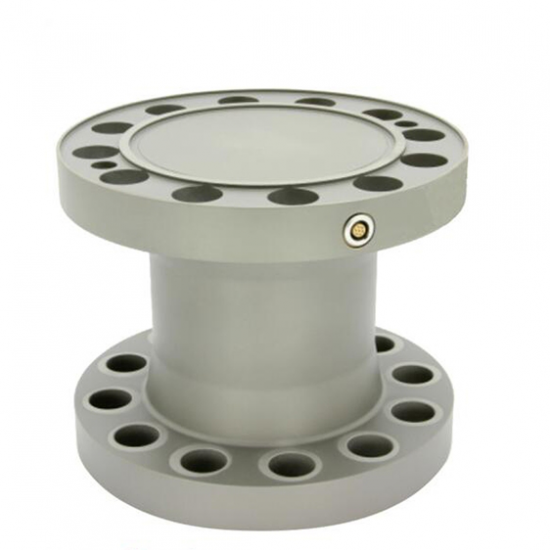

The ZMNZT is double flanges type compression load cell, capacity from 300KN up to 5000KN. Construction using special steel. Efficient internal protection against the strong induced currents from lightning. The ZMNZT model is manufactured to maintain its performance capabilities in external environmental conditions. Its application is the load control in high capacity silos. Also, it substitutes level indicators with higher precision and reliability.
Features:
Capacity 300KN-5000KN
Inner column type structure
Easy installation
Nickel plated alloy steel
Optional features
Stainless steel construction

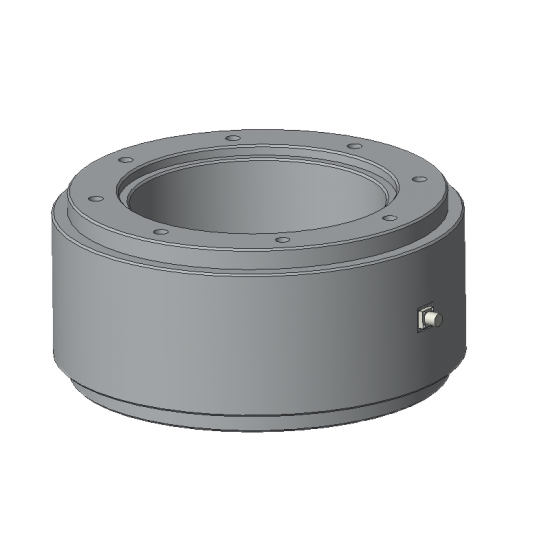

The ZMDZT is an ultra high capacity, alloy or stainless steel compression load cell. This product is specifically designed to be used in the tank weighing assembly and available in capacities up to 6500KN. In the ZMDZT assembly this load cell provides a simple solution to high capacity container weighing.
Features:
Capacity 600KN-6500KN
Multi column structure
Through-hole
Nickel plated alloy steel
Optional features:
Customizable dimensions
Features
Capacity 10kg 50kg 100kg 200kg 300kg
compression
Rational outputs
Stainless steel
Optional features
Hermetically sealed available

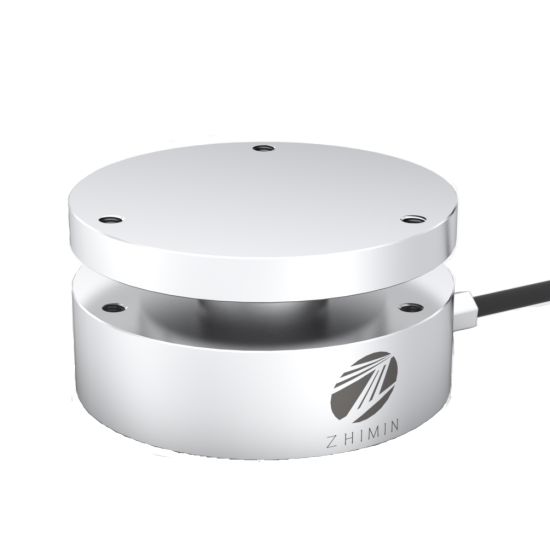

The ZMC1 has various capacities. From 10kg to 300kg, we provide customization services. ZMC1 receives compression when it is working. With its high accurracy, it will give a strong and stable signal. The small size gives excellent performance for high capacity loading. ZMC1 is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Feature
- Adopts high-precision resistance strain principle
- Supports force measurement in the range of 0-5ton.
- Oil, water, corrosion resistance
- Robust pressure-bearing structure with simplified installation.
- High response frequency
Feature
- Adopts high-precision resistance strain principle
- Supports force measurement in the range of 0-50kg.
- Capsule structural design, robust pressure-bearing structure with simplified installation.
- High quality stainless steel material
- Small size, beautiful appearance
- High response frequency
Feature
- Adopts high-precision resistance strain principle
- Supports force measurement in the range of 0-10kg.
- Parallel Beam structural design, robust pressure-bearing structure with simplified installation.
- High precision and high stability
- Small size, beautiful appearance
- Compensated four corner error
The ZMLBA is high precison spoke type load cell designed for both tension and compression force measurement. Nickel plated alloy steel can make protection class achieve IP67. The load cell is suitable for testing machines and special measuring equipment. Stainless steel construction is optional.
Features:
Capacity 2t, 5t, 10t
High accuracy
High stability
Nickel plated alloy steel
Optional features:
Stainless steel construction
