Feature
v Adopting high-precision resistance strain principle
v With unique technology, stable for property
v Glue seal, insurance for using surrounding
v Preventing of oil, moisture and corrosion
v Class of protection：IP67
Specification
| Capacity(kg) | 5,10,25,50,100
|
Material | Elastic element: steel， housing: aluminum
|
| Rated Output(mV/V) | 1.00±0.1 | Non-linearity | ±0.3%FS |
| Hysteresis | ±0.3%FS | Repeatability | ±0.1%FS |
| Creep(30 minutes) | ±0.3%FS | Zero balance | ±1.00%FS |
| Temperature effect on zero | ±0.2%F.S./10℃ | Temperature effect on output | ±0.2%F.S./10℃ |
| Input resistance（Ω） | 350±5 | Output resistance（Ω） | 350±5
|
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-10V(DC) |
| Compensated temperature range | -10~+50℃ | Operating temperature range | -15~+65℃ |
| Safe overload | 150%FS | Breaking loading | 5 times the rated capacity
|
| Cable | Φ5 X 3M
Or customized by request |
Cable color code
|
Input: red+ black-
Output: green+ white- |

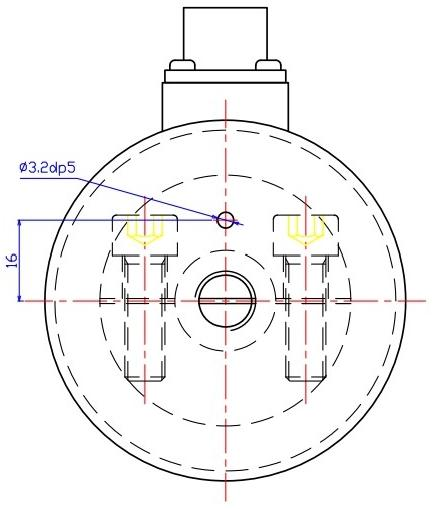

Plan
Application
Mainly Used in textile machinery, printing and packaging, paper plastics, wire and cable, and to meet a variety of industry tension measurement needs.
