Zemic / HM11 Bellows Load Cell

Add to Wishlist
Share it:

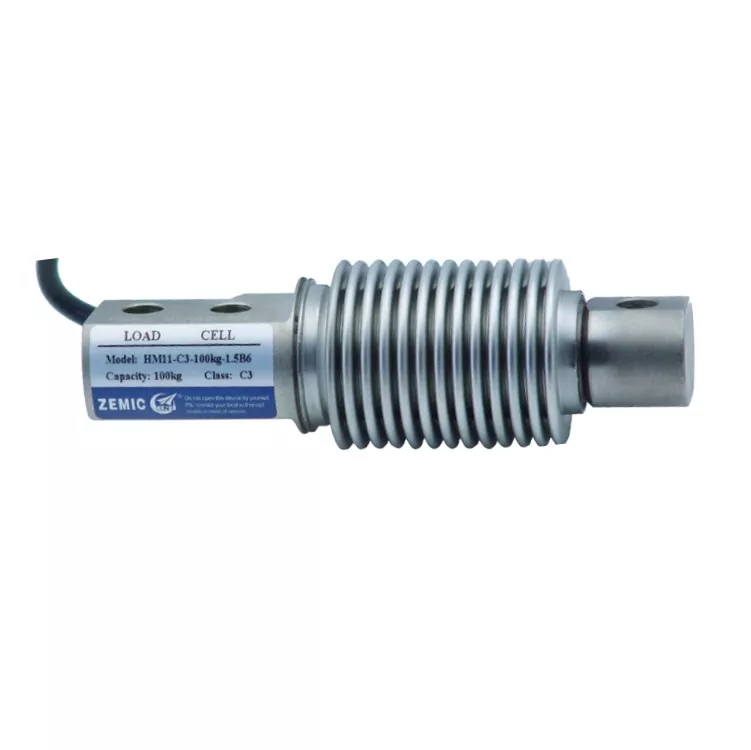

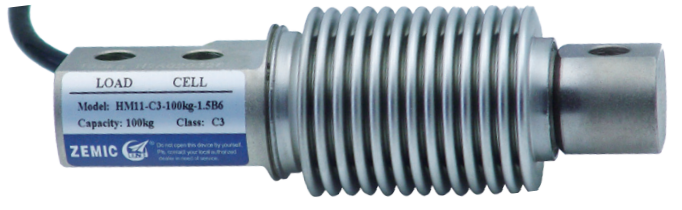

HM11 Load Cell Zemic Bellows Load Cell

Product Description


Short Description:

◎Alloy steel, nickel-plated, single point bending beam, hermetically welded, tension or compression；

◎Ingress protection (according to EN 60529): IP68；

◎Suitable for belt scales, hopper scales and other electronic weighing devices；

Available models：

Capacity Accuracy Full article description
xxkg C3 HM11-C3-xxkg-3B
xxkg C3 HM11-C3-xxkg-6B6

Specification：

Maximum capacity ( Emax ) kg 5/10/20/30/50/75/100/150/200/250/300/350/400/500
Accuracy class C3
Maximum number of verification intervals N.max 3000
Maximum number of load cell intervals ( nLC ) Vmin Emax/10000
Combined error %FS ±0.020
Creep %FS/30min ±0.016
Temperature effect on sensitivity %FS/10℃ ±0.011
Temperature effect on zero %FS/10℃ ±0.015
Output sensitivity ( = FS ) mV/V 2.0±0.02
Input resistance Ω 460±50
Output resistance Ω 350±3.5
Insulation resistance MΩ ≥ 5000(50VDC)
Zero balance %FS ±1.0
Compensated temperature ℃ -10~+40
Operating temperature ℃ -35~+65
Excitation, recommended voltage V 5~12(DC)
Excitation maximum V 18(DC)
Safe overload of Emax 150
Ultimate overload of Emax 300
ATEX Class(Optional) II1G Ex ia IIC T4 II1D Ex iaD20 T73℃ II3G Ex nL II C T4

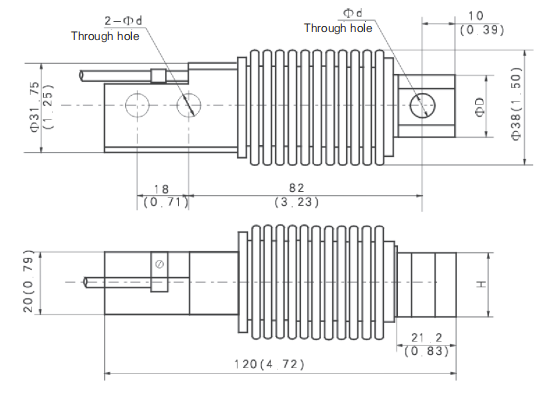

Dimensions in mm：


Capacity(kg)
Dimension		 5,10,20,30,50,75100,150,200,250 300,350,400,500
d 8.2 (0.32) 10.3 (0.41)
D 23 (0.91) 24 (0.94)
H 20 (0.79) 19 (0.75)



Wiring：

◎Both 4 and 6 conductor wires are available on customer’s requirements；

◎Cable diameter: Φ5±0.2mm；

◎Standard length for 4 conductor cable: 3m；

◎Standard length for 6 conductor cable: 6m；

◎Note: Connection of 6 conductor wires are as above. For 4 conductor wires the yellow and blue sense wires are removed；
