Short Description:

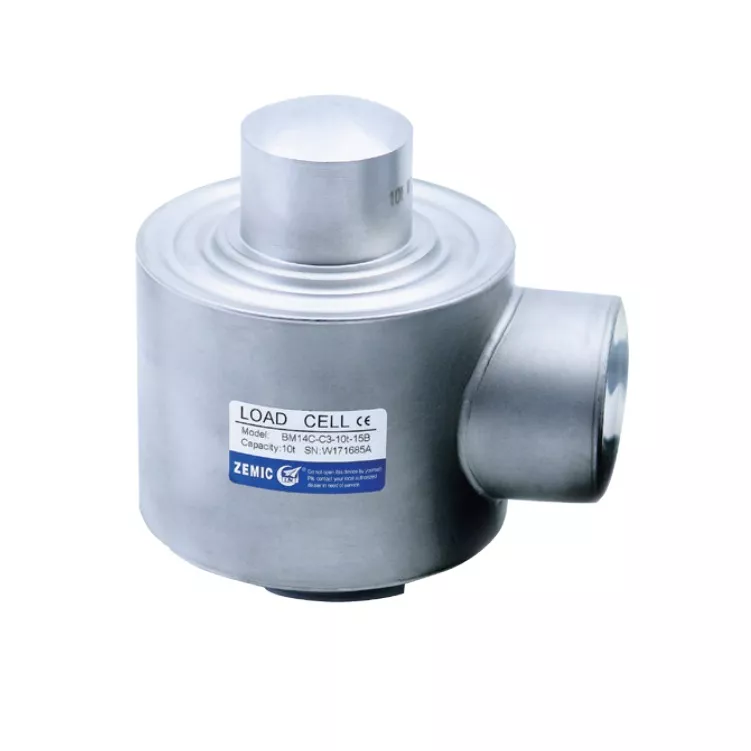

◎Stainless steel IP68 compression load cell；
◎Hermetically sealed；
◎Suitable for vehicle and hopper scales and vehicle testing facilities；
◎Built in surge arrestors；
◎High accuracy；
◎Current calibrated (sc-option)；

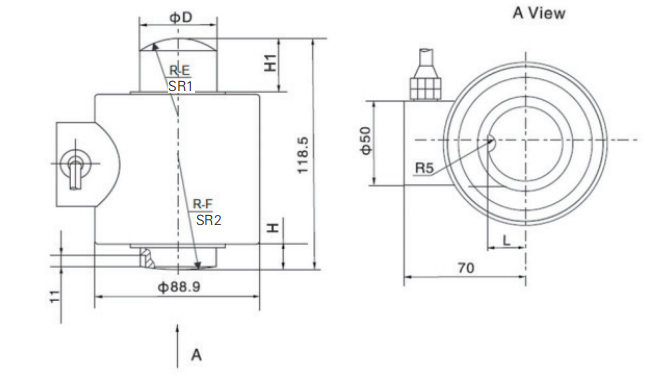

Dimensions in mm：
Available models：
Specification：
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ5mm；
◎Standard cable length : 15m；
◎Shield not connected to element；
| Model: | NF411 |
| Category： | Column Load Cells |
| Capacity: | 5,10,20,50,100kN |
| Rated Output: | 1.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP66 |
| Model: | NF401 |
| Category： | Column Load Cells |
| Capacity: | 10,20,30,50N |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robot, mold assembly and other industrial test, measurement and systems.
Material: stainless steel, Aluminum alloy
Size: Overload Protection High precision
Product description:
Capacity ：0~200kg
Stainless steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Compared with traditional column sensor, this structure achieve relatively high accuracy in terms of linearity, anti- side, torsional resistance, and azimuth error.
Buy a tension and compression column load cell online with optional capacities ranging from 1 kg, 5 kg, 10 kg, 20 kg, 50 kg, 100 kg up to 2 tons. This miniature column-type load cell accurately measures both tensile and compressive forces, ideal for use in testing machines, industrial automation, process control, and weighing systems.
Column load cell with flange type body combined is an excellent performance weight measurement device for 5 ton/10 ton to 30 ton load measurement optional. It is made of high-strength alloy steel, which is robust and ensures stable operation in harsh environments.
Product description:◆Capacity ：0~200N ◆ Stainless steel ◆High stability ◆ Can be installed in small spaces ◆ Stable anti-interference signal ◆ Compared with traditional column sensor, this structure achieve relatively high accuracy in terms of linearity, anti- side, torsional resistance, and azimuth error. ◆Widely used in automotive pressing, automatic assembly, 3C product testing, new energy product assembly, medical testing, machines Robot field, mold assembly and other industrial testing,motorizing equipment and testing field
With the characteristics of the wide range of measurements, safe and reliability, our column-type tension load cell is suitable for the measurement and control of electronic scales, lifting equipment and various force values.
It should be widely used in auto press assembly, automated assembly, and 3C product testing;New energy product assembly, medical testing, robot, mold assembly;And other industrial test, measurement and system, easy to install.It can also be used in push and pull gauges, various industrial weighing systems, etc., with high dynamic response frequency.
Material: stainless steel
Size: Low height, Plane loading
| Model: | NF407 |
| Category： | Column Load Cells |
| Capacity: | 0.5,1,2,3,5,10,20,50,100kN |
| Rated Output: | 1.5±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | 0.8/2kg |
| Model: | NF404 |
| Capacity: | 20,50,100,200,300,500,1000,2000N |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
| Model: | NF402 |
| Category： | Column Load Cells |
| Capacity: | 10,20,30,50,500,100,200,300,500N |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
