Short Description:

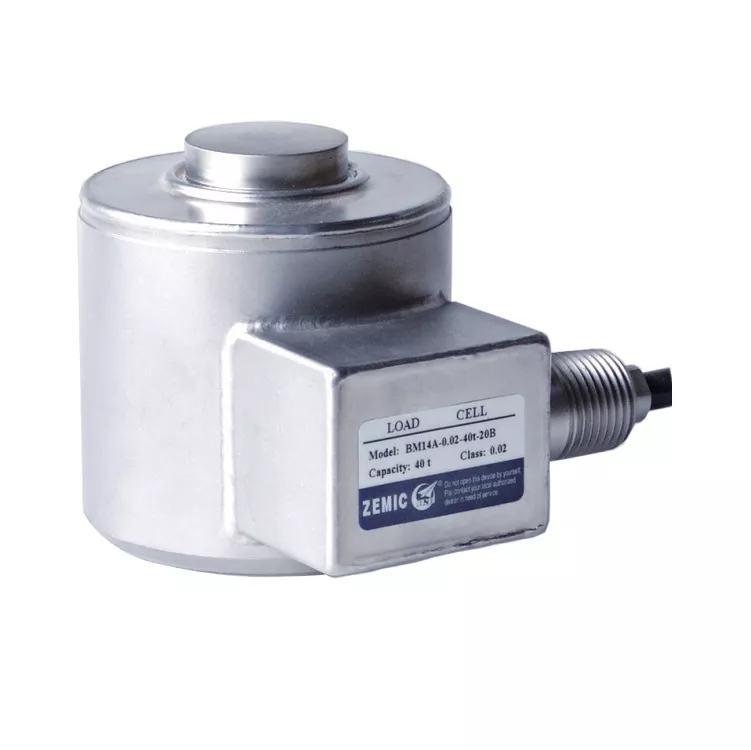

◎Stainless steel IP68 compression load cell；
◎Hermetically sealed；
◎Suitable for vehicle and hopper scales and vehicle testing facilities；
◎Built in surge arrestors；
◎Current calibrated (sc-option)；
Dimensions in mm：
| Dimension
Capacity |
ΦA |
B |
C |
ΦD |
E |
F |
G |
ΦH |
J |
SR |
| 10/25t |
73 (2.87) |
82.5 (3.25) |
12 (0.47) |
58 (2.28) |
7 (0.28) |
1.8 (0.07) |
64 (2.52) |
31.8 (1.25) |
M12 |
152 (5.98) |
| 40/60t |
105 (4.13) |
127 (5.0) |
34 (1.34) |
82.5 (3.25) |
9 (0.35) |
11 (0.43) |
87 (3.43) |
58.7 (2.31) |
M20 |
152 (5.98) |
| 100t |
152.4 (6.0) |
184 (7.24) |
72 (2.83) |
123.8 (4.87) |
23 (0.91) |
21 (0.83) |
108 (4.25) |
79.4 (3.13) |
M20 |
432 (17.01) |
| 200t |
167.6 (6.60) |
228.6 (9.0) |
92 (3.62) |
136.3 (5.37) |
10 (0.39) |
25 (0.98) |
123 (4.84) |
93.7 (3.69) |
M20 |
432 (17.01) |
Available models：
| Capacity |
Accuracy |
Full article description |
| 10t |
C3 |
BM14A-C3-10t-10B |
| 25t |
C3 |
BM14A-C3-25t-20B |
| 40t |
C3 |
BM14A-C3-40t-20B |
| 60t |
C3 |
BM14A-C3-60t-20B |
| 100t |
C3 |
BM14A-C3-100t-20B |
| 200t |
G1 Excluded from OIML |
BM14A-G1-200t-20B |
Specification：
| Accuracy class |
|
OIML R60 C3 |
G1 |
| Output sensitivity ( = FS ) |
mV/V |
2.0 ± 0.002 |
| Maximum capacity ( Emax ) |
t |
10, 25, 40 |
60, 100 |
200 |
| Maximum number of load cell intervals ( nLC ) |
|
3000 |
| Ratio of minimum LC verification interval Y = Emax / vmin |
|
9000 |
10000 |
|
| Combined error |
%FS |
± 0.023 |
± 0.100 |
| Minimum dead load |
t |
0 |
| Safe overload |
of Emax |
150 % |
| Ultimate overload |
of Emax |
300 % |
| Zero balance |
%FS |
± 1.0 |
| Excitation, recommended voltage |
V |
5 ~ 12( DC ) |
| Excitation maximum |
V |
18( DC ) |
| Input resistance |
Ω |
450 ± 5 |
| Output resistance |
Ω |
480 ± 5 |
| Insulation resistance |
MΩ |
≥ 5000 ( 50VDC ) |
| Compensated temperature |
℃ |
-10 ~+40 |
| Operating temperature |
℃ |
-35 ~ +65 |
| Storage temperature |
℃ |
-40 ~ +70 |
| Element material |
|
Stainless steel |
| Ingress protection (according to EN 60529) |
|
IP68 |
| ATEX classification (optional) |
|
II1G Ex ia IIC T4 |
II1D Ex iaD 20 T73℃ |
II3G Ex nL IIC T4 |
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ 7.7mm；
◎Standard cable length for 10t: 10m and for all other capacities: 20m；
◎Shield not connected to element；

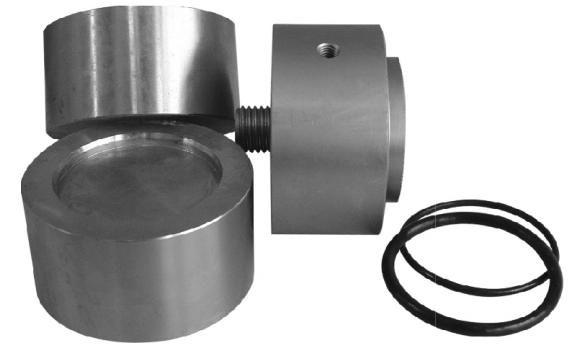

BM14A Part:
Features:
Easy installation, good self-aligning ability anti-reversal ability Stainless steel construction, anti-corrosion can be used under hazardous environments Mainly used for platform scales, automobile testing facilities, electronic truck scales and other electronic weighing devices;
lStainless steel Assembled with:BM14A
lM8 screw hole is for anti-reversal occasion;
