Xjcsensor / X-6AM-D9.5-H17-A / 6-axis Force Sensor

Stainless steel construction

The ZM2DW force sensor F, M utilizes independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.

Compact size

It is Also known as shear beam weighing sensor, its shape is mostly rectangular, and the strain zone is located in the middle of the sensor. The cantilever beam weighing sensor has the characteristics of simple structure, easy installation, reliable use, long service life, and high cost-effectiveness.
Cantilever beam weighing sensors are used in highway scales such as automobile scales, main axle load gauges, small weighing scales, and flat scales in industrial scales Platform scales, steel cylinder scales, and other fields have been widely used, generally using three or four sensors as a group.

LCT Miniature compression load cells are made of LCT’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LAA-ADA-A current is 3kg.The measuring accuracy is 1%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy of aviation standard.
LAA-ADA-A load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.

The ZM3DW 3 axis load cell utilizes independent wheatstone full bridge for Fx, Fy, Fz which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Cusotmaztion can consist of load cells with client’s outer dimension, mouting size, output signal etc. Used with Zhimin’s data logger which can collect load cell’s voltage signal and display force curve.

Compact size

The ZM3DW 3 axis load cell utilizes independent wheatstone full bridge for Fx, Fy, Fz which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Cusotmaztion can consist of load cells with client’s outer dimension, mouting size, output signal etc. Used with Zhimin’s data logger which can collect load cell’s voltage signal and display force curve.

Compact size

The ZMSGA provides good restraint to possible movement of the automation and in many cases. The load cell has overload preventer which can protect sensor under extrem overloding situtation. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSGA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.

Stainless steel

ZMMA-SS is small size force sensor for compression and tension. Widely used on automation machine and small force test purpose.

Features:

Both compression and tension

Stainless steel construction

The ZMSGA provides good restraint to possible movement of the automation and in many cases. The load cell has overload preventer which can protect sensor under extrem overloding situtation. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSGA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.

Stainless steel

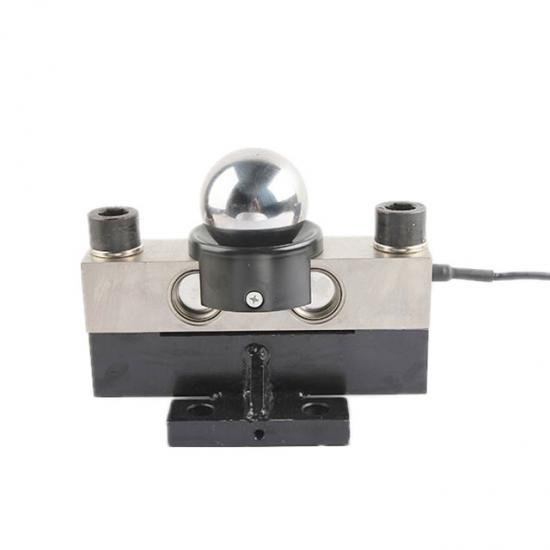

Weighbridge load cells also known as truck scales are designed for truck and rail scales. The ZMHBQ is common product widely used around the world. The ZMHBQ is very cost-effective with C3 class. In most of situations, they are used at 4,6 or 8 numbers together, so their sensitivity must be exact same.

Nickel plated alloy steel
