Technical Parameter
| Product Performance | |
| Long-Term Stability | ±0.2%FS/year(Not cumulative) |
| Accuracy | ±0.25%FS, ±0.5%FS(Optional) |
| Temp. Effect | 1.5%FS/100℃ |
| Comp. Temp. | -20℃~80℃ |
| Working Temp. | -20℃~60℃ |
| Zero Error | ±1%FS |
| Span Error | ±1%FS |
| Response Time | ≤5ms |
| Fatigue Life | More than 100 million designs |
| Physical Characteristics | |
| Pressure Interface | See Ordering Guide |
| Contact Parts | SS304, SS316L |
| Electrical Interface | M12x1 Aviation Plug-in 5PIN |
| Shell Protection | IP65 |
| Shock | EC 68-2-32 procedure I |
| Vibration | 40g, 20-2000Hz |
| Weight | About 200g |
| Environmental Data | |
| Certification | CE, RoHS |
| Current Output | |
| Output (2-wire) | 4-20mA 2-wire |
| Power Supply | 10-30Vdc |
| Triode output | |
| Output(4-wire) | PNP, NPN 4-wire |
| Power Supply | 12-30Vdc |
| Range | Proof Pressure(xFS) | Burst Pressure(xF |
| Kpa/bar | X-100SX | X-100SX |
| Vacuum | 5.0xFS | 10.0xFS |
| 5~100kpa | 2.0xFS | 5.0xFS |
| 200kpa~100bar | 2.0xFS | 3.0xFS |

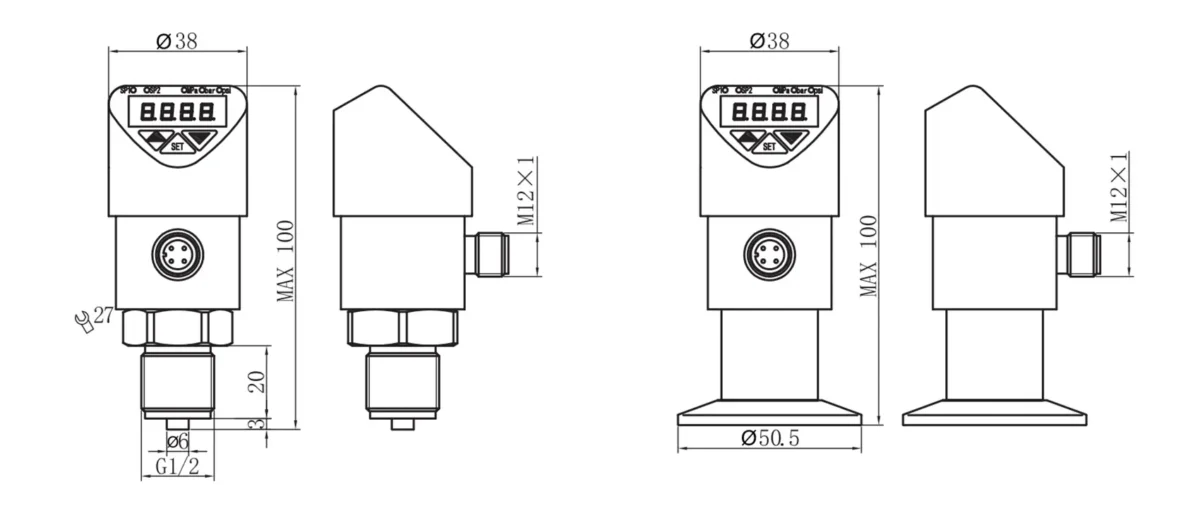

Dimension & Capacity
Application
Hydraulic, pneumatic equipment, pumps sets and other industrial control field applications.
Ordering Guide
Model: X-100SX-①②③④⑤
| Attention | Pressure Type | Range | Process connection | switch type | Accuracy |
| 1. Provide only 5pin
2. Standard 3 m 5-core cable 3. With»*»,please contact thetechnician |
=
Gauge pressure A=Absolute pressure |
Range
K=kPa B=bar M=MPa |
2G=G1/4
4G=G1/2 2N=1/4NPT 4N=1/2NPT 14M=M14x1.5 20M=M20x1.5 |
2PNP=2-way PNP
2NPN=2-way NPN |
=±0.5%FS
2=±0.25%FS |
