Technical Parameter
| Capacity(Optional) | 0.5N.m,1N.m | Material | Aluminum |
| Nonlinearity | ≤0.2% F.S. | Rated output | 0.5-2.5mV/V |
| Recommended excitation | 5-10VDC | Maximum excitation | 10V DC |
| Protection class | IP54 | Compensated temp range | -10~40°℃ |
| Hysteresis | ≤0.2% F.S. | Operating temp range | -20~80℃ |
| Repeatability | ≤0.2% F.S. | Insulation | ≥5000MΩ/100V(DC) |
| Input impedance | 350±10Ω | Output impedance | 350±10Ω |
| Creep(30min) | ≤0.2% F.S. | Temp effect on output | ≤0.5%F.S./10°℃ |
| Zero balance | ± 2% F.S. | Temp effect on zero | ≤0.5% F.S./10℃ |
| Safe load limit | 150%F.S. | Ultimate load limit | 200%F.S. |
| Cable size | Ø2x200mm | Fatigue life | Full scale more than 1 million times |
| Cable connection | Ex+:Red; Ex-:Black; Sig+: Green; Sig-:White | ||

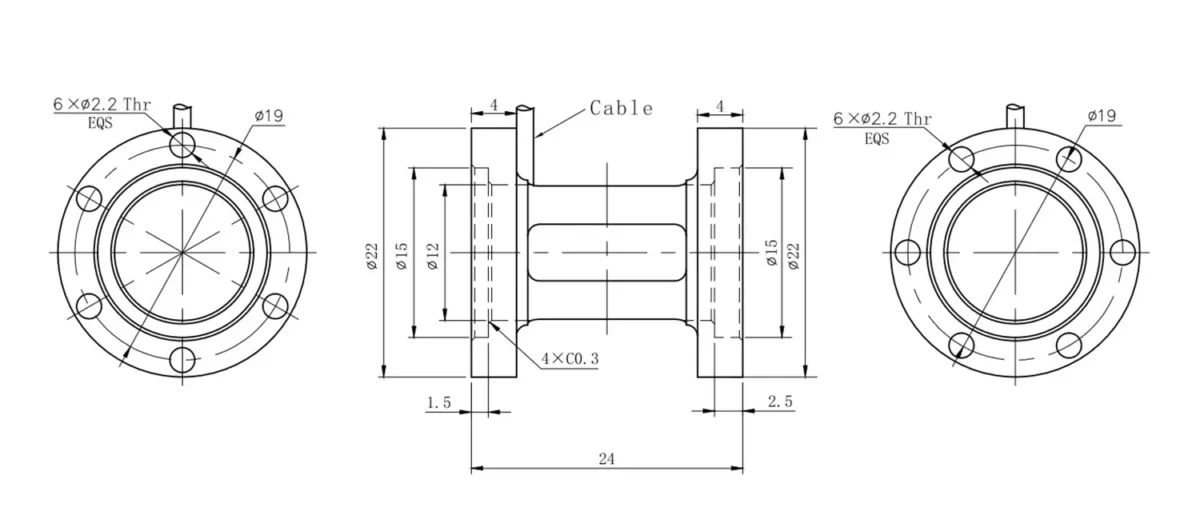

Dimension & Capacity
Application
It is suitable for force value detection or industrial automation, automotive industry, bolt tightening technology, electric motors, and pumps.
