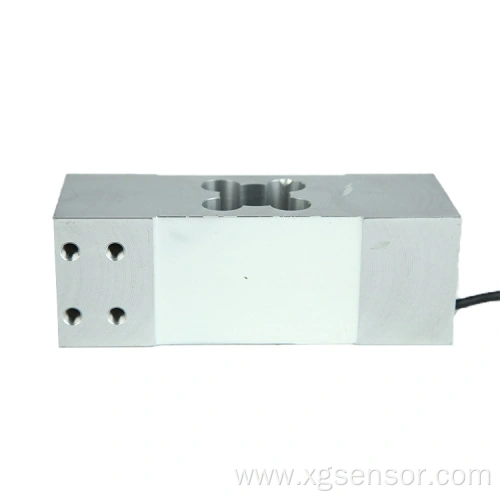

CZL629 Weighing Transducer Sensor Machine Load Cell 50kg
| Precision | C2 | Protection | IP65 |
| Comprehensive error(%F.S) | ±0.02/±0.017 | Safe overload (%F.S) | 120 |
| Rated output(mv/v) | 1.0±0.2 | Ultimate overload (%F.S) | 150 |
| Creep(%F.S/30min) | ±0.02/±0.017 | Temp. effect on span(%F.S/10℃) | ±0.02/±0.014 |
| Zero balance(%F.S) | ±1.0 | Temp. effect on zero(%F.S/10℃) | ±0.03/±0.017 |
| Input resistance(Ω) | 406±20 | Operating temp. range(℃ ) | -20~+80 |
| Output resistance(Ω) | 350±5 | Rated temp. range(℃ ) | -10~+60 |
| Insulation resistance(MΩ) | ≥5000(50VDC) | Excitation voltage(V) | 6~12(DC) |
1. Wide range of application: The sensor is suitable for different types of weighing equipment, such as platform scales, hopper scales, crane scales, truck scales, etc.
2. High precision: Weighing Transducer Sensor Machine Load Cell 50kg uses high-precision load resistance Strain Gauges, which can measure and convert small deformation signals, and the common accuracy can reach 0.03%.
3. Good static and dynamic performance: The sensor not only has good static performance, but also has good responsiveness in dynamic measurement, and can efficiently measure and evaluate the weight of items.
4. Strong load capacity: The measuring range of the sensor is suitable for measuring medium loads, and the common maximum load is 50kg.
5. Quick response: Weighing Transducer Sensor Machine Load Cell 50kg responds quickly, can measure weight changes in real time, and output signals to corresponding display screens or control systems.
6. Easy installation: The sensor is very simple to install and debug, and can be quickly fixed to the weighing equipment, making it ready for work immediately.
7. Easy maintenance: The cost of maintaining the sensor is very low, just need regular cleaning and calibration.
