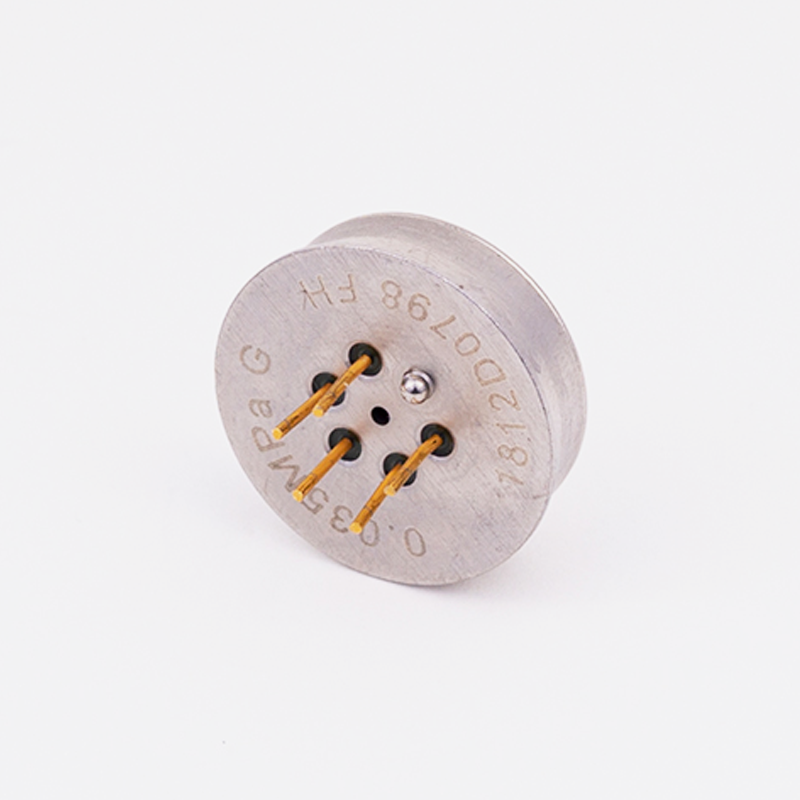

Industrial Pressure Sensor Φ17×5.5mm PC17(WT17)
Product Parameters
| Pressure range | |||
| Pressure range | -100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa (bar and psi unit available) | ||
| Pressure reference | Gauge pressure | ||
| Overpressure | 300%F.S. | ||
| Output signal | |||
| Output | 100mV(Typical) | ||
| Specification | |||
| Accuracy (linearity, repeatability and hysteresis) | ±0.25%F.S. (Typical) | ||
| Excitation | 1.5mA (Typical) | 5VDC | 10VDC | ||
| Compensated temp. | Without temperature compensation | ||
| Operating temp. | -40-125℃ | ||
| Storage temp. | -40-125℃ | ||
| Insulation resistance | ＞200Mohm/250VDC | ||
| Bridge resistance | Min. | Max. | Unit |
| 2600 | 5500 | ohm | |
| Long term stability | ≤0.2%F.S.S/year | ||
| Vibration | 20g (20-5000HZ) | ||
| Oil filling | Silicon oil (Typical) | Olive oil available for sanitary application | ||
| O-ring | NBR, Viton | ||
| Housing and diaphragm | Stainless steel 316L | ||
| Pin connection | Kovar pin (0.6um Gold platted) | ||
| Weight | 11g(approx) | ||
| Pin connection |
| Pin | Connection |
| 3 | excitation+ |
| 1 or 5 | excitation- |
| 2 | output+ |
| 4 | output- |
