9203 S-Force Sensor

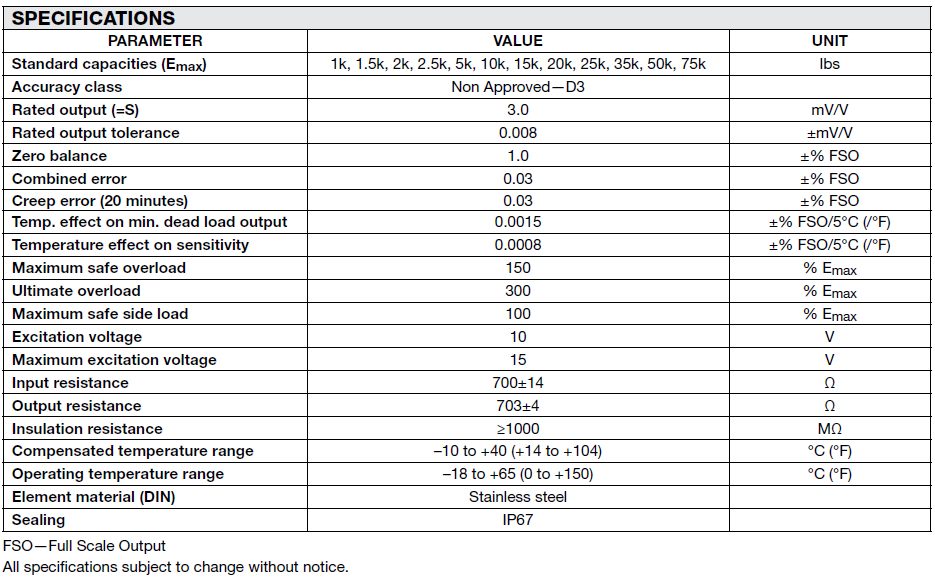

Technical parameters

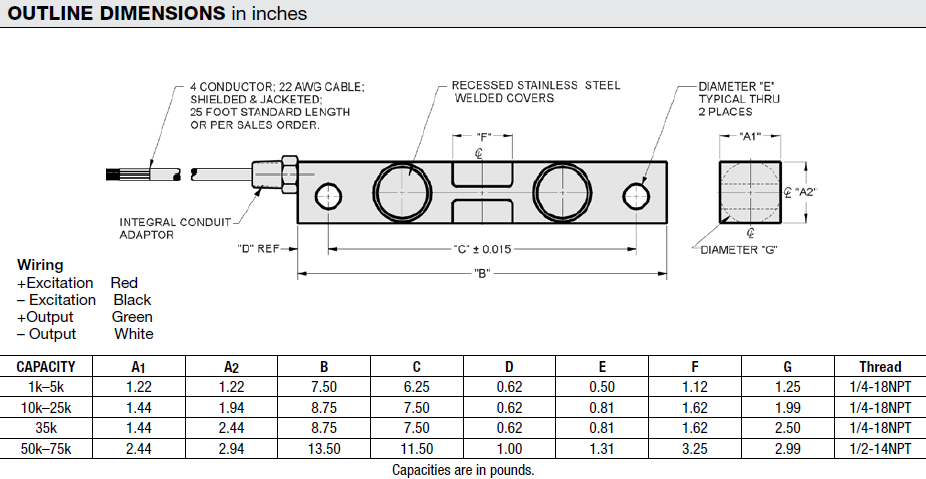

Dimensions
High precision, bidirectional bearing, easy to install. It is suitable for measuring and controlling the force value of batching scale, hook scale, electromechanical scale, packaging scale, material mechanics testing machine and other equipment.
The PSD-F1 Load Cell is a heavy-duty weighing component engineered exclusively for industrial bulk weighing equipment—ideal for integration into truck scales (floor scales) and hopper scales. Its robust cantilever-beam design, high-strength alloy steel build, and smart functional features ensure reliable, accurate weight measurement for heavy loads and bulk materials, making it a top choice for logistics, construction, chemical, and agricultural sectors.
Compression load cell is special designed for weight measurement, with compact structure, pouring sealant or welding seal, low height, all stainless steel, good anti-eccentric load performance and corrosion-resistant. Load cell can be applied for platform scale, truck scale, rail weighbridge and automated measurement and control areas.
Miniature load cell can bear both tension and compression force, with metal-foil strain gauge, all stainless steel, small size, 1.0±0.2mV/V sensitivity. Miniature tension and compression load cell is used for force tester, riveting machine, laminator and welding machine.
The PSD-X1 Load Cell is a tailored weighing solution designed for compact, precision-focused applications—ideal for integration into smart shelves, electronic price computing scales, and small-platform electronic scales. Its specialized cantilever-beam structure and lightweight yet durable build make it a reliable choice for retail, logistics, and small-scale industrial scenarios where space efficiency and accurate weight measurement are key.
High-quality S-type load cells for sale are used for tension and compression and are available in a variety of capacities from 200kg to 5 tons. Constructed of durable stainless steel with a sensitivity range of 2.0 to 3.0 ±10% mV/V and a response frequency of 1k Hz, it provides accurate measurements even in harsh conditions, making it a reliable and cost-effective choice for tension and compression measurements in industrial environments.
Tension and compression load cell can bear both tension and pressure, with good anti-eccentric load performance, low height, all sealed structure and complete specifications. Miniature load cell with optional capacity 1 kg/ 100kg/ 200 kg/ 300kg/ 500 kg is suited to use in restricted spaces, such as using in vehicle/test instrument/laminator measurement and control.
Tension and compression load cell can bear both tension and pressure, with good output symmetry, high eccentric load resistant, compact structure and complete specifications. Strain gauge load cell can be applied for batching scale, crane scales and other special weighing instruments.
Alloy steel material, cover plate sealing, suitable for hook scales and electronic weighing systems
● Alloy Steel Material
● Cover Plate Seal
● Suitable for Hook Scales
● Electronic Weighing System
With the function of anti-overload protection. High precision, bidirectional bearing, easy to install. It is suitable for measuring and controlling the force value of batching scale, hook scale, electromechanical scale, packaging scale, material mechanics testing machine and other equipment.
High precision, bidirectional bearing, easy to install. It is suitable for measuring and controlling the force value of batching scale, hook scale, electromechanical scale, packaging scale, material mechanics testing machine and other equipment.
The PSD-F6 Load Cell is a high-performance weighing component engineered for industrial bulk weighing—specialized for integration into belt scales (including skirted or standard belt conveyors) and hopper scales. Its unique bellows-type cantilever-beam structure, heavy-duty alloy steel build, and smart functional design ensure reliable, accurate weight measurement for dynamic or static bulk materials, making it ideal for mining, chemical processing, logistics, and agricultural sectors.
