VLSS-C Sub-miniature Button Load Cell (Overload Protection)
Specifications
| Rated output | 0.700–1.300mV/V |
|---|---|
| Nonlinearity | ±0.3%R.C. |
| Hysteresis | ±0.3%R.C. |
| Repeatability | ±0.3%R.C. |
| Zero balance | −0.100–0.100mV/V |
| Temperature effect on zero balance | ±0.3%R.C./10°C |
| Temperature effect on load | ±0.1%R.C./10°C |
| Safe overload rating | 150%R.C. |
| Ultimate overload rating | 500%R.C. |
| Temperature compensation range | 0–60°C (No condensation or freezing) |
| Safe temperature range | −10–60°C (No condensation or freezing) |
| Input terminal resistance | 380.0–440.0Ω |
| Output terminal resistance | 345.0–355.0Ω |
| Recommended excitation voltage | 6V or less |
| Insulation resistance | 1000MΩ or more (DC 50V) (Bridge–Housing) |
| IP rating | Equivalent to IP50 (Main body only) (Note 1) |
| Cable | φ1.8mm 4-core Shielded cable 1.5m, directly-connected |
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Selection | Model | Rated capacity | Deflection at R.C. | Weight |
|---|---|---|---|---|
| VLSS-2NC | 2N | Approx. 0.04mm | Approx. 12g | |
| VLSS-5NC | 5N | Approx. 0.03mm |
- *Weight includes cable.

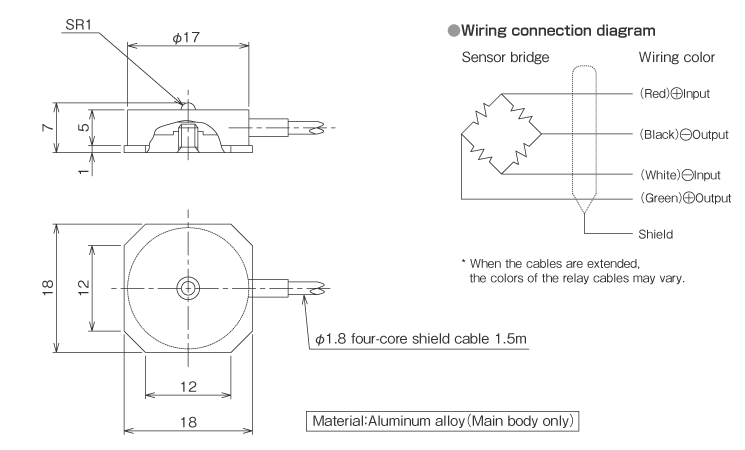

External dimensions (Unit: mm)
