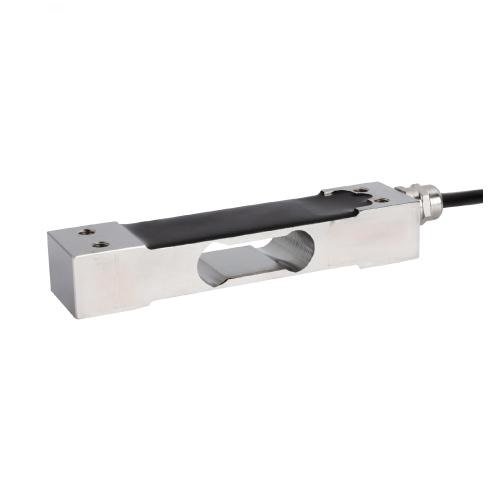

SP530S SINGLE POINT LOAD CELL
| Parameter | Units | Specifications | |
| Model No. | SP530S | ||
| Rated capacity (Emax) | kg | 10 / 30 / 50 | |
| Accuracy class 1)2) | C3 C6 | ||
| Min. dead load | kg | 0 | |
| Rated output | mV/V | 2.0 ± 0.2 | |
| Zero balance | % of Emax | ＜ ± 2 | |
| Repeatability error | % of AL | ＜ ± 0.010 ＜ ± 0.005 | |
| Creep; 30 minute | % of AL | ＜ ± 0.017 ＜ ± 0.0083 | |
| Min. dead load output return (DR); 30 min | % of AL | ＜ ± 0.017 ＜ ± 0.0083 | |
| Temp. effect on | Min. dead load output | % of Emax/℃ | ＜ ± 0.0020 ＜ ± 0.0014 |
| Rated output 2) | % of AL/℃ | ＜ ± 0.0012 ＜ ± 0.0006 | |
| Temperature range | Compensated | ℃ (°F) | -10 to +40 [+14 to +104] |
| Operating | -40 to +65 [+40 to +149] | ||
| Safe storage | -30 to +80 [-40 to +176] | ||
| Excitation voltage | Recommended | V AC/DC | 5 ~ 15 |
| Maximum | 15 | ||
| Terminal resistance | Excitation | Ω | 384 ± 5 |
| Output | 350 ± 3 | ||
| Insulation resistance @50VDC | MΩ | ＞5000 | |
| Breakdown voltage | V AC | ＞500 | |
| Seal type / IP rating | Surface potting black silicon / IP67 | ||
| Load limit | Safe | % of Emax | 150 |
| Ultimate | 300 | ||
| Material | Spring element | Stainless steel, electropolishing | |
| Cable connector | Stainless steel, electropolishing | ||
| Cable | Φ5.6; 4-wire; PVC | ||
| Cable length | m | 3.0 | |
| Maximum platform size | mm | 300 × 350 | |
| Weight; approx | kg | 0.6 | |
| Fatigue life | cycles @Emax | ＞1,000,000 | |
| Deflection at Emax; approx | mm | ＜ 0.5 | |
| Notes: | |||
| 1) Error due to combined effect of non-linearity and hysteresis | |||
| 2) Temperature effect errors comply with OIML R60 and NIST HB44 | |||
| 3) AL = Applied Load | |||
