UTILCELL / SP1263 SINGLE POINT LOAD CELL

Product description:

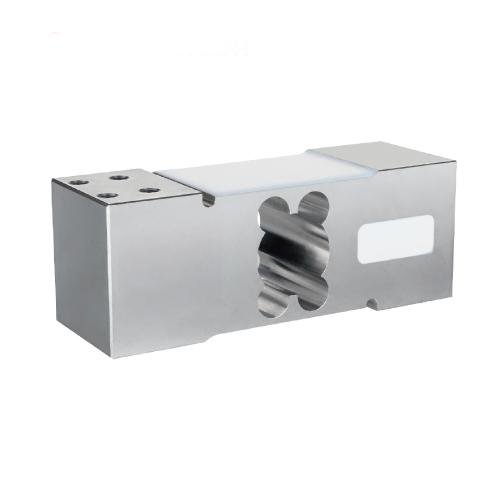

SP1263 is a typical and standard aluminum single point load cell that is with large capacity by 750kg and ideal for a wide range of weighing equipment. Environmentally sealed with potting compound to ensure reliability and durability. The industry standard size and mounting hole configuration makes the SP1263 is suitable for large-size platform by 600*600mm, or as a replacement for existed weighing equipment.

Except for common applications of weighing equipment, it is also can be used for force measurement for controlling.

Main Features:

• Material: Aluminum

• Rated Capacities: 100kg~750kg

• OIML R60, NTEP HB44, CPA, CE and RoHS certified

• IP Rating: IP66

• Suitable for single and double load cell structural platform scales

• Max platform size: 600*800mm

Category: Single Point

Add to Wishlist
Share it:

SP1263 SINGLE POINT LOAD CELL

Parameter Units Specification
Model No. SP1263
Rated capacity (Emax) kg 100 / 150 / 200 / 300 / 500 / 750
Accuracy class C3                            C6
Min. dead load kg 0
Rated output mV/V 2.0 ± 0.2
Zero balance % of Emax ± 2
Repeatability error % of AL 3) ＜ ± 0.010              ＜ ± 0.005
Creep; 30 minute % of AL ＜ ± 0.017              ＜ ± 0.0083
Min. dead load output return (DR); 30 min % of AL ＜ ± 0.017              ＜ ± 0.0083
Temp. effect on Min. dead load output % of Emax/℃ ＜ ± 0.0020              ＜ ± 0.0014
Rated output 2) % of AL/℃ ＜ ± 0.0012              ＜ ± 0.0006
Temperature range Compensated ℃(°F) -10 to +40 [+14 to +104]
Operating -10 to +50 [+14 to +122]
Safe storage -30 to +70 [-22 to +158]
Excitation voltage Recommended V AC/DC 5 ~ 15
Maximum 15
Terminal resistance Excitation Ω 403 ± 5
Output 350 ± 3
Insulation resistance @50VDC MΩ ＞5000
Breakdown voltage V AC ＞500
Seal type / IP rating potted silicon sealed / IP66
Load limit Safe % of Emax 150
Ultimate 300
Material Spring element Aluminum, anodizing
Cable Φ5.6; 4-wire; PVC
Cable length m 3.0
Maximum platform size mm 600*600
Offer center load error (OIML R76) % of AL/cm ＜ ± 0.0019
Fatigue life cycles@Emax ＞1,000,000
Deflection at Emax; approx mm ＜0.5
Weight; approx kg 1.7
Barometric pressure effect on Zero Output Vmin/kPa ＜1.0
Mounting screw Size/Grade M8 / 8.8
Recommended torque N.m 100-300kg: 25;   500-750kg: 30
Notes:
1) Error due to the combined effect of non-linearity and hysteresis
2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44
3) AL = Applied Load
