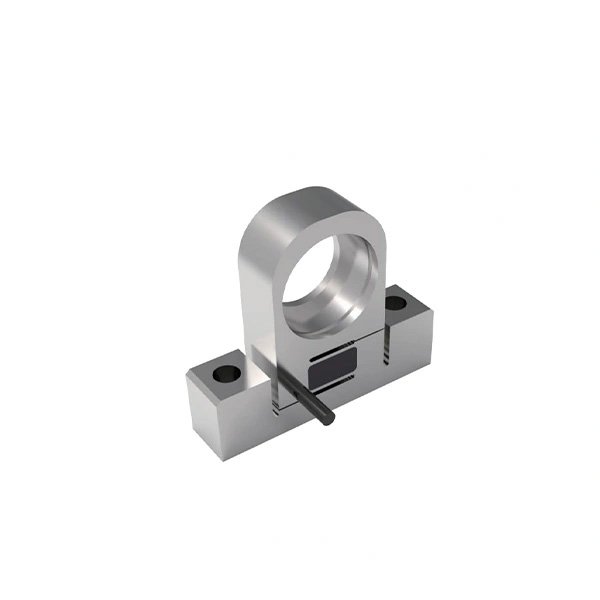

SL966 30kg Pillow Block Tension Sensor
Technical Specifications
| Specfications | Technique | Specfications | Technique |
| Capacity | 30kg | Temp.effect on zero | 0.035%F.S/10℃ |
| Sensitivity | 2.0±10%mV/V | Insulation Resistance | ≥5000M2/100V(DC) |
| Zero Balance | ±0.03mV/V | Recommended Excitation | 5~12V |
| Creep | ≤0.1%F.S | Max Excitation | 15V |
| Non-linearity | <0.1%F.S | Compensated Temp Range | -10~40℃ |
| Hysteresis | ≤0.1%F.S | Operating Temp Range | -30~70℃ |
| Repeatability | ≤0.1%FS | Safe Overload | 150%F.S. |
| Input Impedance | 358±20Ω | Ultimate Overload | 200%ES |
| Output Impedance | 350±10Ω | Cable Size | φ3x4000mm |
| Temp.effect on output | 0.05%F.S./10℃ | IP Class | IP66 |
| Wiring | Red:EXC+,Green:Sig+,Yellow:Shielding wire,White:Sig-,Black:EXC- | ||
Product Dimensions
Installation size
