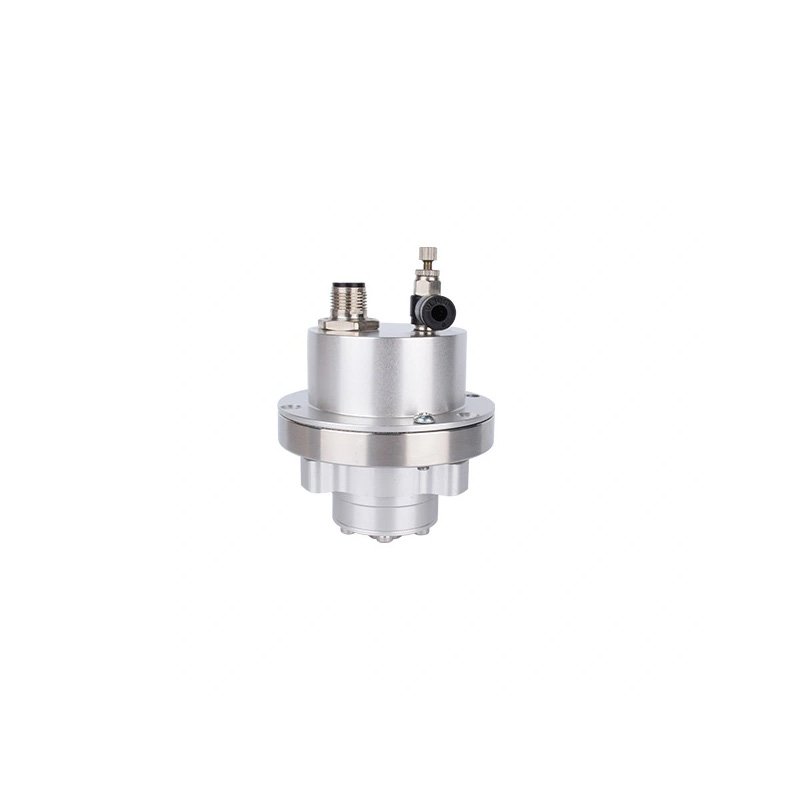

SL905-3 Online Tension 38N Sensor
Technical Specifications
| Specfications | Technique | Specfications | Technique |
| Capacity | 38N | Temp.effect on zero | 0.05%E.S./10℃ |
| Sensitivity | 0.6±10%mV/V | Insulation Resistance | ≥5000M2/100V(DC) |
| Zero Balance | ±1%mV/V | Recommended Excitation | 5~12V |
| Creep | ≤0.05%F.S | Max Excitation | 15V |
| Non-linearity | ≤0.1%E.S. | Compensated Temp Range | -10~40℃ |
| Hysteresis | ≤0.3%F.S. | Operating Temp Range | -20~60℃ |
| Repeatability | ≤0.05%F.S. | Safe Overload | 150%F.S |
| Input Impedance | 350±20Ω | Ultimate Overload | 200%F.S |
| Output Impedance | 350±10Ω | Cable Size | Aviation plug |
| Temp.effect on output | 0.05%F.S./10℃ | Material | Aluminium alloy |
| Wiring | Red:EXC+,Green:Sig+,Yellow:Shielding wire,White:Sig-,Black:EXC- | ||
Product Dimensions
Installation size
Load Direction
