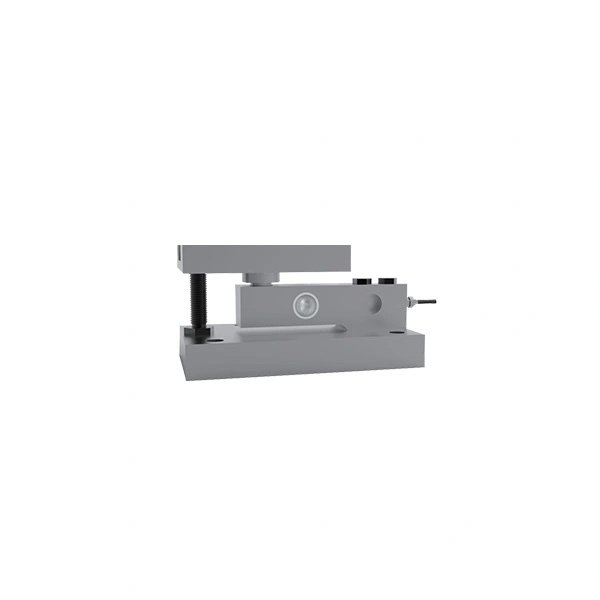

SL801 Industrial Weighing Module
Capacity: 0.25-2,5,10,15,20T
Category: Weighing Module
For customised ranges, accuracy, dimensions and other parameters, please contact us.
 |
Product Features▶ Stainless steel weighing sensor module, IP68 protection level can be used in various harsh environments ▶ Self-stabilizing pressure head design, always maintain the correct loading position, good weighing repeatability ▶ Equipped with adjustable horizontal limit bolt ▶ Simple and fast installation ▶Easy maintenance, saving downtime for maintenance ▶ Suitable for weighing and process weighing control in harsh environments such as conveyor roller scales and other occasions with horizontal impact forces |
Technical Specifications
| parameter | Technical Indicators |
| Nominal range | 0.25-20t |
| Output Sensitivity | 2.0/3.0±10%mV/V |
| Zero output | ±0.02mV/V |
| Creep | ≤0.03%F.S. |
| Nonlinear | ≤0.03%F.S. |
| Lag | ≤0.03%F.S. |
| Repeatability | ≤0.03%F.S. |
| Input resistance | 385±15Ω |
| Output resistance | 350±5Ω |
| Temperature Sensitivity Drift | 0.025%F.S./10℃ |
| Zero Temperature Drift | 0.025%F.S./10℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Excitation voltage | 10V |
| Maximum excitation voltage | 15V |
| Temperature compensation range | -10~60℃ |
| Operating Temperature Range | -20~80℃ |
| Safe Overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable Wire Size | φ5X6000mm |
| Material | Stainless steel/alloy steel |
| Protection class | IP65 (<500kg); IP68 (≥500kg) |
| Wiring method | Red: Power+, Green: Signal+, Yellow: Shielded, White: Signal-, Black: Power |
Product Dimensions
Installation size
