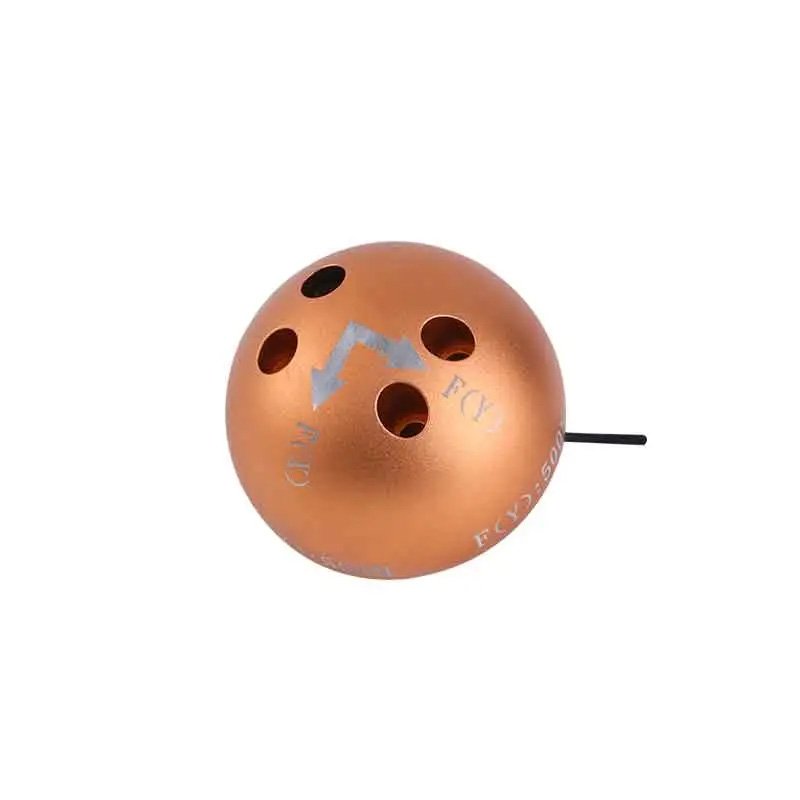

SL708 3 Dimensional Force Sensor
 |
Product FeaturesMulti-axis force sensor is a kind of force sensor which can measure the force and torque components in more than two directions simultaneously. Multi — axis force sensors are divided into two — axis force sensors, three — axis force sensors and six — axis force sensors. The three-axis force sensor can simultaneously detect the change of force value in three directions, X axis, Y axis, Z axis (vertical force), and output three groups of voltage signals. Three-dimensional force sensor, high-speed sampling, high-speed dynamic response, anti-interference, long-term stable performance, sensitive response; |
Technical Specifications
| parameter | Technical Indicators |
| Nominal range | 50kg |
| Output Sensitivity | 1.5±10%mV/V |
| Zero output | ±1%F.S |
| Interference error | ≤0.5%F.S. |
| Nonlinear | ≤0.5%F.S. |
| Lag | ≤0.5%F.S. |
| Repeatability | ≤0.5%F.S. |
| Input resistance | 720±20Ω |
| Output resistance | 700±10Ω |
| Temperature Sensitivity Drift | 0.1%F.S./10℃ |
| Zero Temperature Drift | 0.1%F.S./10℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Excitation voltage | 5~12V |
| Maximum excitation voltage | 15V |
| Temperature compensation range | -10~60℃ |
| Operating Temperature Range | -20~80℃ |
| Safe Overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable Wire Size | Ø2X3000mm |
Product Dimensions
Installation size
Load Direction
Accurate measurement with matching display
The output of the force measuring and weighing sensor itself is an MV signal, which needs to be amplified and convertedto display numerical values or output signals to the upper computer, PLC, etc.
