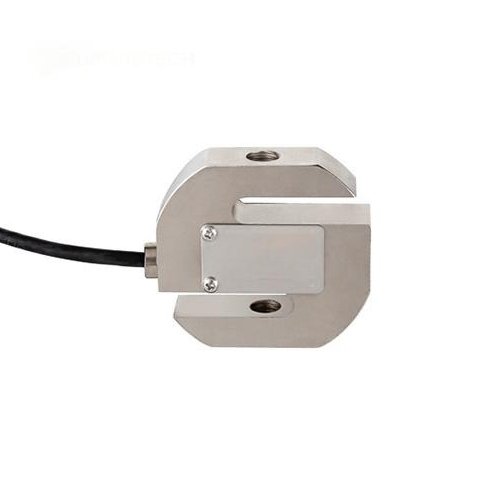

S530S S-BEAM LOAD CELL
| Parameter | Units | Specification | |||
| Model No. | S530S | ||||
| Rated capacity (Emax) | t | 0.3; 0.5; 1; 2; 3; 5 | |||
| Min. dead load | kg | 0 | |||
| Rated output | mV/V | 2.0 ± 0.002 | |||
| Zero balance | % of Emax | ± 1 | |||
| Combined error 1)2) | % of Emax | ＜ ± 0.017 | |||
| Repeatability error | % of AL 3) | ＜ ± 0.010 | |||
| Creep; 30 minute | % of AL | ＜ ± 0.017 | |||
| Min. dead load output return (DR); 30 min | % of AL | ＜ ± 0.017 | |||
| Temp. effect on | Min. dead load output | % of Emax/℃ | ＜ ± 0.0023 | ||
| Rated output 2) | % of AL/℃ | ＜ ± 0.0020 | |||
| Temperature range | Compensated | ℃(°F) | -10 to +40 [+14 to +104] | ||
| Operating | -30 to +65 [-22 to +149] | ||||
| Safe storage | -40 to +80 [-40 to +176] | ||||
| Excitation voltage | Recommended | V AC/DC | 5 ~ 15 | ||
| Maximum | 15 | ||||
| Terminal resistance | Excitation | Ω | 382 ± 5 | ||
| Output | 350 ± 3 | ||||
| Insulation resistance @50VDC | MΩ | ＞5000 | |||
| Breakdown voltage | V AC | ＞500 | |||
| Seal type / IP rating | Cap. ≤1t: Silicon rubber / IP66 | ||||
| Cap. ≥2t: Hermetically welded / IP68 | |||||
| Load limit | Safe | % of Emax | 150 | ||
| Ultimate | 300 | ||||
| Material | Spring element | Stainless steel | |||
| Cable | Φ5; 4-wire; PVC | ||||
| Cable length | m | 3.0 | |||
| Weight; approx | kg | ≤0.5t | 1t | 2-5t | |
| 0.7 | 0.9 | 2.0 | |||
| Fatigue life | cycles @Emax | ＞1,000,000 | |||
| Deflection at Emax; approx | mm | ＜0.5 | |||
| Barometric pressure effect on Zero Output | Vmin/kPa | ＜1.0 | |||
| Notes: | |||||
| 1) Error due to the combined effect of non-linearity and hysteresis | |||||
| 2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44 | |||||
| 3) AL = Applied Load | |||||
