TJP-3 Cavityless Strain Gauge Pressure Sensor
Specification of TJP-3 Strain Gauge Pressure Sensor
| Technical Parameter | |
| Rated Load | 5~300 Mpa |
| Comprehensive Precision | 0.3~0.5% FS |
| Sensitivity | 1.0~1.5 mV/V |
| Creep | ±0.05% FS/30min |
| Zero Output | ±2% FS |
| Temperature Effect On Zero | ±0.05% FS/10℃ |
| Temperature Effect On Output | ±0.05% FS/10℃ |
| Operating Temperature Range | -20~+65 ℃ |
| Threaded Connecting | M20×1.5 or Other Forms |
| Resistance | 350 or 1000 Ω |
| Long Term Stability | ≤±0.3FS/year |
| Insulation Resistance | ＞5000 MΩ |
| Safe Load Limit | 150% FS |
| Bridge Voltage | Reference 10V DC |
| Material | Stainless Steel |
| Load Cell Mode Of Connection | Input+: Red |
| Input-: Black | |
| Output+: Green | |
| Output-: White | |

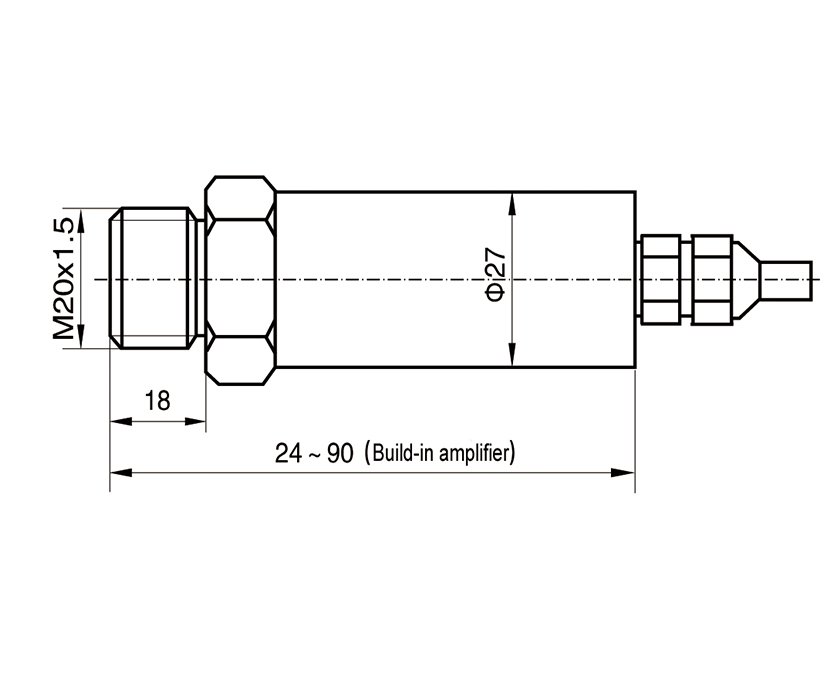

Dimension Drawing of Cavityless Strain Gauge Pressure Sensor
