General Purpose Compression Pancake Load Cell PNC720 Series

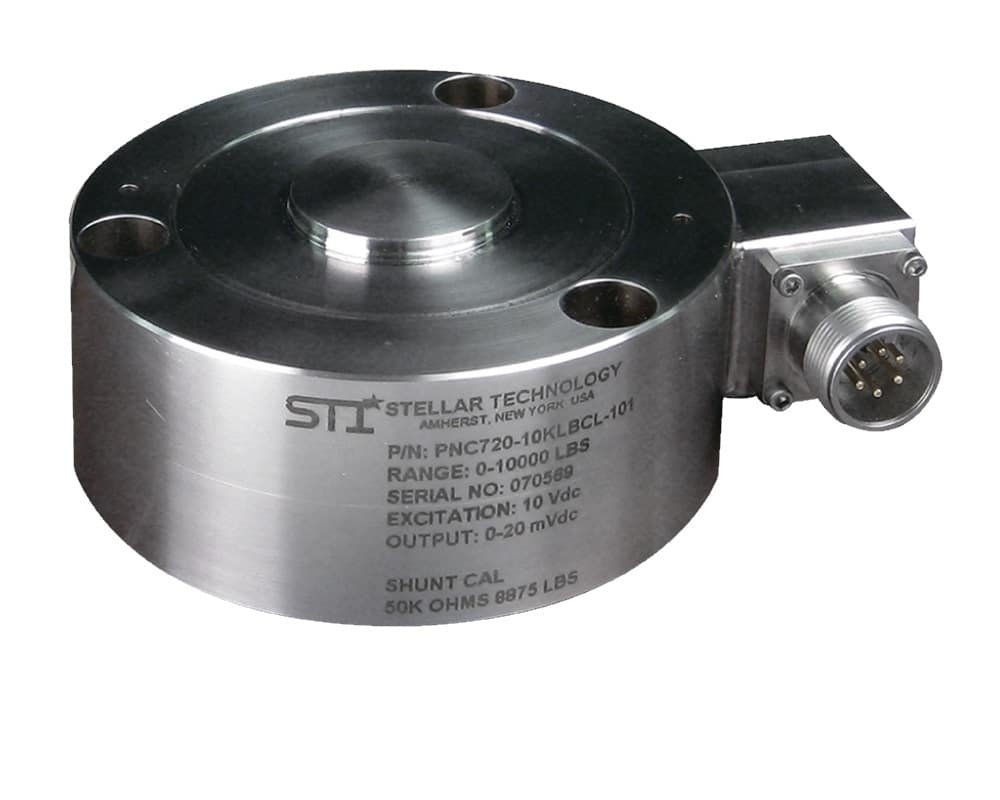

The PNC720 general purpose compression pancake load cell from Stellar Technology, offers maximum load ranges from 100lbs to 120k lbs with an accuracy of ±0.1% FSO (linearity) and hysteresis of 0.08% FSO. These load cells incorporate an integral spherical load button with welded dual diaphragms for improved accuracy and rigidity. The PNC720 series from Stellar Technology are constructed of all welded stainless steel for very demanding application environments, with bolt-on or welded-on stainless steel electrical connectors as standard.
- General purpose compression load cell
- Low profile design
- Maximum load ranges from 100lbs to 120k lbs
- Temperature range −65°F (-53.89°C) to +250°F (+121.1°C)
- High accuracy of ±0.1% FSO BFSL (linearity)
- Electrical output of 3mV/V ±50% FSO
- All welded stainless steel construction
- Temperature effect on zero of ±0.002% FSO/°F
- Temperature effect on span of ±0.002% reading/°F
- Zero balance of ±1% FSO
- Barometric compensation, shock and vibration protection
- Each unit comes with a 5 point calibration record traceable to NIST
Optional features for the Stellar Technology PNC720 series include:
- Customer specified electrical termination
- Metric versions
- Customer specified electrical termination
- Overload stops
- Internal amplifier for high level analog and/or digital output
- Special calibration
- Dual/triple bridges
- Operating Temperature range −320°F (-195.56°C) to +400°F (+204.4°C)
- Submersible versions to 30,000ft (9,144m) in seawater
Potential markets for the Stellar Technology PNC720 series include:
- Aerospace, defence systems
- Alternative energy, industrial automation
- Medical and pharmaceutical, power generation
- Oil and Gas, process
- Subsea, test and measurement
- Transportation and automotive
Specifications
| Weight | 0.00000 kg |
|---|---|
| Dimensions | 0.00 x 0.00 x 0.00mm |
| Accuracy | ±0.1% FS |
| Capacity | Customised Product, 100 lbs, 250 lbs, 500 lbs, 1k lbs, 2k lbs, 5k lbs, 10k lbs, 20k lbs, 50k lbs |
| Options | Standard Capacity |
| Output | 3mV/V |
| Series / Model | PNC7xx |
| Temperature Range (°C) | -53.9 to +121.11°C |
Product Variations
| SKU | Capacity | Options |
|---|---|---|
| Stellar Technology PNC720 Series | 100 lbs | Standard Capacity |
| Stellar Technology PNC720 Series | 10k lbs | Standard Capacity |
| Stellar Technology PNC720 Series | 1k lbs | Standard Capacity |
| Stellar Technology PNC720 Series | 20k lbs | Standard Capacity |
| Stellar Technology PNC720 Series | 250 lbs | Standard Capacity |
| Stellar Technology PNC720 Series | 2k lbs | Standard Capacity |
| Stellar Technology PNC720 Series | 500 lbs | Standard Capacity |
| Stellar Technology PNC720 Series | 50k lbs | Standard Capacity |
| Stellar Technology PNC720 Series | 5k lbs | Standard Capacity |
| Stellar Technology PNC720 Series | Customised Product | Standard Capacity |
