The ZM2DW force sensor F, M utilizes independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.
Features:
F from 20N to 2000N
M from 1N.m to 50N.m
Low crosstalk
Compact size
Optional features:
0-5V output signal
Динамический датчик крутящего момента — это высокоточный измерительный прибор, способный измерять выходной крутящий момент и мощность вращающегося силового оборудования.
Он широко применяется для тестирования крутящего момента и мощности таких вращающихся силовых установок, как электродвигатели, двигатели внутреннего сгорания, а также для измерения крутящего момента и мощности механических компонентов, таких как вентиляторы, водяные насосы, коробки передач и динамометрические ключи.
Динамический датчик крутящего момента — это высокоточный измерительный прибор, способный измерять выходной крутящий момент и мощность вращающегося силового оборудования.
Он широко применяется для тестирования крутящего момента и мощности таких вращающихся силовых установок, как электродвигатели, двигатели внутреннего сгорания, а также для измерения крутящего момента и мощности механических компонентов, таких как вентиляторы, водяные насосы, коробки передач и динамометрические ключи.

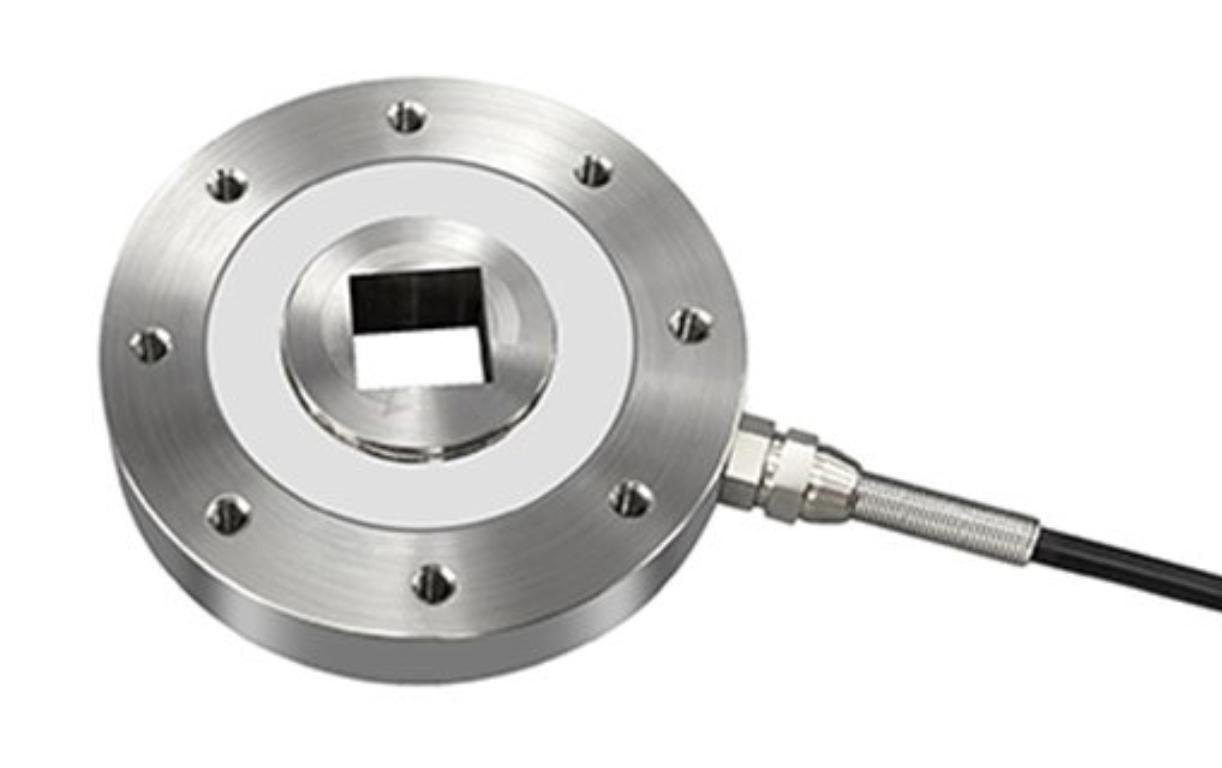

100,200,1000,2000,3000N.m Or Customized Static Torque Sensor Force Torque Sensor FA625B belongs to FA625 which belongs to Static Torque Sensor of Force Torque Sensor category, FA625B can be used to measure Static Torque force 100N.m,200N.m,1000N.m,2000N.m and 3000N.m or customized capacity, its Cable size is ⌀6x4500mm or can be customized.
1,2,3,5,10,20,30,50,100,200Nm Or Customized Dynamic Torque Sensor FA607B is a model of our brand FIBOS FA6-Series, FA607B belongs to FA607 which is from Torque Force Sensor, it can be used to measure Torque Force 1N.m, 2N.m, 3N.m, 5N.m, 10N.m, 20N.m, 30N.m, 50N.m, 100N.m, 200N.m or customized capacity, its Creep(30min) and Repeatability both same ≤0.1%F.S. or can be customized, its Non-linearity and Hysteresis both same ≤0.2%F.S. or also can be customized.
The ZHKY901 is a rugged non-contact type torque sensor ideal for high torque applications with maximum of 300kN·m. The ZHKY901 is built with a stainless steel shaft and an aluminum body that can high capacities at high speeds of up to 8000RPM.
ZHKY901은 최대 300kN·m의 고토크 어플리케이션에 적합한 견고한 비접촉식 토크 센서입니다. ZHKY901은 스테인리스 스틸 샤프트와 알루미늄 바디로 제작되어 최대 8000RPM의 고속에서도 높은 성능을 발휘합니다.
0.1-500N.m IP66 dynamic torque sensor FA604 is a model of our brand FIBOS FA6-Series, it belongs to torque sensor, FA604 can be used to measure torque force 0.1N.m, 0.2N.m, 0.3N.m, 0.5N.m, 1N.m, 2N.m, 3N.m, 5N.m, 10N.m, 20N.m, 30N.m, 50N.m, 100N.m, 200N.m, 300N.m and 500N.m capacity, its Creep(30min) and Repeatability both same ≤0.1%F.S., its Non-linearity and Hysteresis both ≤0.2%F.S..
The ZHKY2050 is a compact non-contact type torque sensor ideal for low torque applications with maximum of only 5N·m. The ZHKY2050 can still handle up to 8000RPM so it is for systems that require high speed.
0.5,1,2,3,5,10,20,30,50,100,200,300,500kN.m or customized Static Torque Sensor Force Torque Sensor FA625A belongs to FA625 which is in Static Torque Sensor of Force Torque Sensor category, FA625A can be used to measure Static Torque force 0.5kN.m,1kN.m,2kN.m,3kN.m,5kN.m,10kN.m,20kN.m,30kN.m,50kN.m,100kN.m,200kN.m,300kN.m and 500kN.m or customized capacity.
The ZHKY2050B is a compact slip ring type torque sensor ideal for high torque applications. This sensor is designed to be rugged so that it can handle a maximum of up to 500N·m at 8000RPM.
