Product Description

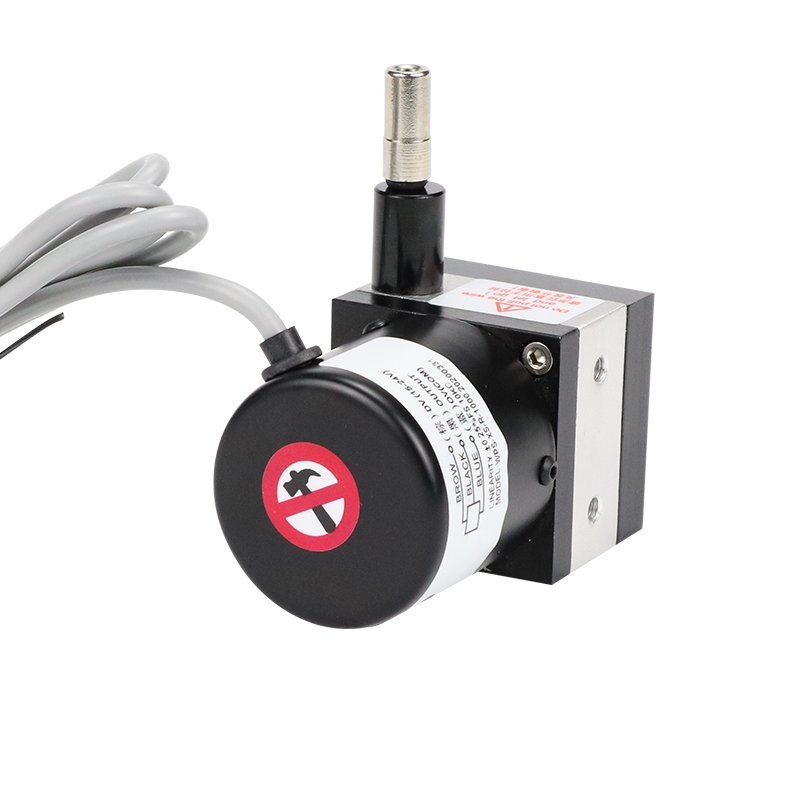

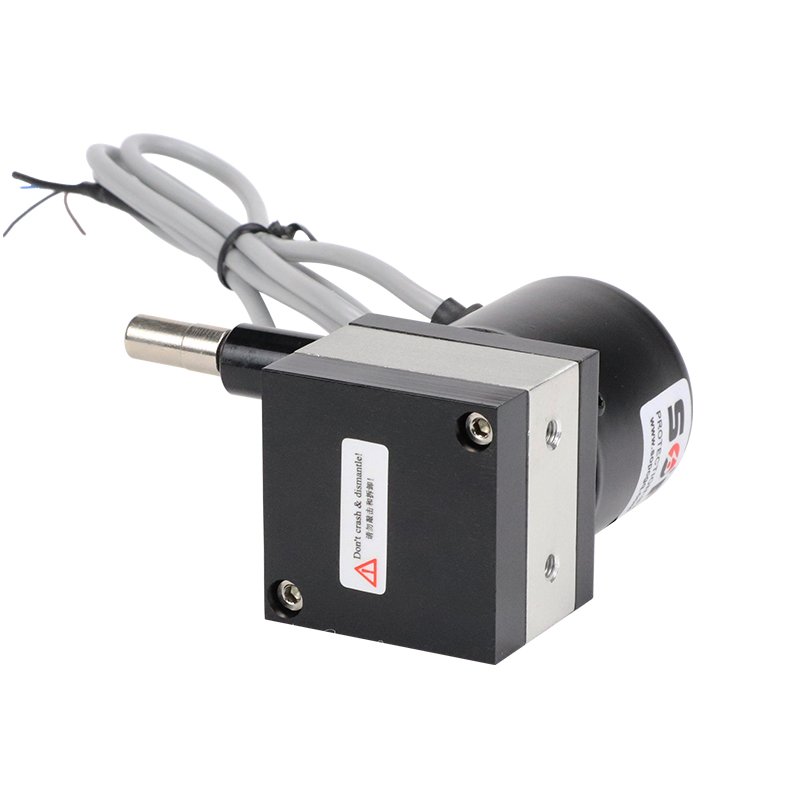

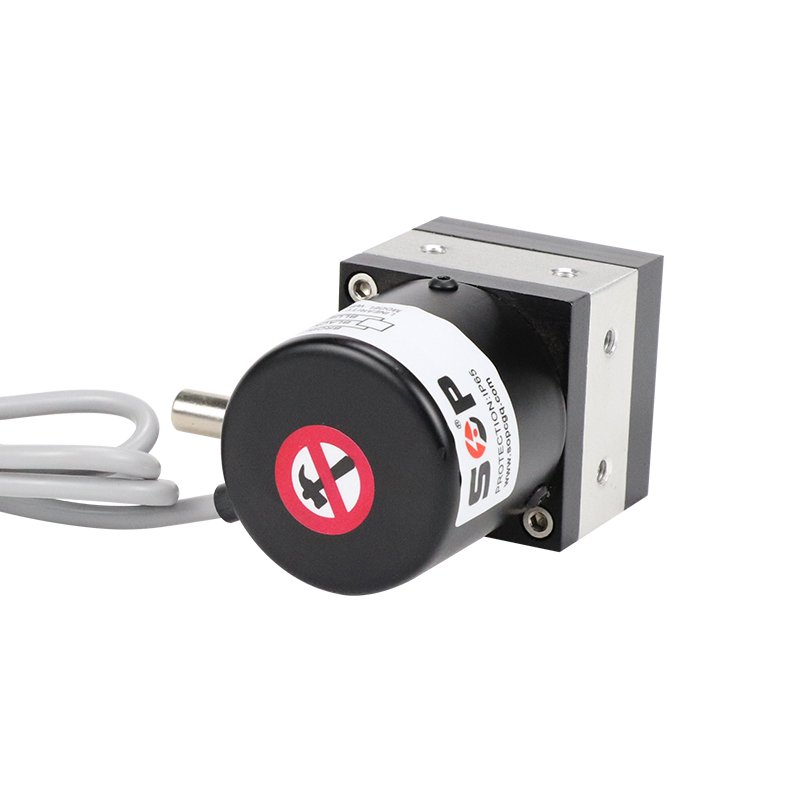

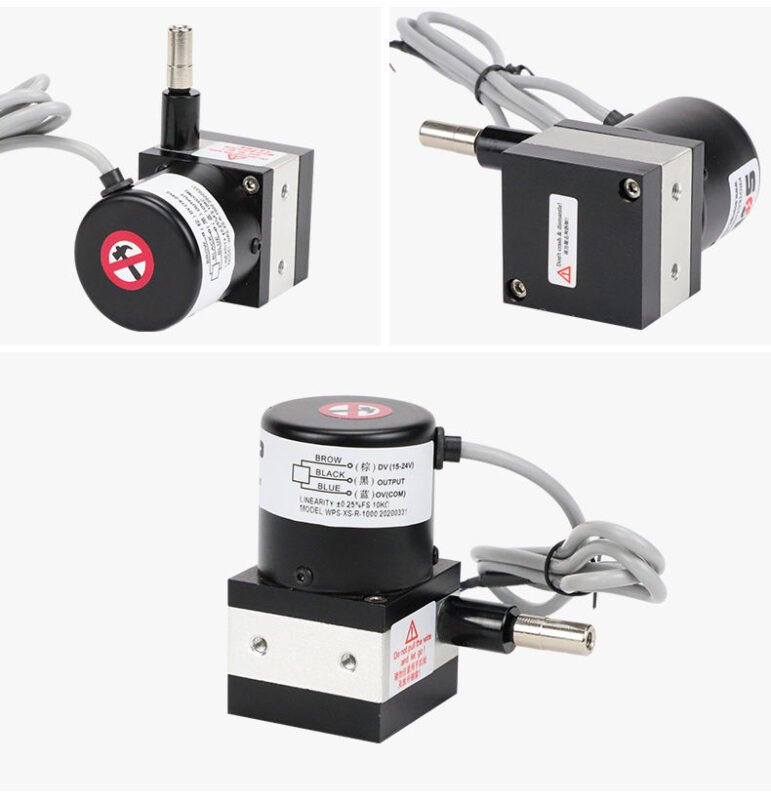

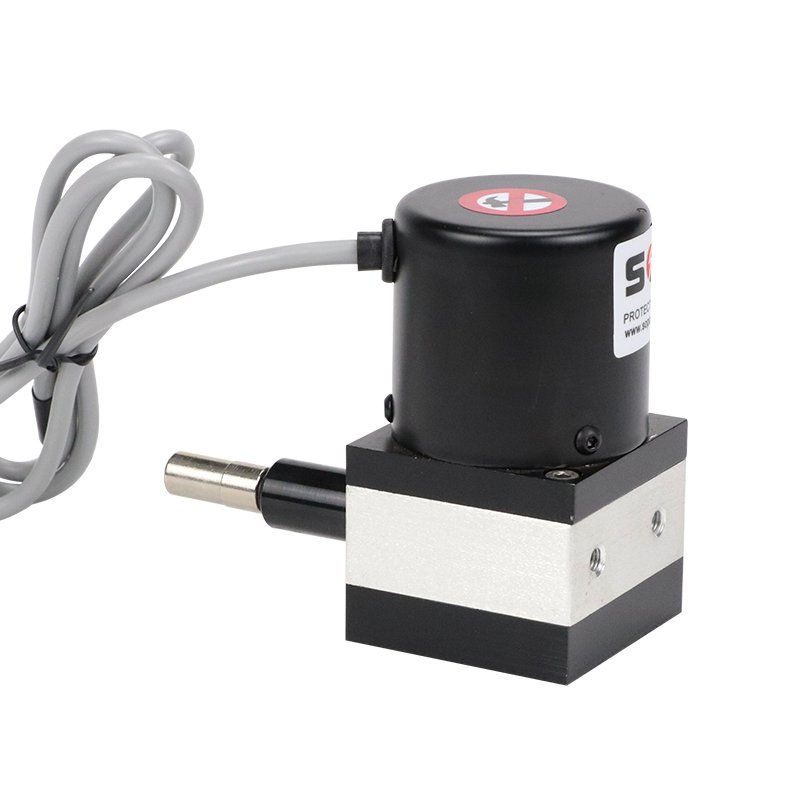

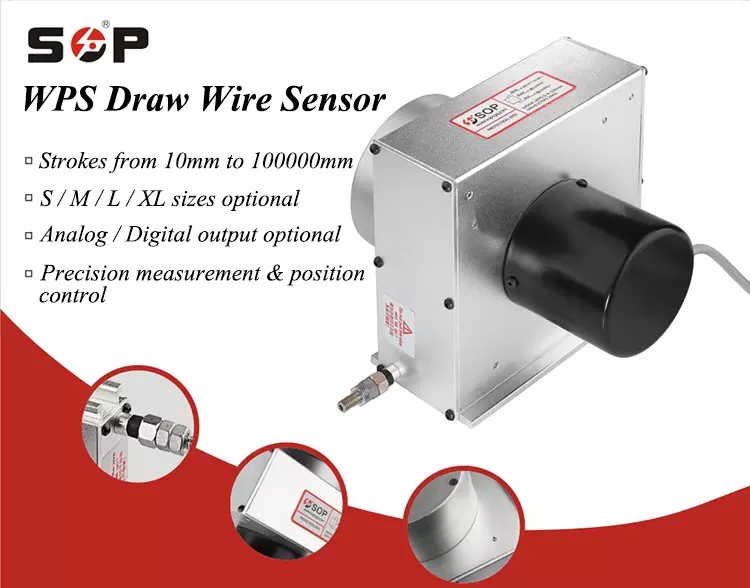

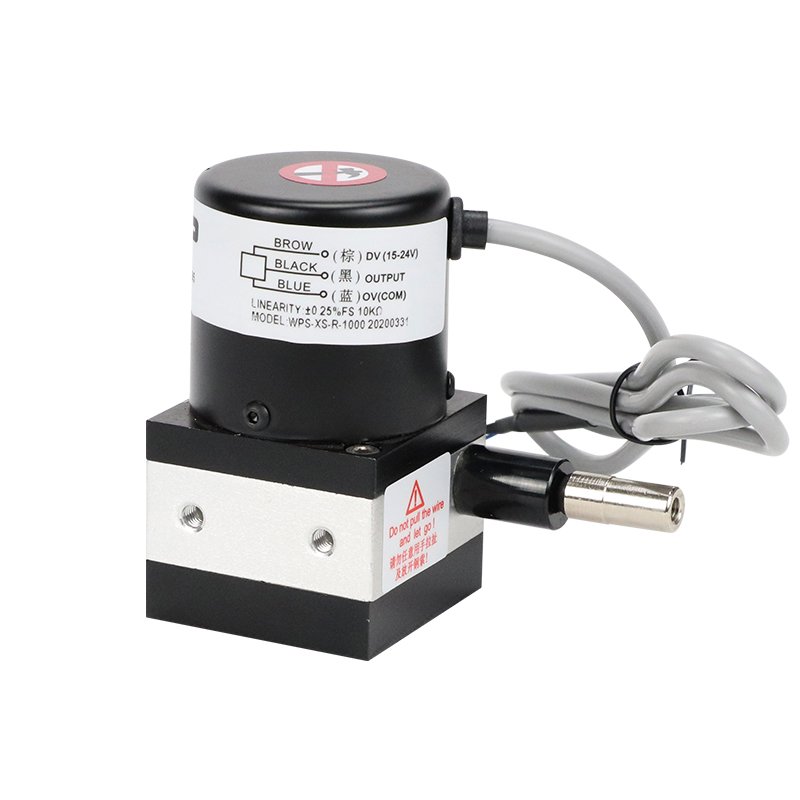

Draw wire sensor combines the advantages of angular sensor and linear displacement sensor, has a small mounting size, compact structure and high precision. The measuring range can be 1000mm/2500mm/5000mm or even 50000mm.
KTF Slide type position tracking sensor is designed for most common occasions, especially for the places where the direction of length is limited and self-align is difficult. It is a high precision linear position transducer with a long lasting conductive track.
1. Measurement range：0-1000mm

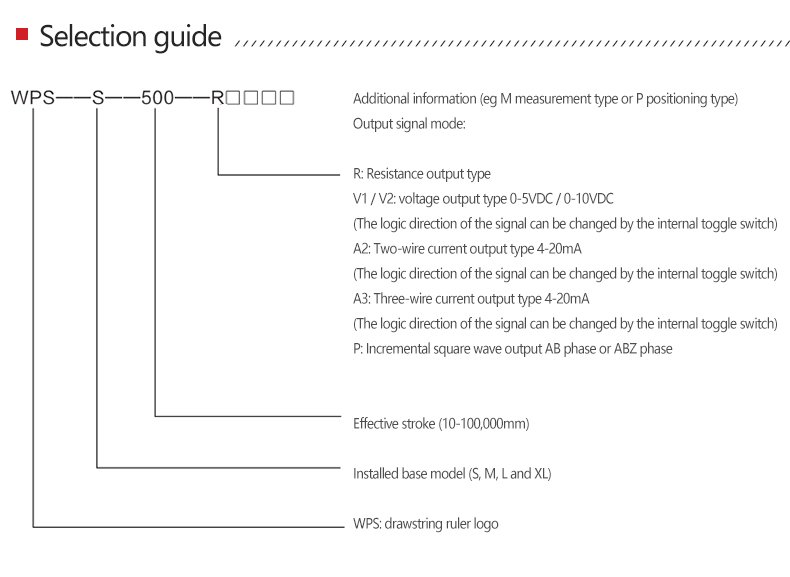

2. Output Signal: Resistance R, voltage (V1 /V2), current 4-20mA(A2/A3), RS485
3. Linearity : 0.1%F.S.
4. IP Degree: IP67
5. Shell Material: Aluminum alloy/metal
1. Travel 10-100000mm customiable
2. High stablitily,high accuracy,service life up to Five million times
3. Permissible Deviation 3, not exceeding 35mm
4. For every 1000mm,the linear accuracy can reach to 0.05%-0.08%
5. Protection Level IP65
KPM Series of linear potentiometer transducer are used to used to measure and track the linear motion or position of a target. They are designed to withstand the harsh environment of motorsport and automotive testing, structural and architectural testing, and robotics applications.
1. Travel 10-100000mm customiable
2. High stablitily,high accuracy,service life up to Five million times
3. Permissible Deviation 3, not exceeding 35mm
4. For every 1000mm,the linear accuracy can reach to 0.05%-0.08%
5. Protection Level IP65
KPM Series of linear potentiometer transducer are used to used to measure and track the linear motion or position of a target. They are designed to withstand the harsh environment of motorsport and automotive testing, structural and architectural testing, and robotics applications.
1. Measurement range：0-5000mm
2. Output Signal: Analog encoder, 4-20mA, Digital communication
3. Linearity : 0.05%
4. IP Degree: IP67
5. Shell Material: Aluminum alloy/metal
The miniature Linear potentiometer with Rod End Joints is used to measure and track the linear motion or position of a target. The mini articulated design is especially suitable for mounting in instruments or machines with limited space.
1. Measurement range：0-300mm
2. Output Signal: Resistance, current, voltage, RS485
3. Linearity : ±%0.05
4. IP Degree: IP65
5. Shell Material: Aluminum alloy/metal
KPM Series of linear potentiometer transducer are used to used to measure and track the linear motion or position of a target. They are designed to withstand the harsh environment of motorsport and automotive testing, structural and architectural testing, and robotics applications.
