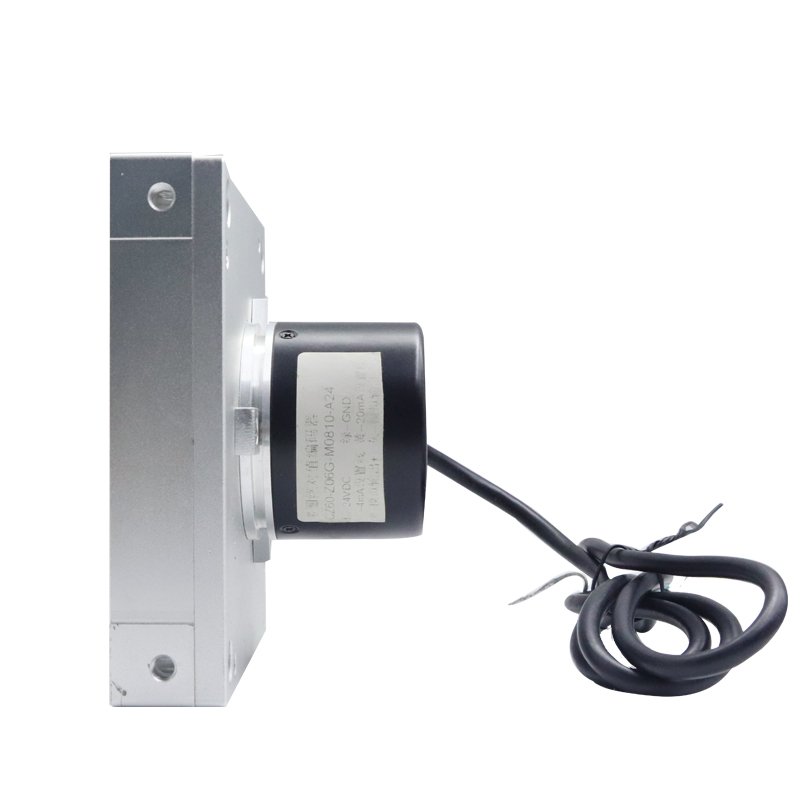

SOP / WPS-T-RS485 / Высокоточный настраиваемый датчик перемещения с тросовым приводом и возвратной пружиной для измерения длины до 5000 мм.

• Measuring range: up to 3000mm
• Measuring wheel circumference: 200mm
• Pulling speed: maximum 0.6m/s
• Pull rope tension: 5N
• Weight: <2KG
• Accuracy: +/-0.05%FS
• Power supply voltage: 10-30V DC, 5V DC
• Resolution 0.01, 0.02, 0.04, 0.08 mm / pulse
• Product Name: Cable Displacement Sensor CESI-M3000 Series
• Can be customized on request

• Measuring range: up to 1000mm
• Measuring wheel circumference: 100mm
• Pulling speed: maximum 0.6m/s
• Resolution: 0.01, 0.02, 0.04, 0.08 mm / pulse
• Accuracy: +/-0.05%FS
• Power supply voltage: 10-30V DC, 5V DC
• Pull rope tension: 3N
• Weight: <0.5KG
• Product Name: Cable Displacement Sensor CESI-S1000 Series
• Can be customized on request

1. Travel 10-100000mm customiable
2. High stablitily,high accuracy,service life up to Five million times
3. Permissible Deviation 3, not exceeding 35mm
4. For every 1000mm,the linear accuracy can reach to 0.05%-0.08%
5. Protection Level IP65

1. Measurement range：0-5000mm
2. Output Signal: Analog encoder, 4-20mA, Digital communication
3. Linearity : 0.05%
4. IP Degree: IP67
5. Shell Material: Aluminum alloy/metal

1. Travel 10-100000mm customiable
2. High stablitily,high accuracy,service life up to Five million times
3. Permissible Deviation 3, not exceeding 35mm
4. For every 1000mm,the linear accuracy can reach to 0.05%-0.08%
5. Protection Level IP65

• Measuring range: up to 8000mm
• Output signal: AB phase, ABZ phase
• Resolution: 0.01, 0.02, 0.04, 0.08mm / pulse
• Working voltage: 10-30V DC, 5V DC
• Accuracy: +/-0.05% (full scale), +/-1 pulse
• Measuring wheel circumference: 400mm
• Pulling speed: maximum 1m/s
• Pull rope tension: 5-10N
• Weight: <5KG
• Product Name: Cable Displacement Sensor CESI-L8000 Series
• Can be customized on request

1. Travel 10-100000mm customiable
2. High stablitily,high accuracy,service life up to Five million times
3. Permissible Deviation 3, not exceeding 35mm
4. For every 1000mm,the linear accuracy can reach to 0.05%-0.08%
5. Protection Level IP65

1. Travel 10-100000mm customiable
2. High stablitily,high accuracy,service life up to Five million times
3. Permissible Deviation 3, not exceeding 35mm
4. For every 1000mm,the linear accuracy can reach to 0.05%-0.08%
5. Protection Level IP65

1. Travel 10-100000mm customiable
2. High stablitily,high accuracy,service life up to Five million times
3. Permissible Deviation 3, not exceeding 35mm
4. For every 1000mm,the linear accuracy can reach to 0.05%-0.08%
5. Protection Level IP65

1. Measurement range：0-1000mm
2. Output Signal: Resistance R, voltage (V1 /V2), current 4-20mA(A2/A3), RS485
3. Linearity : 0.1%F.S.
4. IP Degree: IP67
5. Shell Material: Aluminum alloy/metal

• Measuring range: up to 1000mm
• Measuring wheel circumference: 100mm
• Pulling speed: maximum 0.6m/s
• Resolution: 0.01, 0.02, 0.04, 0.08 mm / pulse
• Accuracy: +/-0.05%FS
• Power supply voltage: 10-30V DC, 5V DC
• Pull rope tension: 3N
• Weight: <0.5KG
• Product Name: Cable Displacement Sensor CESI-S1000 Series
• Can be customized on request

1. Measurement range：0-1000mm
2. Output Signal: Resistance R, voltage (V1 /V2), current 4-20mA(A2/A3), RS485
3. Linearity : 0.1%F.S.
4. IP Degree: IP67
5. Shell Material: Aluminum alloy/metal
