WPS-ST80 Customizable 2000mm Length Measurement Analog Wire Rope Displacement Sensor
SOP pulling rod type linear position sensors with conductive plastic element are designed for the displacement or length measurement and are available in different stroke lengths up to 2000mm. The potentiometer displacement sensors give infinite resolution with repeatability of 0.01mm and outstanding linearity of 0.1%F.S. maximum.
1. 0-2000mm travel can be customized
2. Strong stability and high precision
3. Protection grade IP67
4.Multi-strand brass shielded signal wire,Long-distance transmission signal without attenuation
5.Imported potentiometer chip Signal stability and anti-interference
6.Imported steel wire rope, 50 million reciprocating tests Long life and good quality
7.Two-way lock traction head

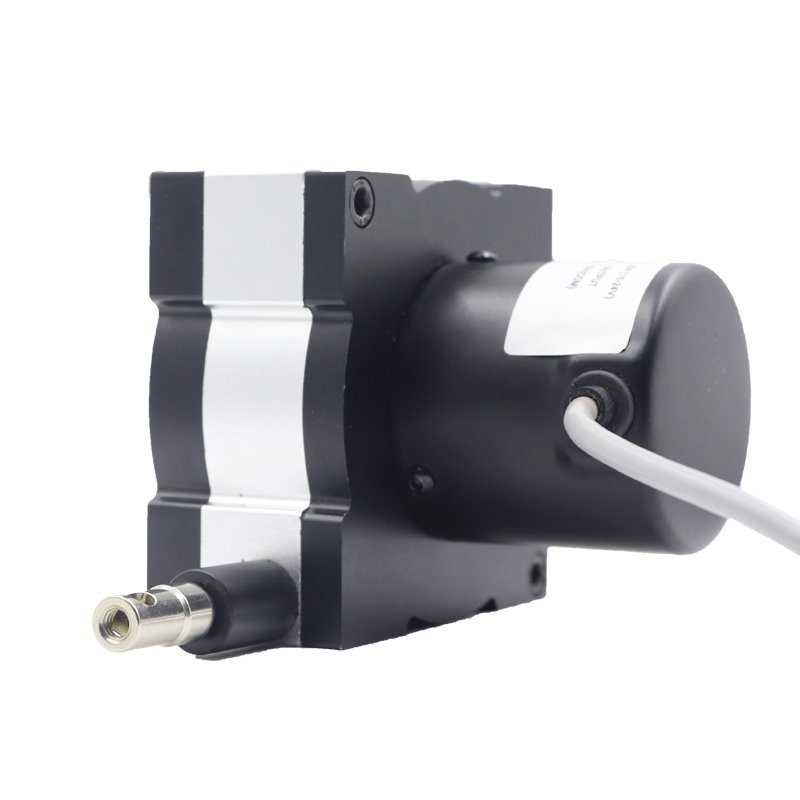

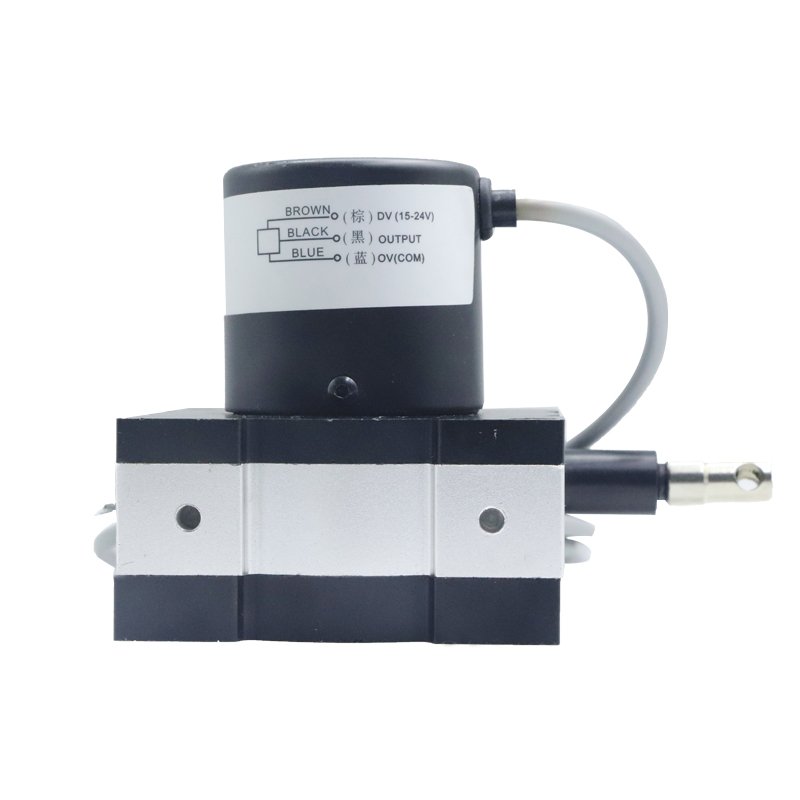

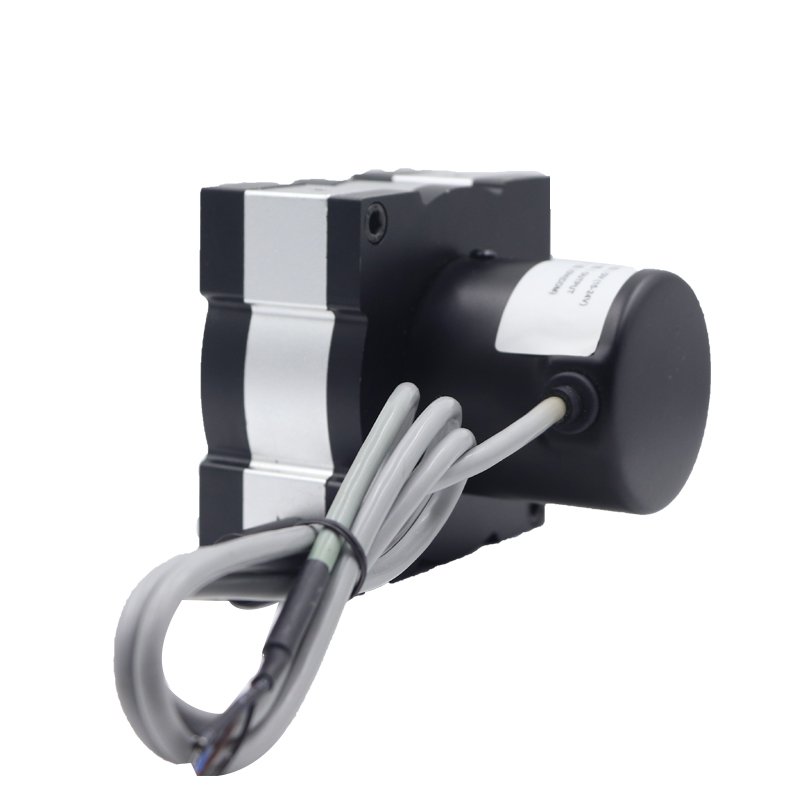

Product display
Product Details
Product parameters
| Product Model | WPS-ST80 |
| Output Signal | Resistance R, voltage (V1 /V2), current 4-20mA(A2/A3), RS485, pulse |
| Linearity | 0.1%F.S. |
| Measuring Stroke | 0-2000mm |
| Wire Rope Diameter | 0.5(5m range), 0.6 (other range) ,0.7(3m range) |
| Shell Material | Aluminum alloy/metal |
| IP Degree | IP67 |
Product Size
Industrial Applications
