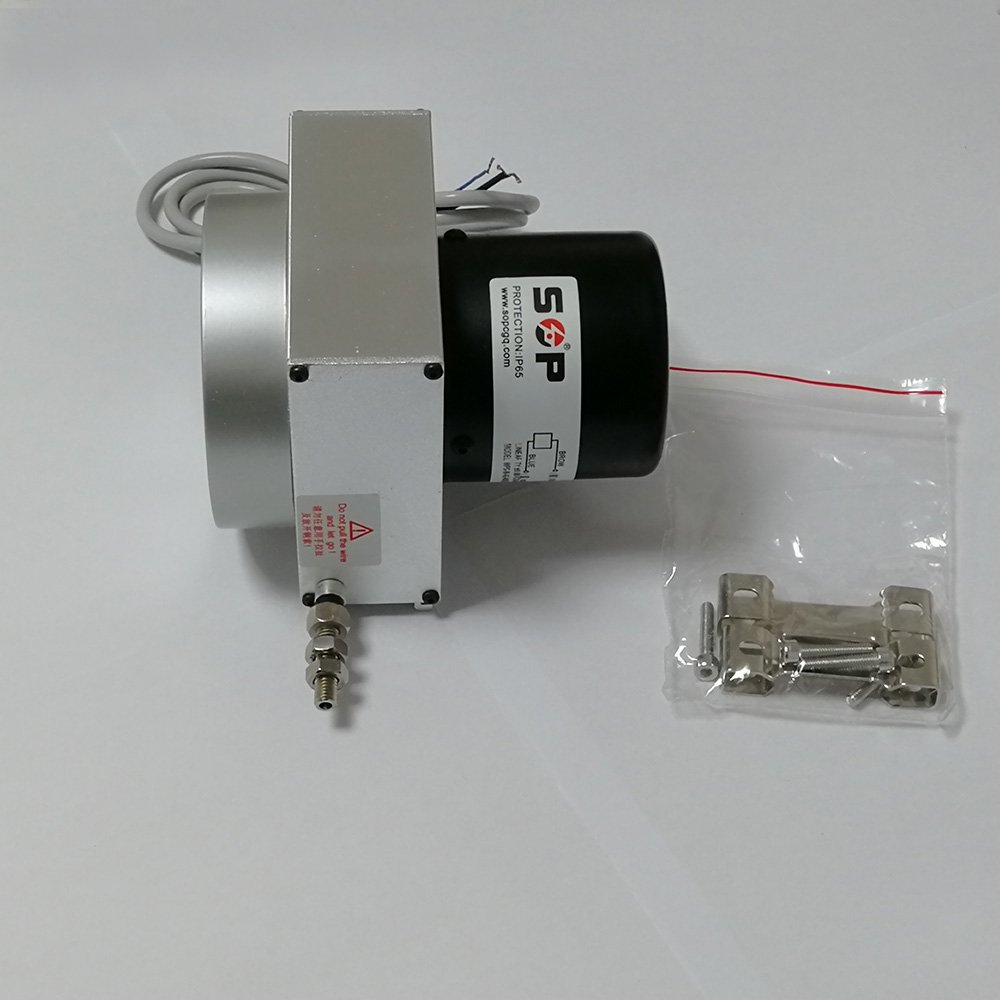

WPS-M 0-7000mm Linear Draw Wire Encoder String Potentiometer
1)Our advantage
- We are one of the top 3 manufacturers of position sensors in China
- 24hours online customer service
- we have 11years production experience
- Our parts use imported products for long life and durability
2)About product
The draw wire sensor is a compact integration of the linear displacement sensor. It combines the advantages of angular displacement sensor, linear displacement sensor and gear and strip transmission. It is compact, versatile, easy to install and small in installation size. No need to compensate for gaps, sensors with high precision measurement, high repeatability measurement and high positioning accuracy, long stroke and long life.
The draw wire sensor, also known as draw wire encoder, or string potentiometer, or cable extension transducer, or rope encoder etc.
If you need more details please contact us!
Product Paramenters
|
Size |
M |
|
Theory |
Potentiometer |
|
Output signal |
Resistance,4-20mA,0-5V/0-10V,Pluse |
|
Operating Voltage |
24V |
|
Stroke |
0-7000 |
|
Precision grade |
M(Standard measurement level) |
|
Linearity |
±0.05%FS — 0.08%FS |
|
Repeatability |
0.005%-0.01% |
|
Temperature range |
-30 — 80℃ |
|
Pull |
500±50g |
|
Rope Diameter |
0.8mm |
|
Model |
A2/A3,V2/V3,R,P |
|
Protection class |
IP65 |
|
Max Mass |
≈2800 |
|
Remark |
>3600P |
Function
The draw wire sensor is suitable for accurate measurement and positioning control. Equipped with digital indicator, it can also be used as measurement tool for manual measuring.
WPS series position sensor is widely used in storage positioning, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machines, horizontal control equipment, construction machines, industrial robot, injection machines, woodworking machinery, elevators, air compressors, hydraulic machines, X-Y axis displacement, liquid level measurements and position control.
