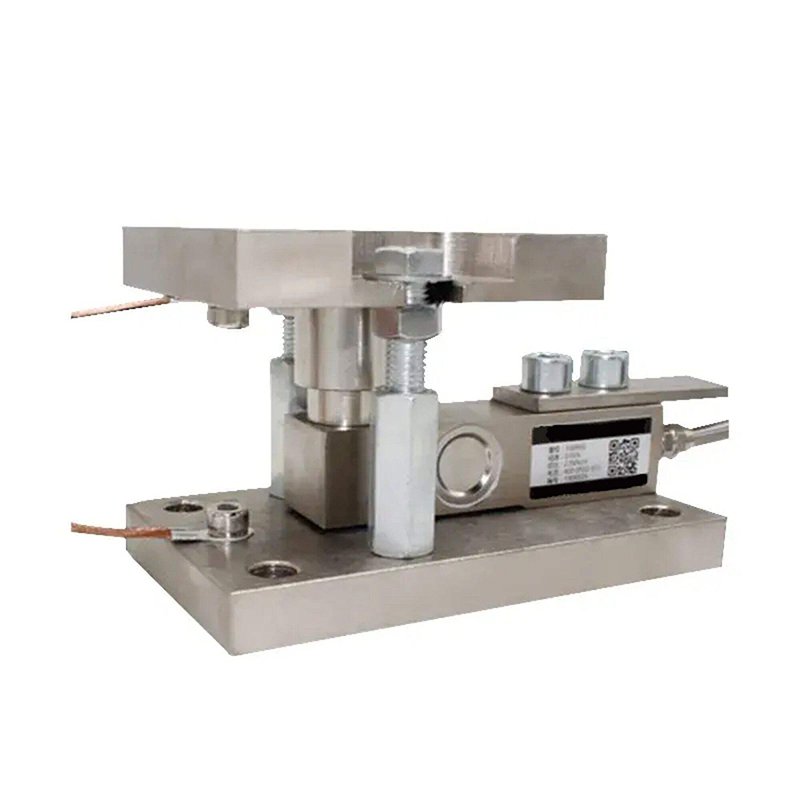

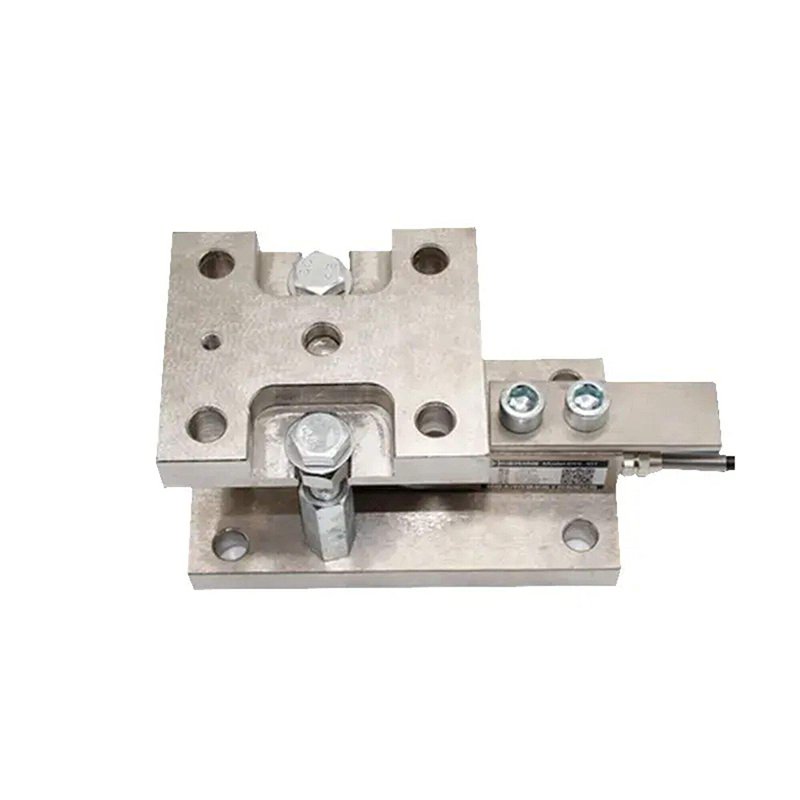

SOPMK-007 Customizable 10T High Accuracy Linear Cantilever Beam Weighing Module for Silo Scale
Product Features
1.High accuracy and simple installation
2.Stainless steel construction
3.Good long-term stability and high comprehensive precision
4.Calibration in mV/V Low profile design
5.It is composed of two boards, the top plate, the base plate, the sensor, the support column, and the support bolt. The characteristic of the weighing module is that it is not limited by the site. Generally, the hopper scale is three or four corners, or on both sides of the tank container, and does not occupy an area.
6.Weighing modules are generally used in weighing applications for large material tanks, material bin scales, reaction vessels, hoppers, and vertical tanks.
Product Parameters
| Parameters Table | |||
| Capacity | 0-10T | Material | Stainless steel |
| Output Sensitivity | 2.0±0.002mV/V | Impedance | 350Ω |
| Zero Output | ±1%F.S. | Insulation Resistance | ≥2000MΩ/100VDC |
| Non-Linearity | 0.03%F.S. | Operating Voltage | 5-15V |
| Hysteresis | 0.03%F.S. | Operating Temperature Range | -20-80℃ |
| Repeatability | 0.03%F.S. | Safe Overload | 150% |
| Creep(30min) | 0.03%F.S. | Ultimate Overload | 200% |
| Temp Effect on Output | 0.03%F.S./10℃ | Cable Specifications | φ5x3m |
| Temp Effect on Zero | 0.03%F.S./10℃ | Cable Ultimate Pull | 10kg |
| Response Frequency | 10kHz | TEDS | |
External Dimensions
Product Details
Industrial Application
