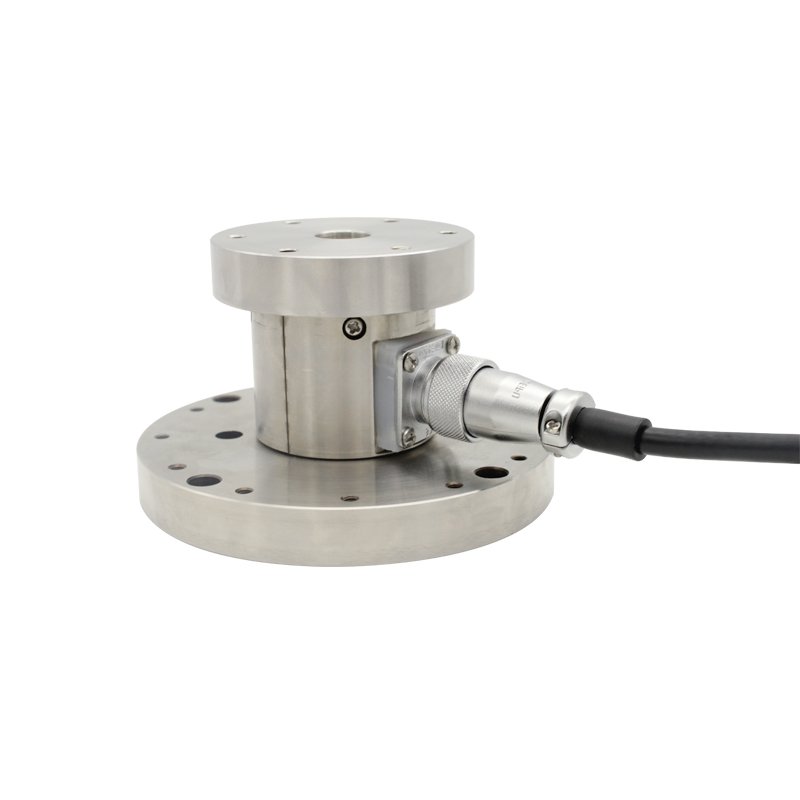

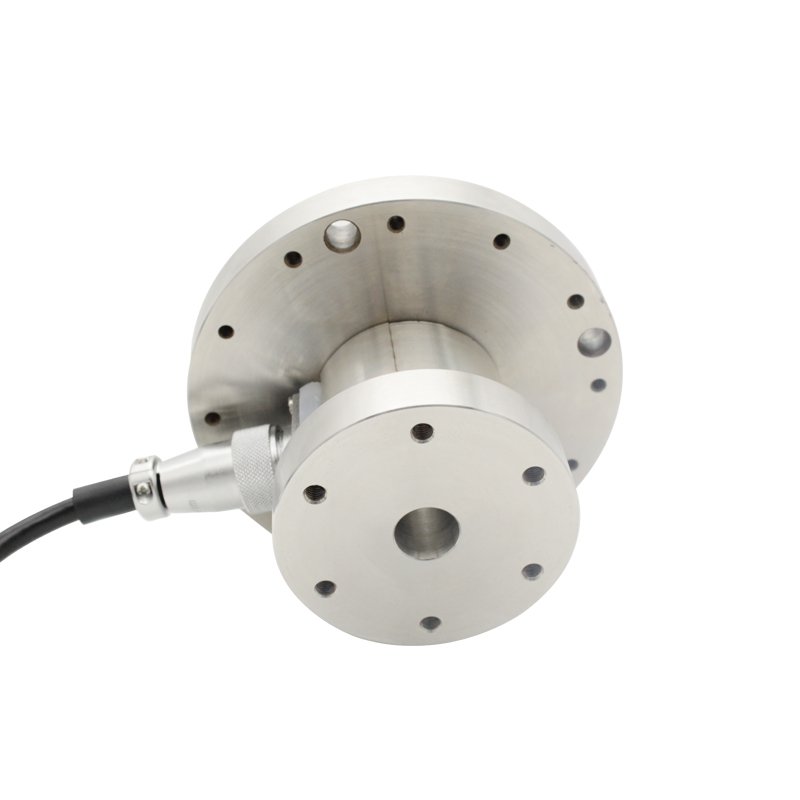

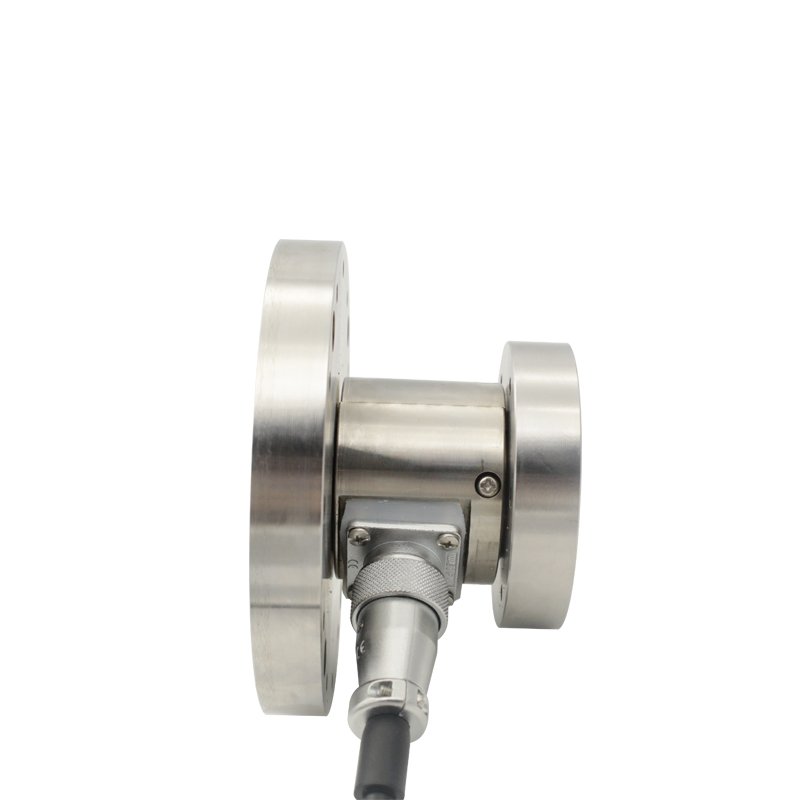

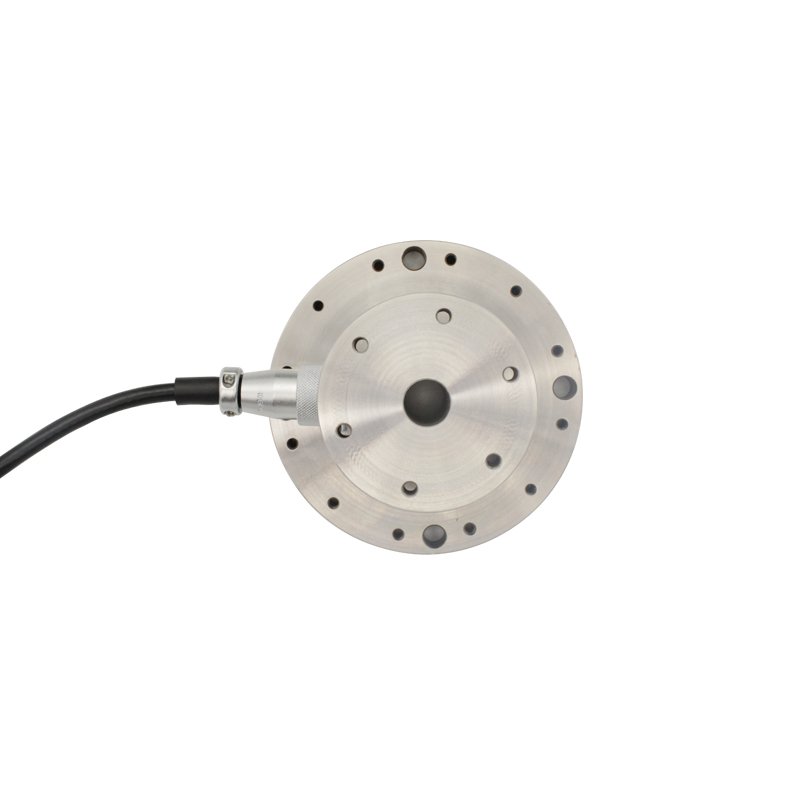

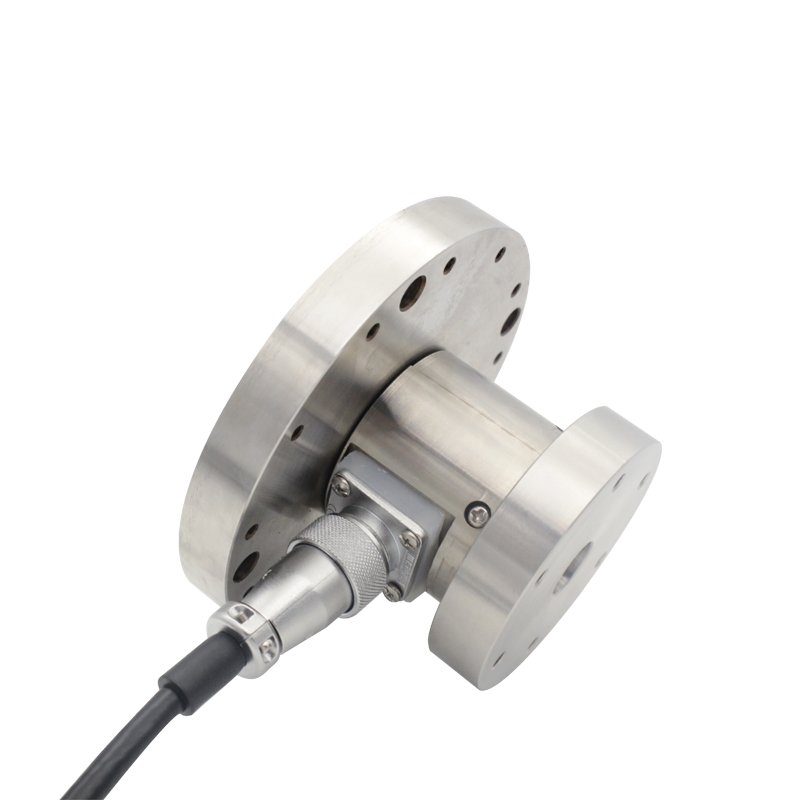

SOP / SOPJN-105/ Датчики статического крутящего момента с возможностью выдачи сигналов напряжения и тока для испытательных и рулевых машин.

The ZMNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJ can be used in both clockwise and counterclockwise direction ranging from 1Nm up to 200Nm. The sensor is used in static and non-rotating torsion measure applications.

Nickel plated alloy steel

• Range: 0-150N.m
• Sensitivity: 2.0mV/V
• Nonlinear Accuracy 0.05% F.S.
• Repeatability 0.05% F.S.
• Material: Aluminum Alloy/Alloy Steel Nickel Plated
• Force measurement direction: rotational force
• Product name: Static torque sensor DYJN-104 series
• Can be customized on request

For static, non-continuous torque measurement

The ZHKY2051 is a compact high capacity slip ring type torque sensor ideal for a wide range of torque applications. Its size is larger than ZHKY2050 torque sensors, however, it offers a broad capacity range in the same form factor with mounting plate. This sensor is built with a stainless steel shaft and aluminum body and so that it can handle a maximum of up to 500N·m at 8000RPM.

ZHKY2051은 다양한 토크 어플리케이션에 적합한 소형 고용량 슬립링 타입 토크 센서입니다. ZHKY2050 토크 센서보다 크기가 크지만, 장착 플레이트를 포함하여 동일한 폼팩터에서 광범위한 용량 범위를 제공합니다. 이 센서는 스테인리스 스틸 샤프트와 알루미늄 바디로 제작되어 8000RPM에서 최대 500N·m의 토크를 견딜 수 있습니다.

For static, non-continuous torque measurement

The ZHKY2050 is a compact non-contact type torque sensor ideal for low torque applications with maximum of only 5N·m. The ZHKY2050 can still handle up to 8000RPM so it is for systems that require high speed.

0.1-500N.m IP66 dynamic torque sensor FA604 is a model of our brand FIBOS FA6-Series, it belongs to torque sensor, FA604 can be used to measure torque force 0.1N.m, 0.2N.m, 0.3N.m, 0.5N.m, 1N.m, 2N.m, 3N.m, 5N.m, 10N.m, 20N.m, 30N.m, 50N.m, 100N.m, 200N.m, 300N.m and 500N.m capacity, its Creep(30min) and Repeatability both same ≤0.1%F.S., its Non-linearity and Hysteresis both ≤0.2%F.S..

5-500N.M IP66 Dynamic Torque Sensor Force Torque Sensor FA603 is a model of our brand FIBOS FA6-Series, Dynamic Torque Sensor Force Torque Sensor FA603 can be used to measure dynamic torque force ranges from 5N.m,10N.m,20N.m,50N.m,100N.m,200N.m and 500N.m capacity, its Rated output range is 1.0~1.5mV/V, its Zero Balance range is ±0.01mV/V.

• Range: 0-3000N.m
• Sensitivity: 1.0-2.0mV/V
• Nonlinear Accuracy 0.3% F.S.
• Repeatability 0.1% F.S.Material: Alloy Steel Nickel Plated
• Force measurement direction: rotational force
• Product name: Static torque sensor DYJN-103 series
• Can be customized on request

1,2,3,5,10,20,30,50,100,200Nm Or Customized Dynamic Torque Sensor FA607B is a model of our brand FIBOS FA6-Series, FA607B belongs to FA607 which is from Torque Force Sensor, it can be used to measure Torque Force 1N.m, 2N.m, 3N.m, 5N.m, 10N.m, 20N.m, 30N.m, 50N.m, 100N.m, 200N.m or customized capacity, its Creep(30min) and Repeatability both same ≤0.1%F.S. or can be customized, its Non-linearity and Hysteresis both same ≤0.2%F.S. or also can be customized.

100,200,1000,2000,3000N.m Or Customized Static Torque Sensor Force Torque Sensor FA625B belongs to FA625 which belongs to Static Torque Sensor of Force Torque Sensor category, FA625B can be used to measure Static Torque force 100N.m,200N.m,1000N.m,2000N.m and 3000N.m or customized capacity, its Cable size is ⌀6x4500mm or can be customized.

Suitable for dynamic, bearing, torque wrench and other testers
