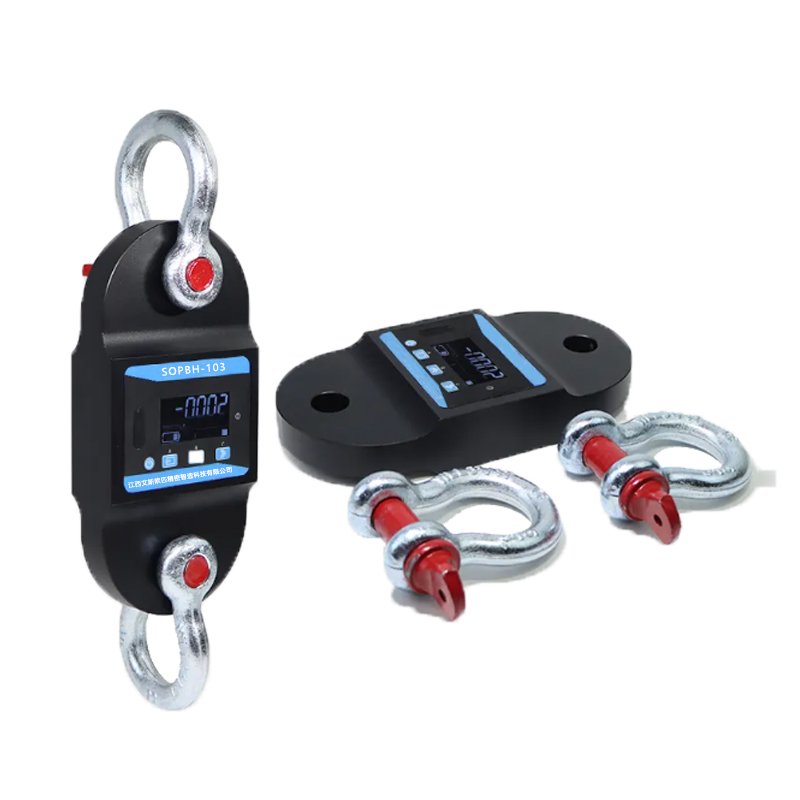

SOPBH-103 Digital Dynamometer Load Cell 10T 12T 15T Wireless Board Ring Dynamometer for Industrial Weight Measure
Product description
1.Using 3200mAh lithium battery for power supply, the working time of the system is about 20 hours under the condition of 3Hz communication, and the charging time is within 6 hours.
2.The sampling rate is 80Hz, the sampling accuracy is better than 0.1%, and the sampling linearity is better than 0.1%.
3.Wireless communication distance in open area is ≥ 100 m.
4.It can work normally in the range of -25 to 50℃

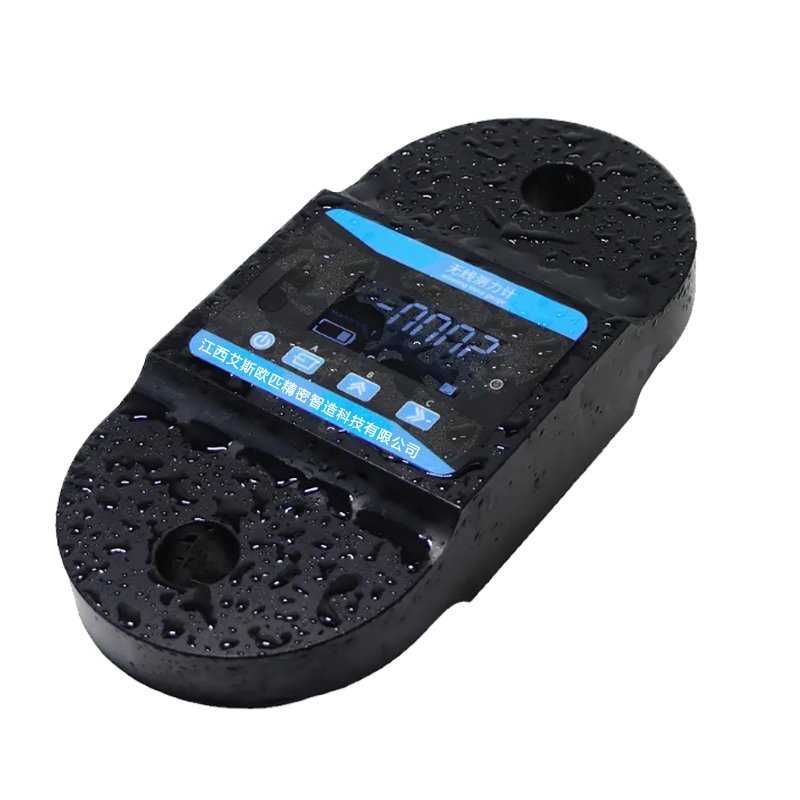

5.The overall protection level is IP65.

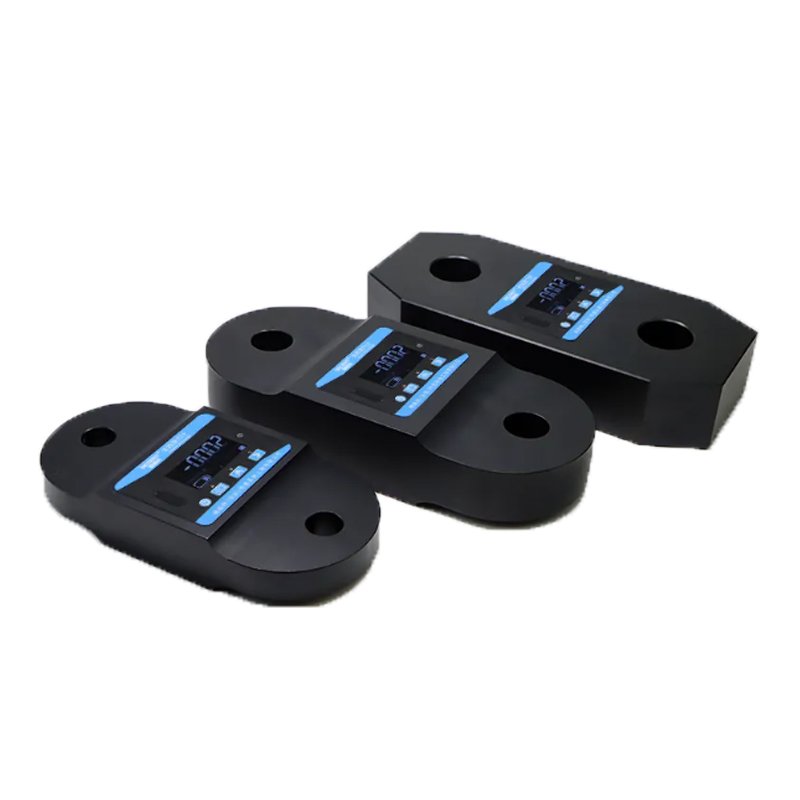

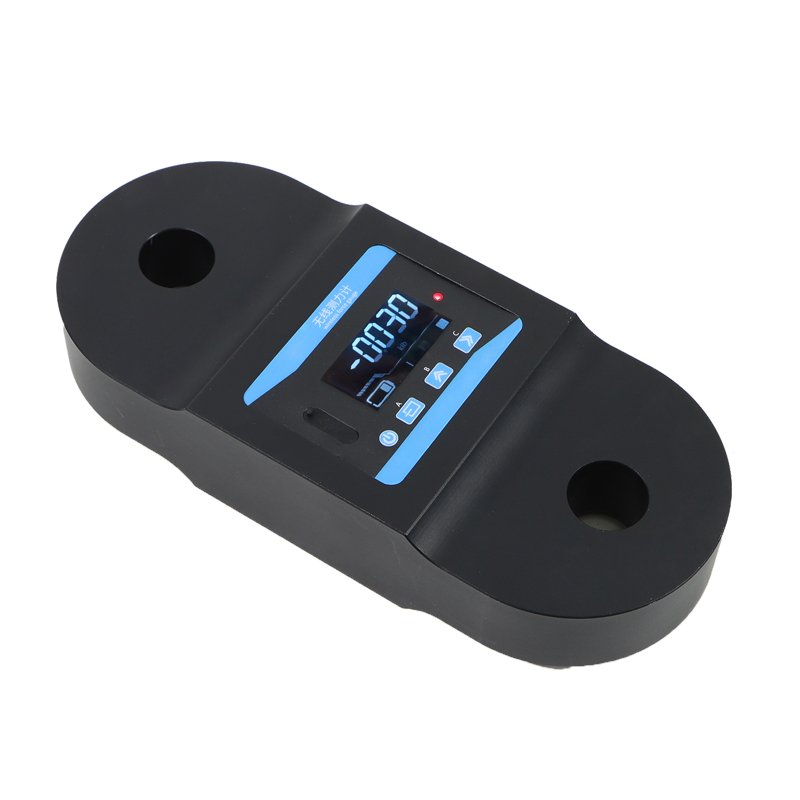

Detail picture
Product parameters
| Range | 100T | Material | Alloy steel |
| Output sensitivity | 2.0±0.05mV/V | Impedance | 350Ω |
| Zero output | ±1%F.S. | Insulation resistance | ≥5000MΩ/100VDC |
| Non-linear | 0.3%F.S. | Operating voltage | 5-15v |
| Hysteresis | 0.3%F.S. | Operating temperature range | -20-60℃ |
| Repeatability | 0.1F.S. | Safety overload | 150% |
| Creep (30 minutes) | 0.1%F.S. | Ultimate overload | 300% |
| Temperature sensitivity drift | 0.05%F.S./10℃ | Wireless transmission distance | 200m (unobstructed) |
| Zero temperature drift | 0.05%F.S./10℃ | Endurance | 6 hours |
| Response frequency | 10kHz | ||
Product size
Product packaging
