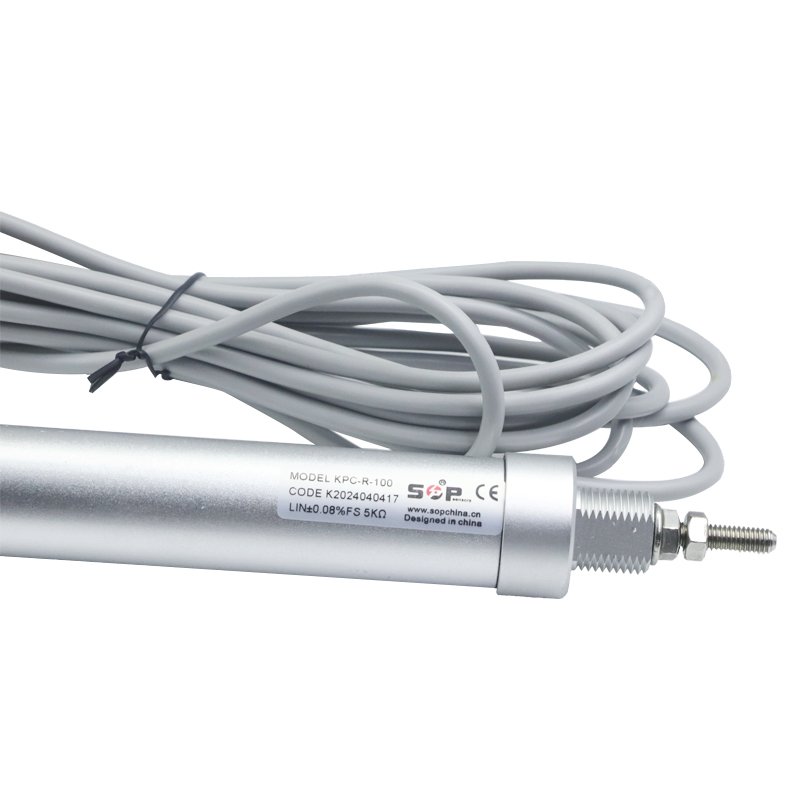

KPC Linear Position Potentiometer Displacement Sensor
SOP pulling rod type linear position sensors with conductive plastic element are designed for the displacement or length measurement and are available in different stroke lengths up to 300mm. The potentiometer displacement sensors give infinite resolution with repeatability of 0.01mm and outstanding linearity of 0.05% maximum.
Product Features
Shell Material：Aluminum alloy/metal
Resolution Rate：Infinitesimal
Linearity ：±%0.05
IP Degree：IP68
Working Temperature：-40℃/+80℃
Displacement Speed：< 5m/s
Product parameters
| Product Model | KPC |
| Output Signal | Resistance :5k; Current :4-20mA; Voltage : 0-5V/0-10V; Digital RS485 |
| Linearity | ±%0.05 |
| Measuring Stroke | 0-300mm |
| Shell Material | Aluminum alloy/metal |
| IP Degree | IP68 |
| Resolution Rate | Infinitesimal |
| Repetitive Accuracy | 0.01mm |
| Displacement Speed | < 5m/s |
| Rod Diameter | φ6mm |
| Shell Size | φ28mm |
| Working Temperature | -40℃/+80℃ |
| Mechanical Installation | 1.Fisheye installation at both ends; 2.Threaded installation of flanges at both ends |
Product Size
Industrial Applications
