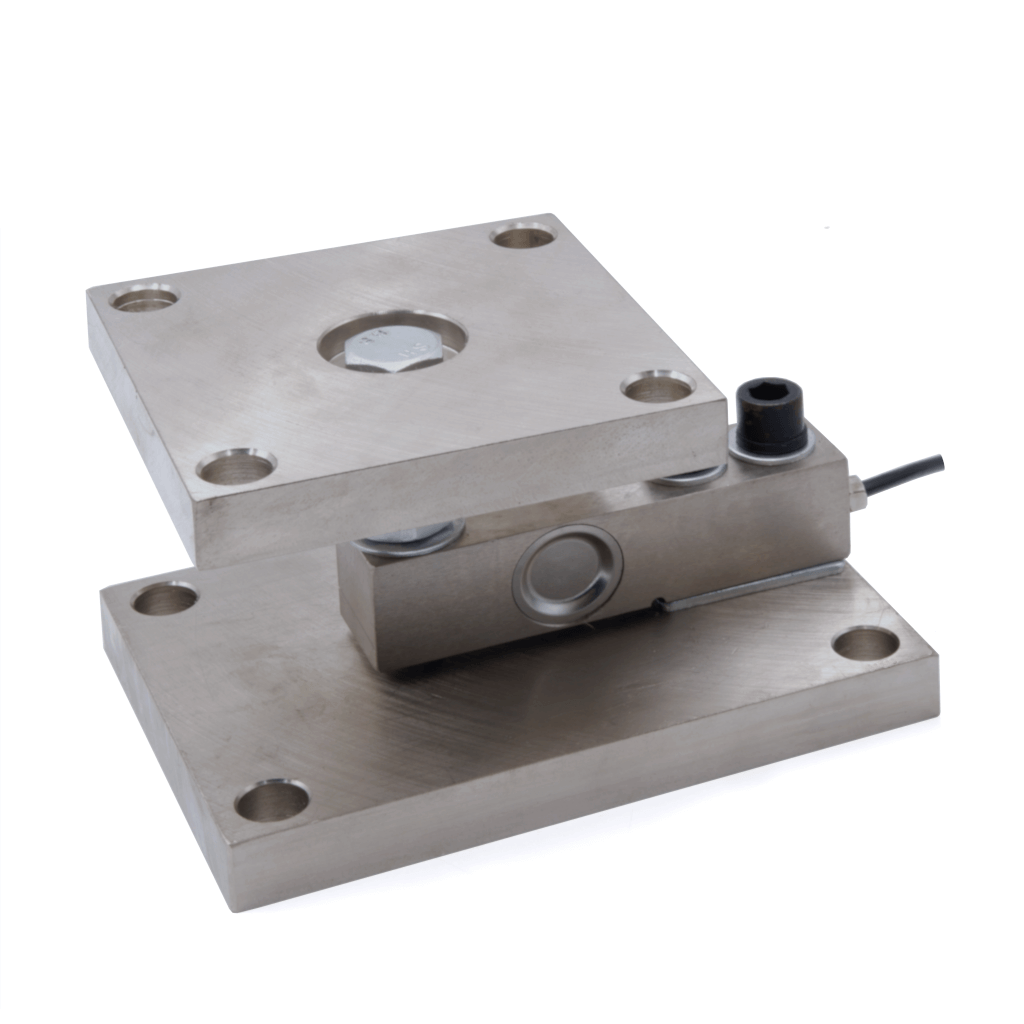

Features
- Available capacity: 0.05T – 10T
- Alloy steel construction
Sizes and mounting holes vary depending on the capacity, see datasheet for more details.
Applications
- Platform scales
- Silo or Tank scales
- Hopper scales
Dimensions
Specifications
| Capacity | 0.05T-10T |
| Rated output | 3.0±0.04mV/V |
| Accuracy class | 0.05% F·S (Standard)
0.03% F·S (Optional) |
| Combined error | ≤± 0.030 %RO |
| Creep | 0.02 %RO/30min |
| Temp. effect on sensitivity | 0.0016%RO/℃ |
| Temp. effect on zero | 0.003%RO/℃ |
| Zero balance | ±1.0 %RO |
| Input resistance | 365± 10 ohm |
| Output resistance | 350±3 ohm |
| Insulation resistance | ≥5000 MΩ(50V) |
| Excitation voltage | 5~12VDC |
| Compensated temp. range | -10~+40℃ |
| Operating temp. range | -35~+80 ℃ |
| Safe overload | 150 %RO |
| Ultimate overload | 200%RO |
| Load cell material | Alloy steel (Standard)
Stainless steel (Optional) |
| Connecting cable | 0.25-3TΦ5.7 x 3.5m 5-10TΦ5.7 x6m |
