Sensorcon / SC602 / 싱글 포인트 로드셀

LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAQ-A load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAQ-A load cells can be used to measure loads range from 4kg to 30kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
LAQ-A load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and packing machinerys.

LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAP-B7C load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAP-B7C load cells can be used to measure loads range from 3kg to 20kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAP-B7C load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and packing machinerys.

LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAC-A9 load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAC-A9 load cells can be used to measure loads range from 1kg to 2kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAC-A9 load cells are mainly used for electronic balance,counting scales,weighing scales,retail scales,jewellery scales,kitchen scales,coffee machine and packing machine.

LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAK-H1 load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAK-H1 load cells can be used to measure loads range from 0.3kg to 3kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAK-H1 load cells are mainly used for electronic balances,counting scales,jewellery scales and retail scales.

5,10,20,50,80,100kg Or Customized Single Point Weight Sensor FA537 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA537 can be used to measure weight ranges from 5kg,10kg,20kg,50kg,80kg up to 100kg or could be customized capacity, its Creep(30min) and Repeatability both ≤0.18%F.S. or could be customized, and its Non-linearity and Hysteresis both ≤0.2%F.S. or customized.

LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAK-E load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAK-E load cells can be used to measure loads range from 0.3kg to 3kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAK-E load cells are mainly used for electronic balances,counting scales,jewellery scales and retail scales.

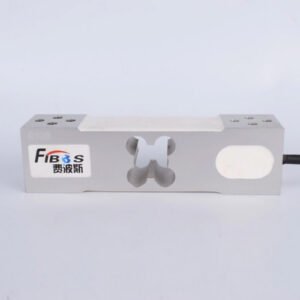

20,50,100,200,300,400,500kg Or Customized Single Point Weight Sensor FA524 is a customizable model of our brand FIBOS FA5-Series, Single Point Weight Sensor can be used to measure 20kg,50kg,100kg,200kg,300kg,400kg and 500kg or customized capacity, its Zero balance range is ±1.5%F.S. or customized, its Creep(30min) and Non-linearity both ≤0.19%F.S. or can be customized, its Hysteresis and Repeatability both ≤0.2%F.S. or also can be customized.

1. Stainless steel A304, laser welded and sealed
2. Protection grade: IP68, IP69K, applicable to harsh environment
3. Explosion-proof grade: Ex ia IIC T4 Ga; Ex iaD 20 T1354. Suitable for stainless steel waterproof scales and process weighing in chemical, food, and pharmaceutical industries

FA5-Series, Single Point Load Cell FA568 can be used to measure weight 50kg,100kg,200kg,300kg,500kh,1000kg, or customized capacity, its material we use Stainless steel, and we can also customize material.

LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAQ-C load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAQ-C load cells can be used to measure loads range from 200kg to 2000kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
LAQ-C load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales, bench scale, platform scales and packing machinerys.

100,200,500kg Or Customized Single Point Weight Sensor FA559 is a model of our brand FIBOS FA5-Series, it belongs to Single Point Weight Sensor category. FA559 can be used to measure 100kg,200kg and 500kg or customized capacity, its Creep(30min),Non-linearity and Repeatability all ≤0.2%F.S. or can be customized, its Hysteresis ≤0.3%F.S. or also can be customized.

300kg IP68 Alloy Steel Single Point Weight Sensor FA910 is a model of our brand FIBOS FA9-Series, Single Point Weight Sensor FA910 can be used to measure weight 300kg capacity, its Rated output range is 2.0±0.2%mV/V, its Zero Balance range ≤1%F.S., its Creep(30min),Non-linearity and Hysteresis all ≤0.3%F.S. and its Repeatability ≤0.1%F.S..

LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAB-I3 load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAB-I3 load cells can be used to measure loads range from 20kg to 100kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
LAB-I3 load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and bench scale.
