Products Description

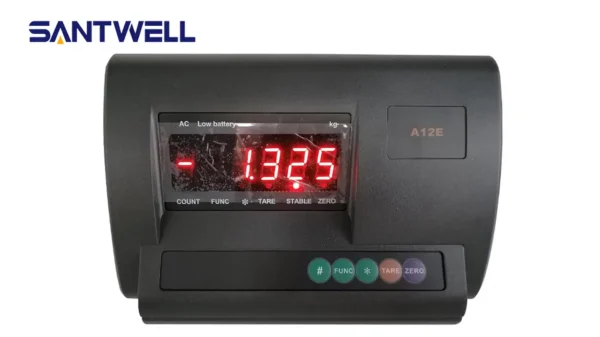

| Model: | XK319A12E |
| Input signal range: | -10mV~15mV |
| Input sensitivity: | 1V/e |
| Load cell Excitation:Dc 5V: | /150mA |
| Max. load cell connection: | 4 at 350 ohm |
| Display: | 6 bits LCD, 6 status indications/6 bits LED, 6 status indication |
| Optional interface: | RS232C serial communication |
| Transmission distance: | RS232C30 meters |
Introduction:
— Fast speed, high precision A/D conversion — Anti-vibration software — Applied in platform scale, floor scale, weighing system equipped with 1-4 load cell.
Features:
— A/D conversion with readability 1/30000
— Use inner code to replace weight observing and analysis tolerance
— Software to strength anti-vibration ability
— Zero-tracking, Zero range setup (auto/manual)
— Setup digital filter intensity, range and stable time
— Counting function with unit data save protection in case of power off
— Alarm for low battery and auto power off when low battery
— Optional function:
1. KG/LB switch function
2. Animal scale function (A12, A12S only)
3. Two fixed- value outputs function with TTL output
